4.5V-60V Vin, 0.6A, High Efficiency Step-down DCDC Converter, SCT2600Q Replace LMR16006YQ.
SCT2600Q
SCT2600Q.pdf
SCT2600Q.pdfFEATURES
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C3
• Wide Input Range: 4.5V-60V
• Continuous Output Current: 0.6A
• 0.765V ±2.5% Feedback Reference Voltage
• Integrated 500mΩ High-Side
• Low Quiescent Current: 80uA
• Pulse Skipping Mode (PSM) in light load
• 80ns Minimum On-time
• 6ms Internal Soft-start Time
• Internal compensation
• Switching Frequency 2.1MHz
• Low Dropout Mode Operation
• Over-voltage and Over-Temperature Protection
• Available in an TSOT23-6L Package
PIN CONFIGUTION
CROSS
FEATURES
• LMR16006Y-Q1 is an Automotive Grade Product
that is a AEC-Q100 Grade 1 Qualified (-40°C to
+125°C Operating Junction Temperature)
• Input Voltage Range 4 V to 40 V with Transient
Up to 65 V
• Output Current up to 600 mA
• 2.1 MHz Switching Frequency
• Ultra Low 28 µA Standby Current in ECO Mode
• 1 µA Shutdown Current
• High Duty Cycle Operation Supported
• ADJ, Fixed 3.3 V and Fixed 5 V Output Option
• Internal Compensation
• High Voltage Enable Input
• Internal Soft Start
• Over Current Protection
• Over Temperature Protection
• Small Overall Solution Size (SOT-6L Package)

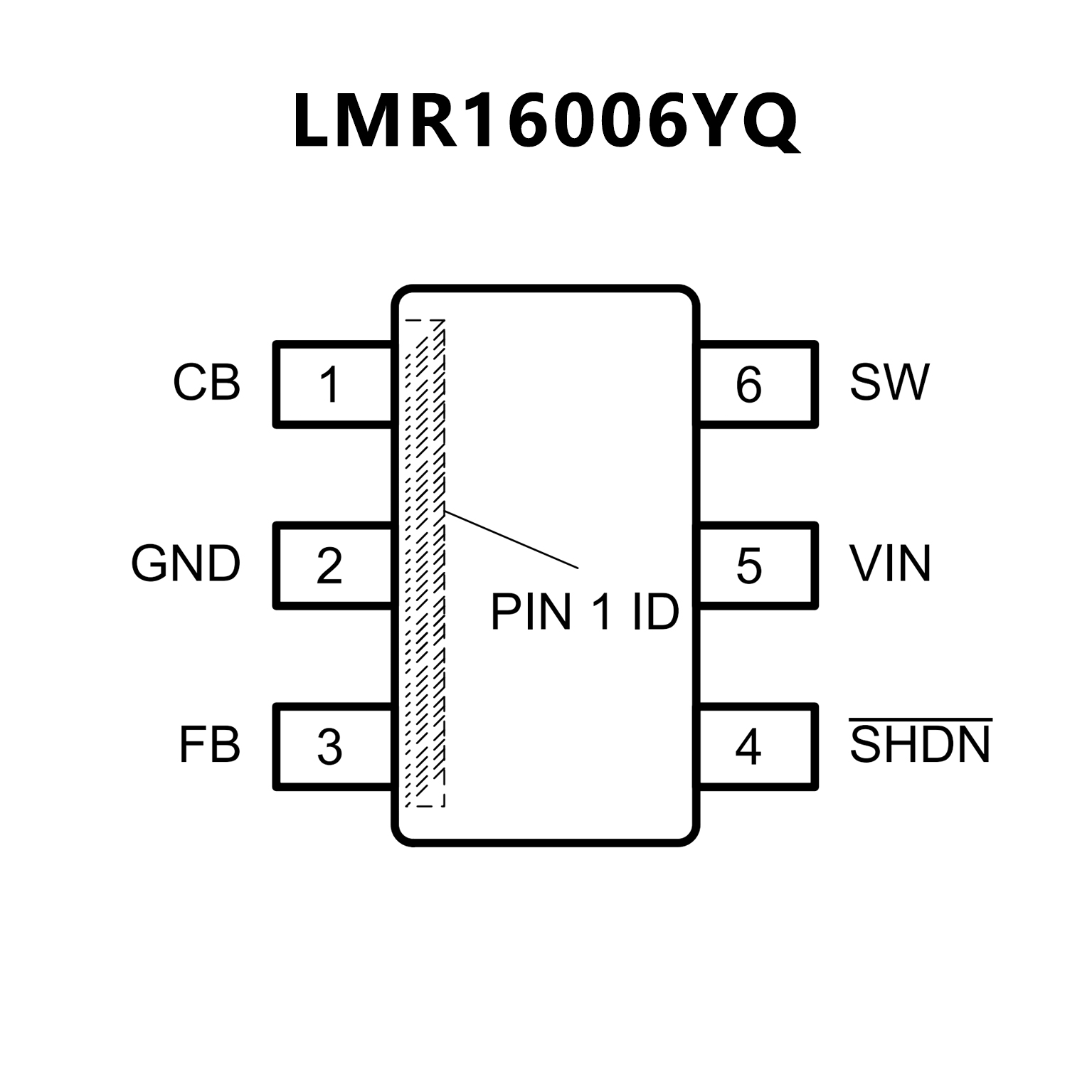

PIN CONFIGUTION
