100V Input, 3.5A, Switching Current Limit Step-Down Converter, SCT2A17 Replace MP9486A.
FEATURES

• Wide Input Range: 5.5V-100V

• Maximum Output Voltage: 30V
• 1A Continuous Output Current
• 1.8A Peak Current Limit when VIN <60V
• Integrated 970mΩ High-Side Power MOSFET
• 49uA Quiescent Current
• 1.2V Feedback Reference Voltage
• 3.5ms Internal Soft-start Time
• Fixed Switching Frequency at 390KHz
• COT Control Mode with Integrated Loop Compensation
• Precision Enable Threshold for Programmable
  Input Voltage Under-Voltage Lock Out Protection
  (UVLO) Threshold and Hysteresis
• Cycle-by-Cycle Current Limiting
• Over-Voltage Protection
• Over-Temperature Protection
• Available in an ESOP-8 Package

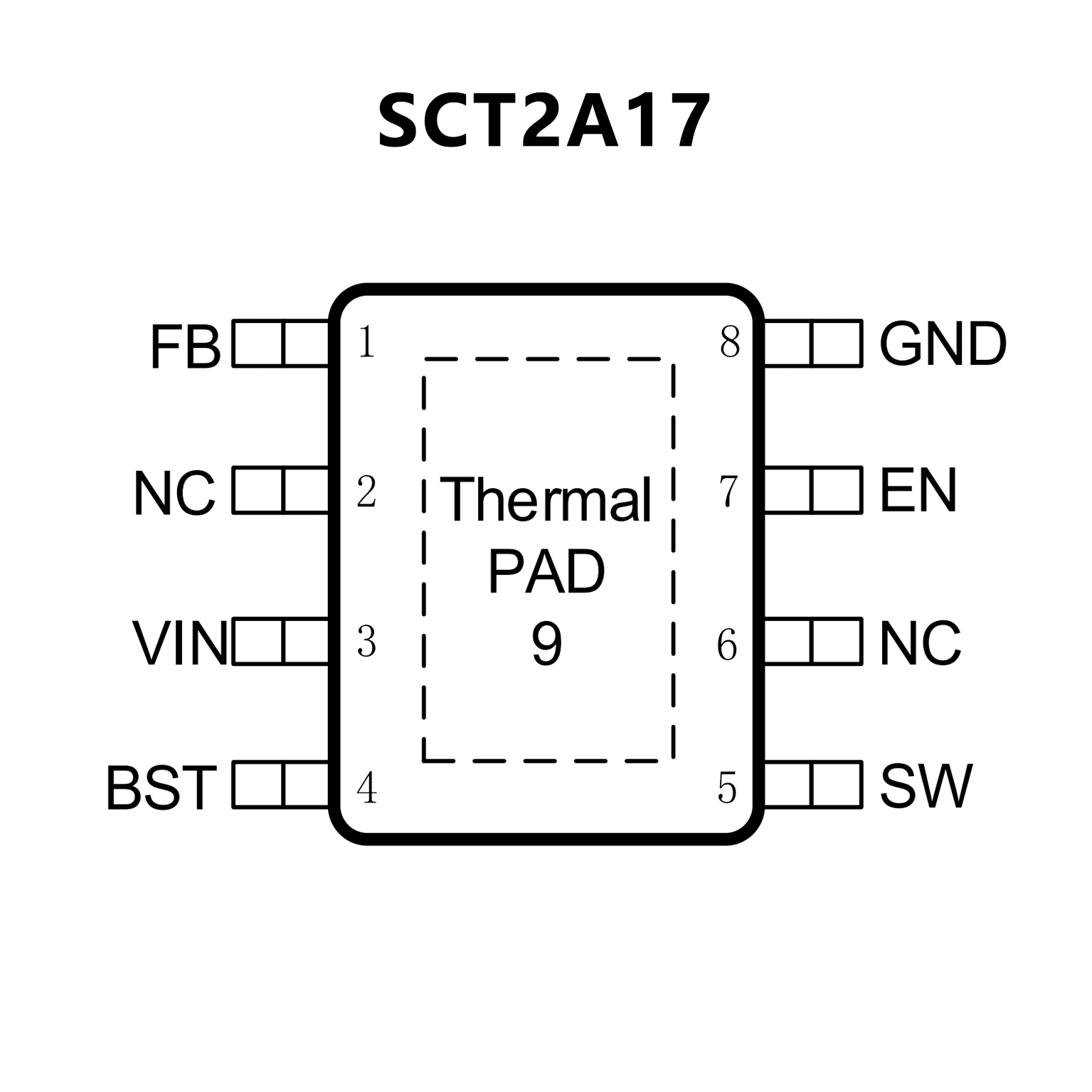

PIN CONFIGUTION
CROSS
MP9486A MP9486A.pdf

No.14489

FEATURES

• Wide 4.5V to 100V Input Range

• 3.5A Typical Peak Switching Current Limit

• Hysteretic Control: No Compensation

• Up to 1MHz Switching Frequency

• PWM Dimming Control Input for LED Application

• Short-Circuit Protection (SCP) with Integrated

  High-Side MOSFET

• 170μA Quiescent Current

• Thermal Shutdown

• Available in a SOIC-8 Package with an Exposed Pad

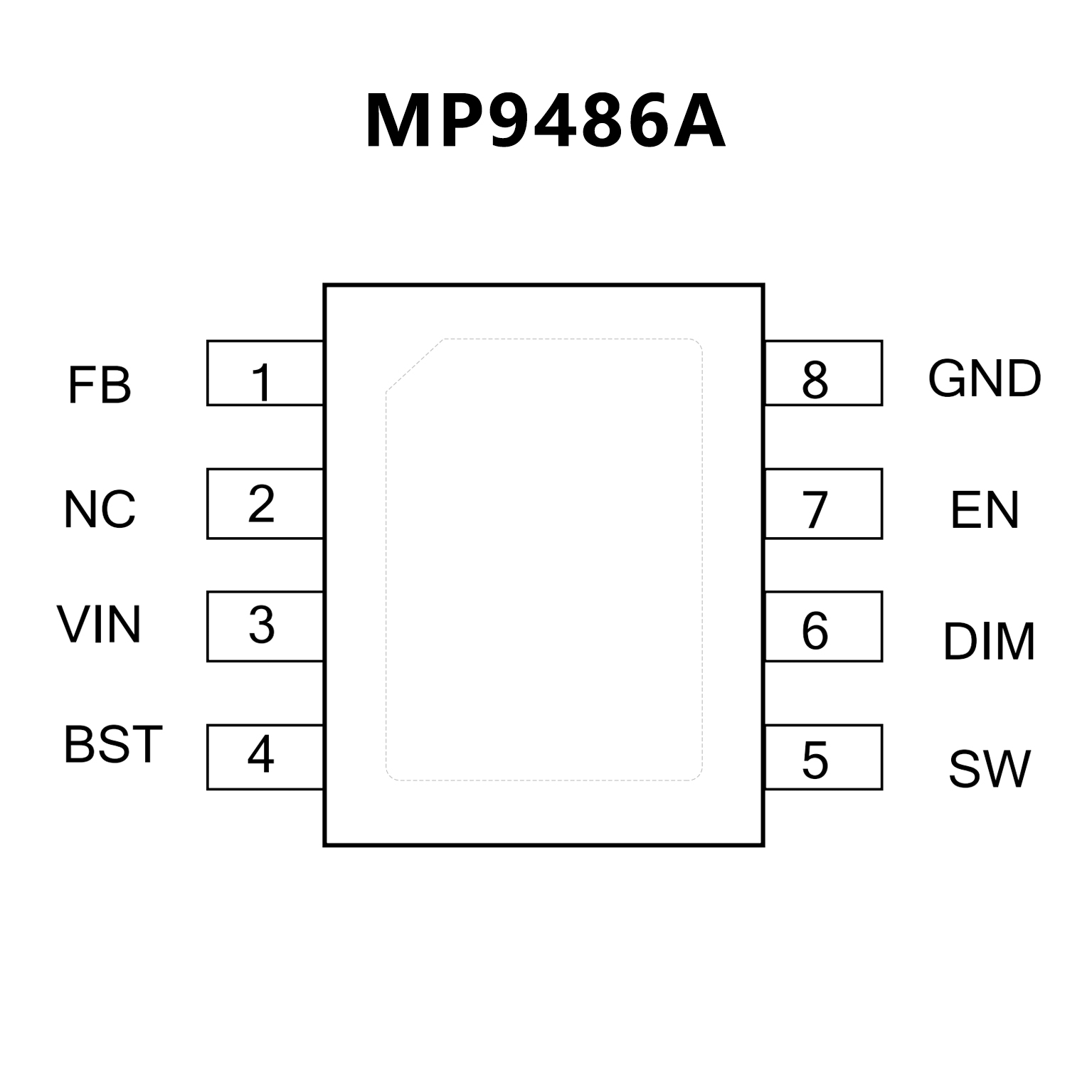

PIN CONFIGUTION
