High Efficiency 500kHz, 1.0A 100V Input Synchronous Step Down Regulator, SCT2A26 Replace SY8501.
FEATURES

• Wide Input Range: 5.5V-100V

• Maximum Output Voltage: 30V
• 2A Continuous Output Current
• 4A Peak Current Limit
• Integrated 500mΩ High-Side Power MOSFET
• 140uA Quiescent Current
• 1.2V ±1% Feedback Reference Voltage
• 4ms Internal Soft-start Time
• Fixed Switching Frequency at 300KHz
• COT Control Mode with Integrated Loop
  Compensation
• Precision Enable Threshold for Programmable
  Input Voltage Under-voltage Lock Out Protection
  (UVLO) Threshold and Hysteresis
• Cycle-by-Cycle Current Limiting
• Over-Voltage Protection
• Over-Temperature Protection

• Available in an ESOP-8 Package

PIN CONFIGUTION
CROSS
SY8501 SY8501.pdf

No.14494

FEATURES

• low RDS(ON) for internal switches (top/bottom):

  500mΩ/240mΩ

• 7-100V input voltage range

• 1A output current capability

• Adjustable switching frequency

• Instant PWM architecture to achieve fast transient

 responses.

• 2ms internal softstart limits the inrush current

• Precious +/-2% 1.2V reference

• RoHS Compliant and Halogen Free

• Compact SO8E package

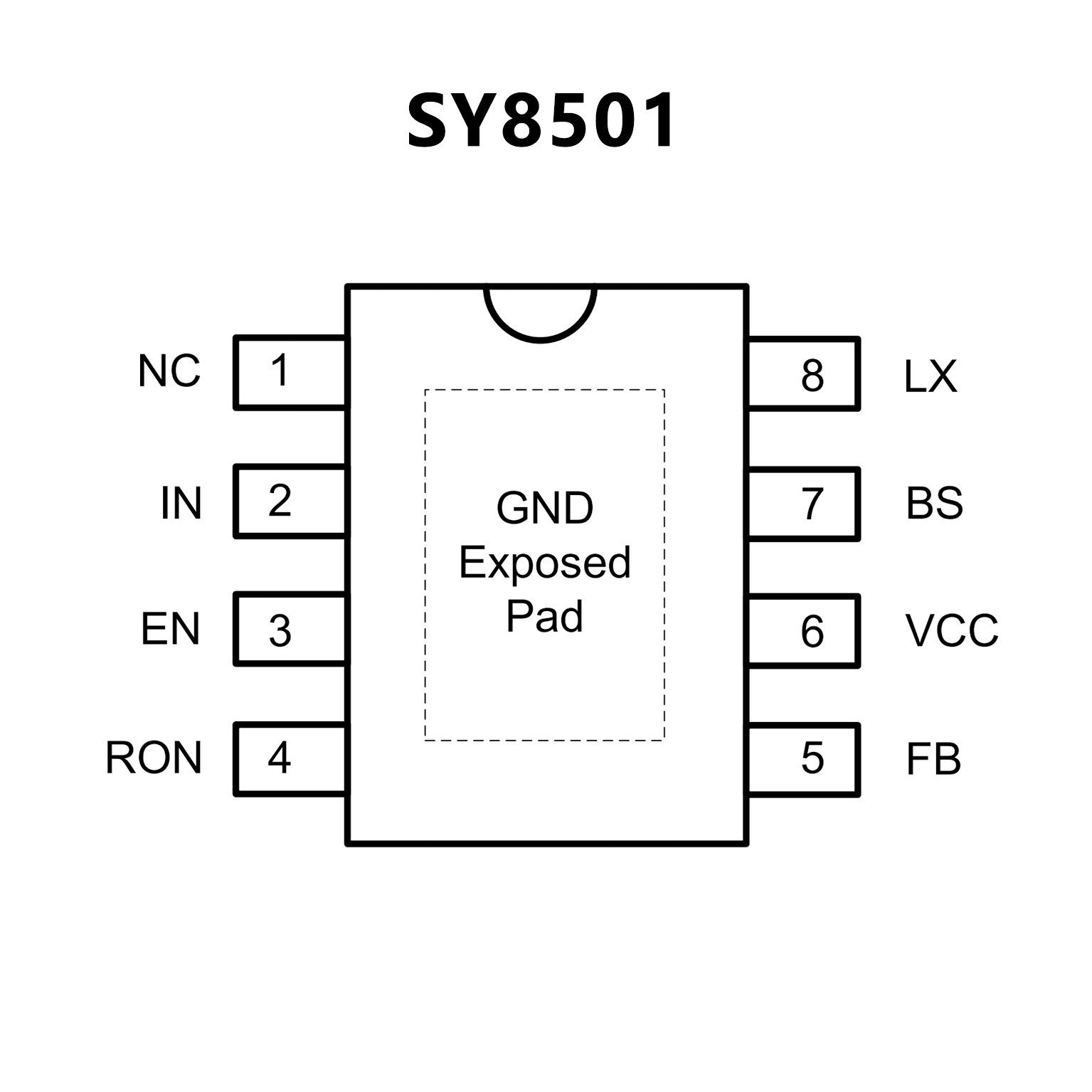

PIN CONFIGUTION
