Up to 24V Supply, 4 A Dual Channel High Speed Low Side Driver, SCT52241 Replace TC4428M.
FEATURES

 Wide Supply Voltage Range: 4.5V - 24V

 4A Peak Source Current and 4A Peak Sink Current

 Negative Input Voltage Capability: Down to -5V

 TTL Compatible Input Logic Threshold

 Propagation Delay: 13ns

 Typical Rising and Falling Times: 8ns

 Low Quiescent Current: 55uA

 Output Low When Input Floating

 Independent Enable Logic for Each Channel

 Thermal Shutdown Protection: 170°C

 Available in SOP-8 Package

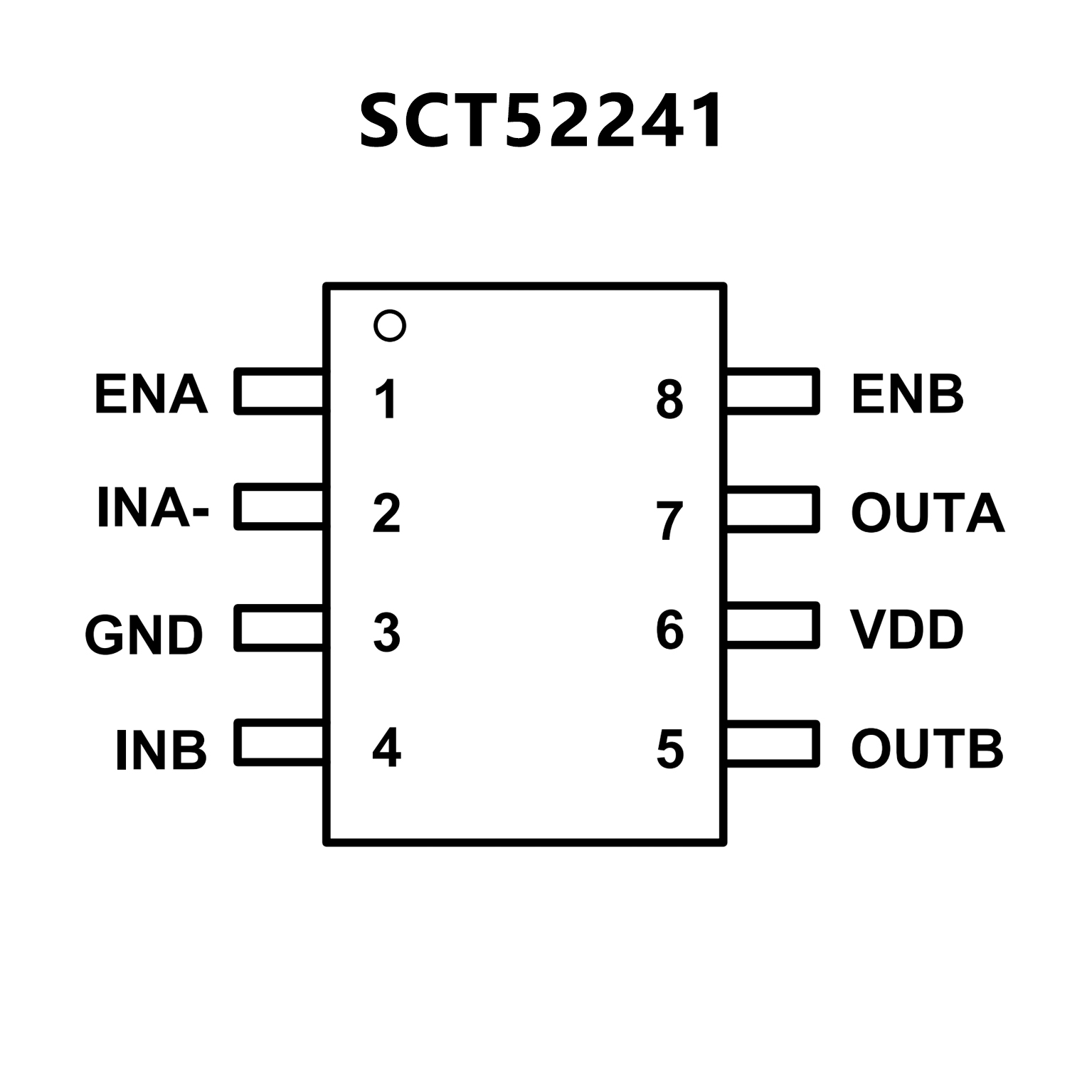

PIN CONFIGUTION
CROSS
TC4428M TC4428M.pdf

No.14426

FEATURES

 High Peak Output Current:1.5A

 Wide Operating Range: 4.5V to 18V

 High Capacitive Load

  Drive Capability: 1000 pF in 25 nsec

 Short Delay Time: <40nsec Typ

 Consistent Delay Times With Changes in

  Supply Voltage

 Low Supply Current

  With Logic “1” Input : 4mA

  With Logic “0” Input : 400µA

 Low Output Impedance: 7Ω

 Latch-Up Protected: Will Withstand >0.5A

  Reverse Current: Down to – 5V

 Input Will Withstand Negative Inputs

 ESD Protected: 4kV

 Pinout Same as TC426/TC427/TC428

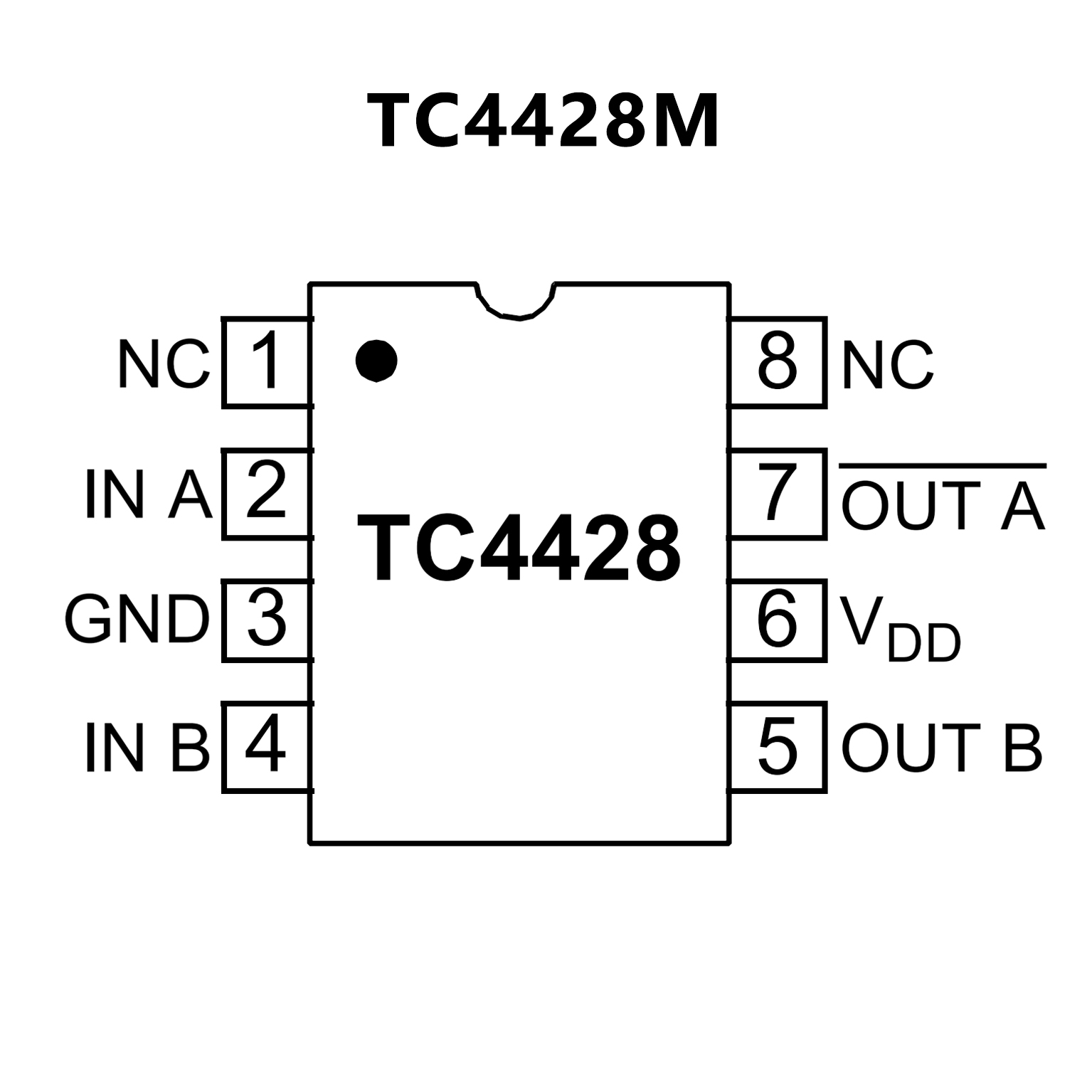

PIN CONFIGUTION
