1.7V-6V Vin, 500mA, 8uA IQ, Low-Dropout Regulator, SCT71005QDVAR P2P TLV73333PQDRVRQ1.
FEATURES

• Qualified for Automotive Applications

• AEC-Q100 Qualified with the Following Results:
  - Device Temperature Grade 1: -40°C to 125°C
• Wide Input Range: 1.7V-6V
  (2.2V-6V for SCT71005A01Q)
• Maximum Output Current: 500mA
• Output Voltage:
  - 1.2V,1.8V and 3.3V (Fixed Output)
  - 0.7V~5V (Adjustable Output Version
    SCT71005A01Q)
  - 0.5V~5V (Adjustable Output Version
    SCT71005A02Q)
• Output Voltage Accuracy:
  - TJ = 25℃ ±1%
  - T= -40~ 125℃ ±2%
• Low Quiescent Current: 8uA
• Ultra-Low Shutdown Current: 0.02uA
• Low Dropout Voltage(Adjustable Output Version) :
  - 54mV at 200mA load current
  - 143mV at 500mA load current
• Support Output Capacitors Range:
  - 2.2uF~220uF
  - Low-ESR: 0.001Ω~ 5 Ω
• 1.4ms Internal Soft-start Time(VREF =500mV)
• 2.05ms Internal Soft-start Time(VREF =700mV)
• Integrated Short-Circuit Protection with OCFB
  (Over Current Fold-back) Feature
• Over-Temperature Protection
• Power-Good Feature is available
• Active Output Discharge
• Available Package: SOT23-5/ TDFN2x2-6/
  TDFN2x3-8
PIN CONFIGUTION
CROSS
TLV73333-Q1 TLV73333-Q1.pdf

No.14394

FEATURES

• AEC-Q100 qualified for automotive applications:

– Temperature grade 1: –40°C to 125°C, TA
• Device junction temperature range:
–40°C to 150°C
• Input voltage range: 1.4 V to 5.5 V
• Stable operation with or without capacitors
• Foldback overcurrent protection
• Package:
– 2.0-mm × 2.0-mm WSON-6
– 2.9-mm × 1.6-mm SOT-23
• Very low dropout: 125 mV at 300 mA (3.3 VOUT)
• Accuracy: 1% typical, 1.4% maximum
• Low IQ: 34 µA
• Available in fixed-output voltages:
1.0 V to 3.3 V
• High PSRR: 50 dB at 1 kHz
• Active output discharge

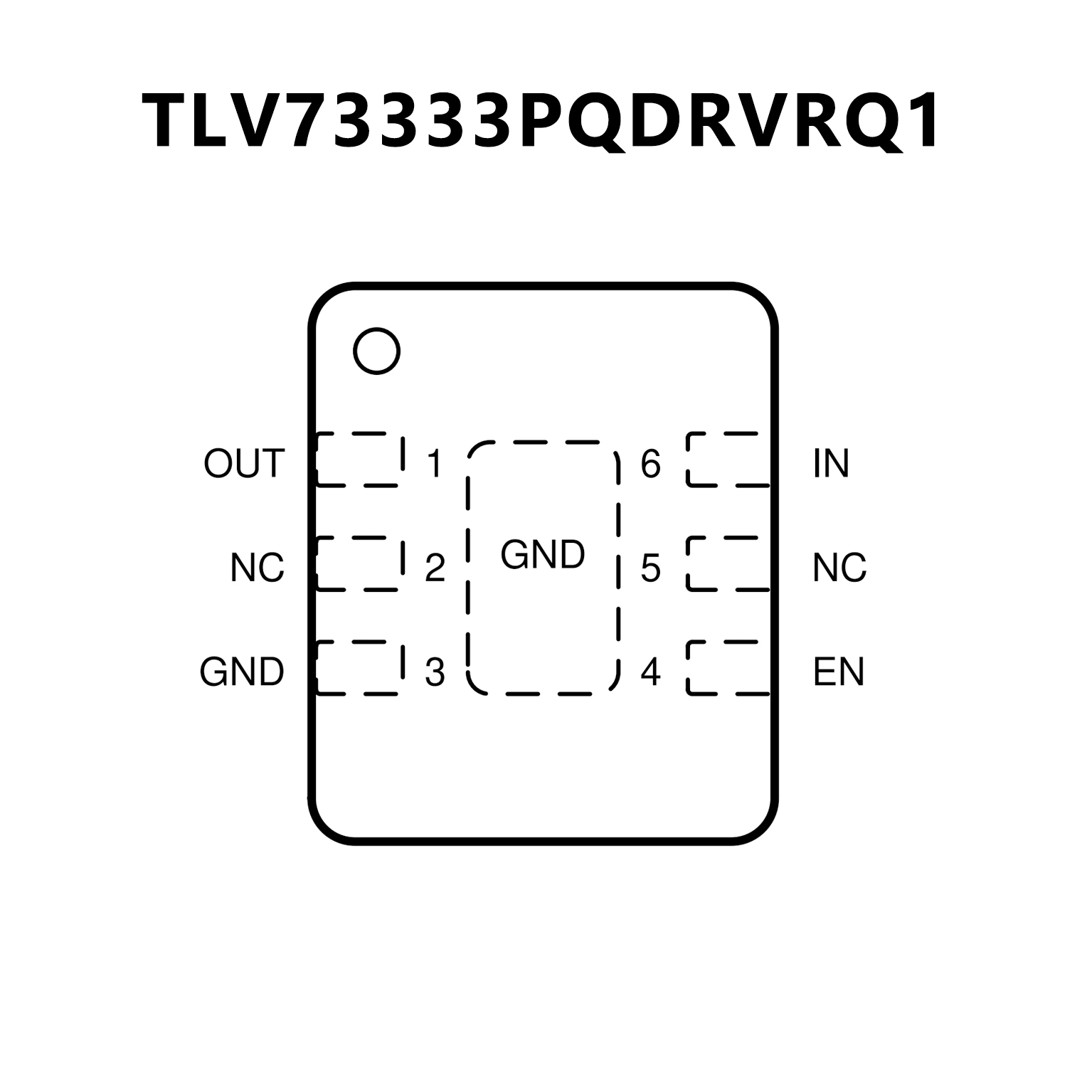

PIN CONFIGUTION
