• Qualified for Automotive Applications

• AEC-Q100 Qualified with the Following Results:

     Device Temperature Grade 1:

     -40°C to 125°C Ambient Operating Temperature Range

     Device HBM ESD Classification Level H2

     Device CDM ESD Classification Level C5

• Wide Input Range: 3V-40V

• With up to 45V Transient Input Voltage

• Maximum Output Current: 200mA

• Output Voltage: 1.215V~25V

• Output Voltage Accuracy:

     TJ= 25℃ : ±1%

     TJ= -40℃~ 150℃ : ±2%

• Ultra-Low Quiescent Current: 2.6µA

• Low Dropout Voltage ：

     270mV at 200mA load current

• Support Output Capacitors Range:

     3.3uF~220uF

     Low-ESR: 0.001Ω~ 5 Ω

• 1.5ms Internal Soft-start Time

• Current Limit Protection with VIN_HIGH Control

• Precision Enable Threshold for Programmable Input Voltage

  Under-Voltage Lock Out Protection (UVLO) Threshold and

  Hysteresis

• Over-Temperature Protection

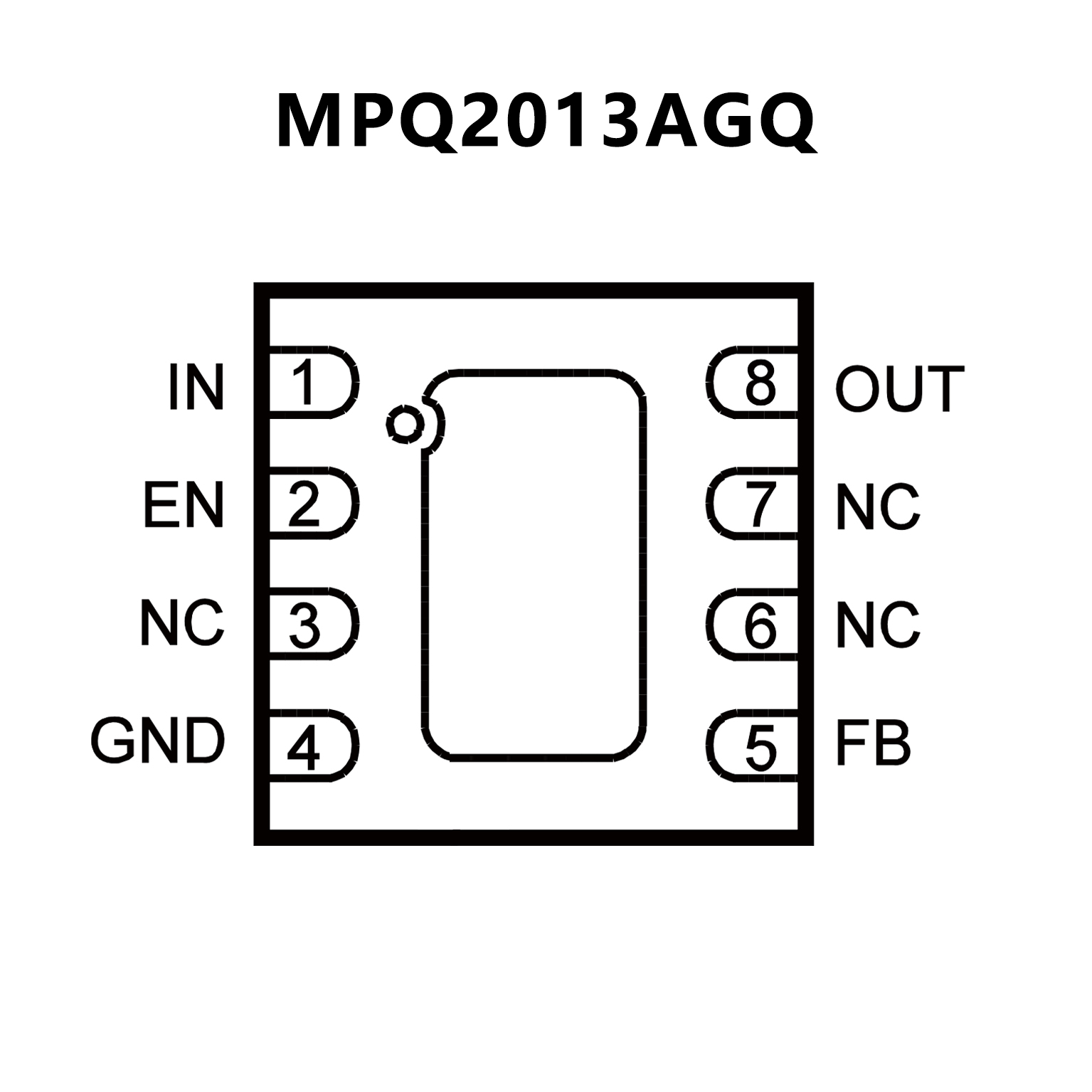

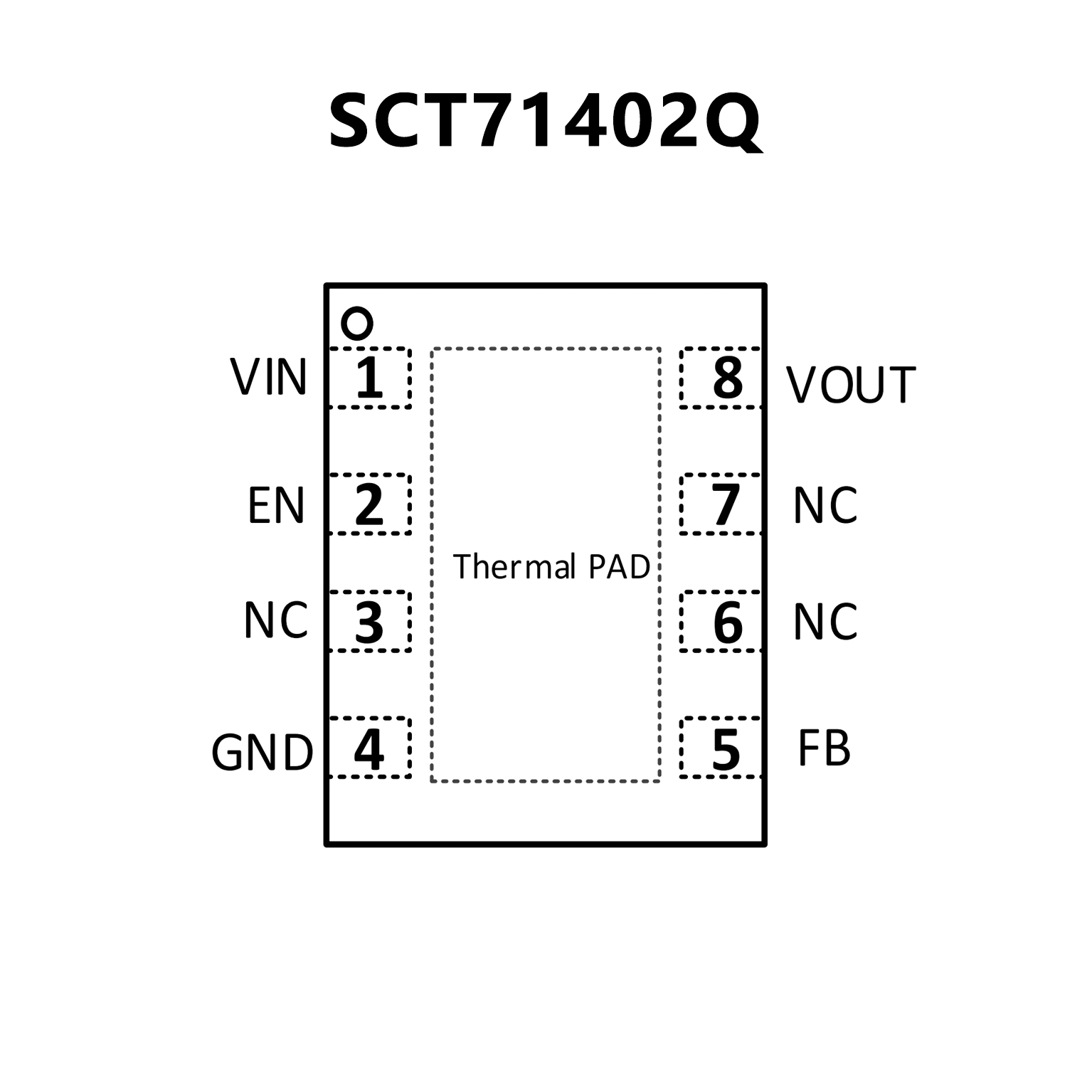

• Available Package: TDFN3X3-8
