60V Input, 100mA Output Current, Low Quiescent Current LDO, SCT71601A00Q Replace TPS79801-Q1.
SCT71601A00Q SCT71601A00Q.pdf
FEATURES

• Qualified for Automotive Applications

• AEC-Q100 Qualified with the Following Results:
• - Device Temperature Grade 1: -40°C to 125°C
• Wide Input Range: 3V-60V
• Maximum Output Current: 100mA
• Adjustable Voltage: 1.2V-30V
• Output Voltage Accuracy:
 - T= 25℃ ±1%
 - T= -40~ 125℃ ±2%
• Low Quiescent Current: 4 uA
• Ultra-Low Shutdown Current: 0.23uA
• Low Dropout Voltage
 -  60mV at 20mA load current
 -  340mV at 100mA load current
• 720us Internal Soft-start Time
• Integrated Short-Circuit Protection with OCFB
  (Over Current Fold-back) Feature
• Enable pin is available
• Over-Temperature Protection
• Active Output Discharge
• Available Package: eMSOP3x3-8
PIN CONFIGUTION
CROSS
TPS79801-Q1 TPS79801-Q1.pdf

No.14421

FEATURES

• Qualified for Automotive Applications

• Wide Input Voltage Range: 3 V to 50 V

• Low Quiescent Current: 40 µA (Typical)

• Low Dropout Voltage: 300 mV (Typical)

• Output Current: 50 mA

• No Input Protection Diodes Needed

• Adjustable Output From 1.275 V to 28 V

• 1-µA Quiescent Current in Shutdown

• Stable With 1-µF Output Capacitor

• Stable With Aluminum, Tantalum, or Ceramic

  Capacitors

• Reverse Input-Battery Protection

• Reverse Output Current Flow Protection

• Thermal Limiting

• Available in an 8-Pin MSOP-PowerPAD IC Package

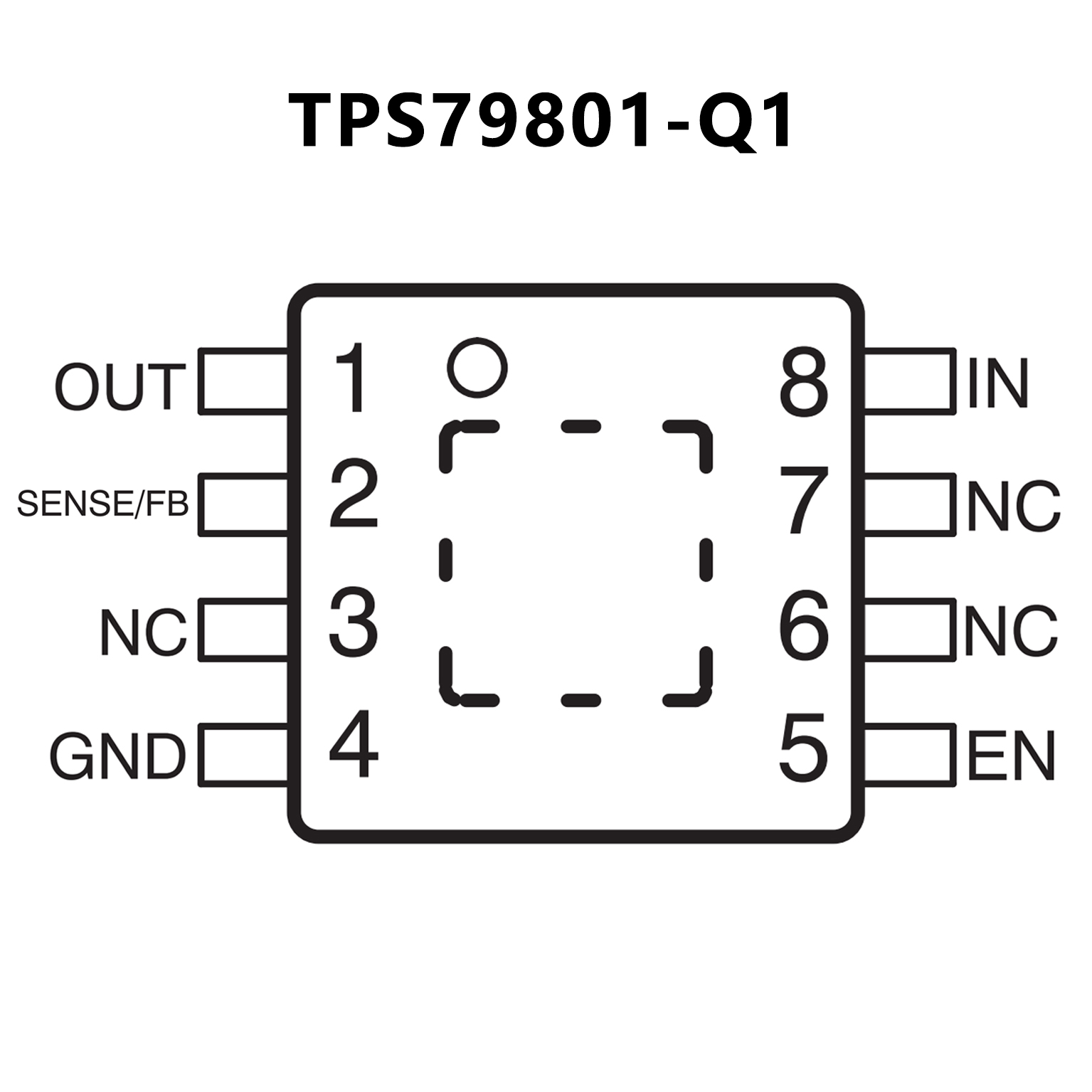

PIN CONFIGUTION
