High Isolation SP3T SWITCH,SGM11103S Replace NJG1698.
SGM11103S
SGM11103S.pdf
SGM11103S.pdfFEATURES
• High Isolation:
f0 = 1.0GHz, PIN = 0dBm: 55dB (TYP)
f0 = 2.0GHz, PIN = 0dBm: 52dB (TYP)
f0 = 2.7GHz, PIN = 0dBm: 50dB (TYP)
f0 = 3.8GHz, PIN = 0dBm: 48dB (TYP)
f0 = 5.8GHz, PIN = 0dBm: 34dB (TYP)
• Low Insertion Loss:
f0 = 1.0GHz, PIN = 0dBm: 0.49dB (TYP)
f0 = 2.0GHz, PIN = 0dBm: 0.52dB (TYP)
f0 = 2.7GHz, PIN = 0dBm: 0.56dB (TYP)
f0 = 3.8GHz, PIN = 0dBm: 0.60dB (TYP)
f0 = 5.8GHz, PIN = 0dBm: 1.07dB (TYP)
• Available in a Green ULGA-1.15×1.55-10L Package

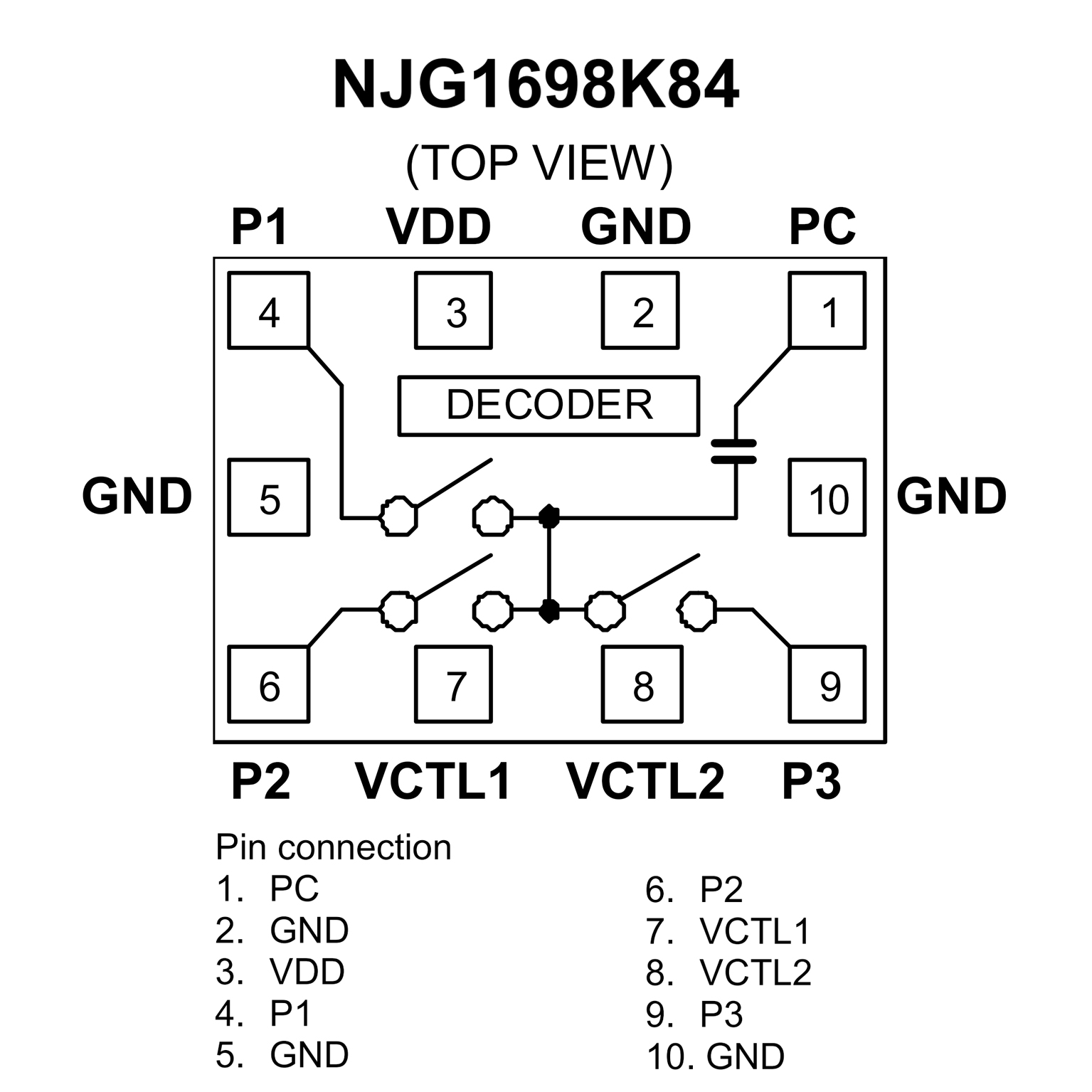

PIN CONFIGUTION
CROSS
FEATURES
• Low voltage logic control
VCTL(H)=1.8V typ.
• Low voltage operation
VDD=2.7V typ.
• High isolation
51dB typ. @f=1.0GHz, PIN=0dBm
50dB typ. @f=2.0GHz, PIN=0dBm
43dB typ. @f=2.7GHz, PIN=0dBm
• Low insertion loss
0.50dB typ. @f=1.0GHz, PIN=0dBm
0.55dB typ. @f=2.0GHz, PIN=0dBm
0.60dB typ. @f=2.7GHz, PIN=0dBm
• Small & thin package
QFN10-84 Package (Package size: 1.55 x
1.15 x 0.37mm typ.)
• RoHS compliant and Halogen Free, MSL1
PIN CONFIGUTION
