MXDLN16U GPS Low Noise Amplifier Datasheet,SGM13001B Replace MXDLN16U.
SGM13001B
SGM13001B.pdf
SGM13001B.pdfFEATURES
• High Gain: 18.3dB at 1575.42MHz
• Low Noise Figure: 0.90dB at 1575.42MHz
• Low Operation Current: 6.5mA
• Current Less than 1μA in Power Down Mode
• Operating Frequency Range:
1550MHz to 1615MHz
• Single Supply Voltage Range: 1.6V to 3.1V
• Low Cost BOM
• Lead-Free and RoHS Compliant
• Available in a Green UTDFN-1.1×0.9-6L Package
PIN CONFIGUTION
CROSS
FEATURES
• High Gain: 19dB
• Low noise figure 0.7dB @ 1575.42MHz
• Low operation current 6mA & PD current less
than 1uA
• 3.6mA current under 1.2V power supply
• Single supply voltage range 1.2V to 2.85V
• Small package 1.1mmx0.9 mmx0.45mm
• Low cost BOM
• Lead-Free and RoHS-Compliant

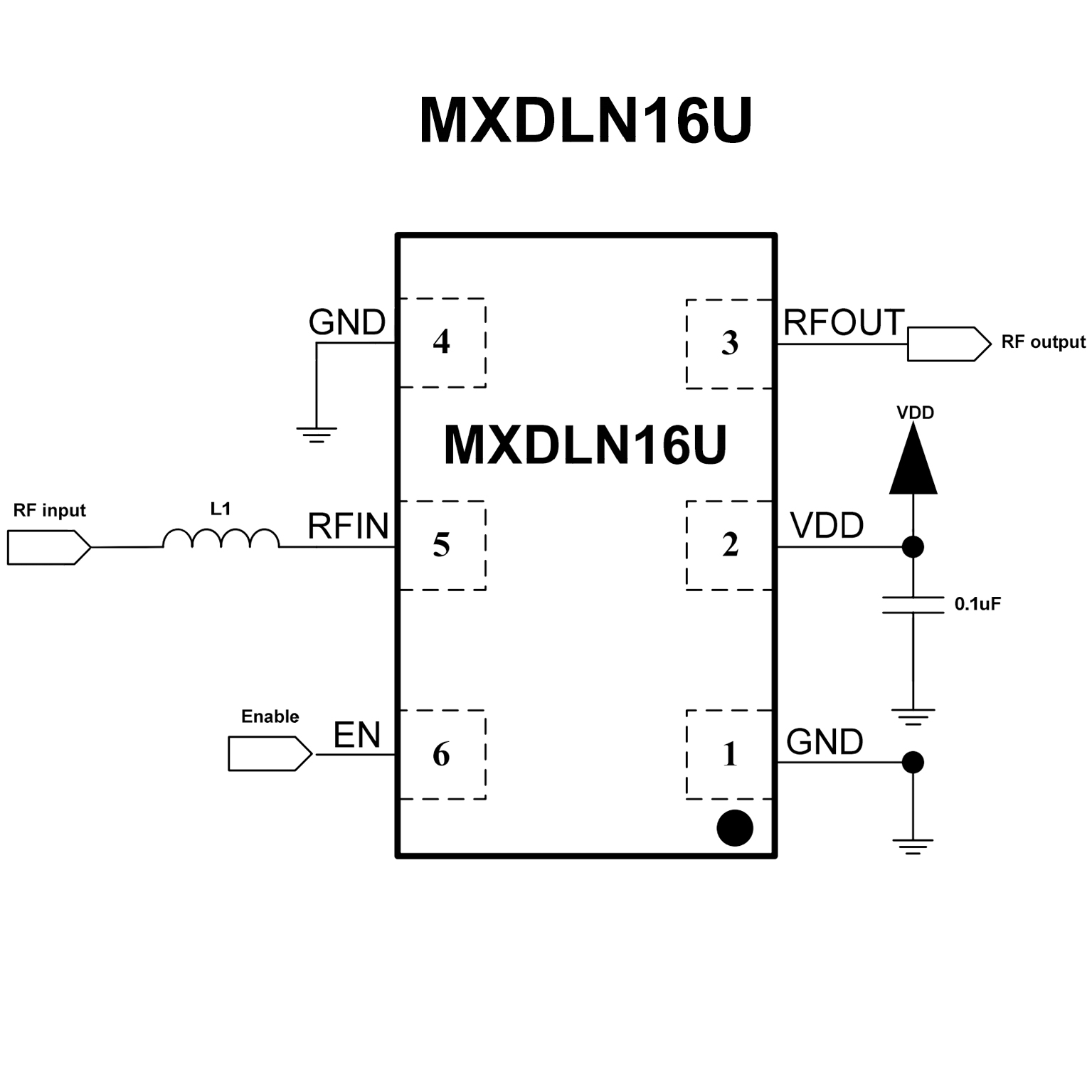

PIN CONFIGUTION
