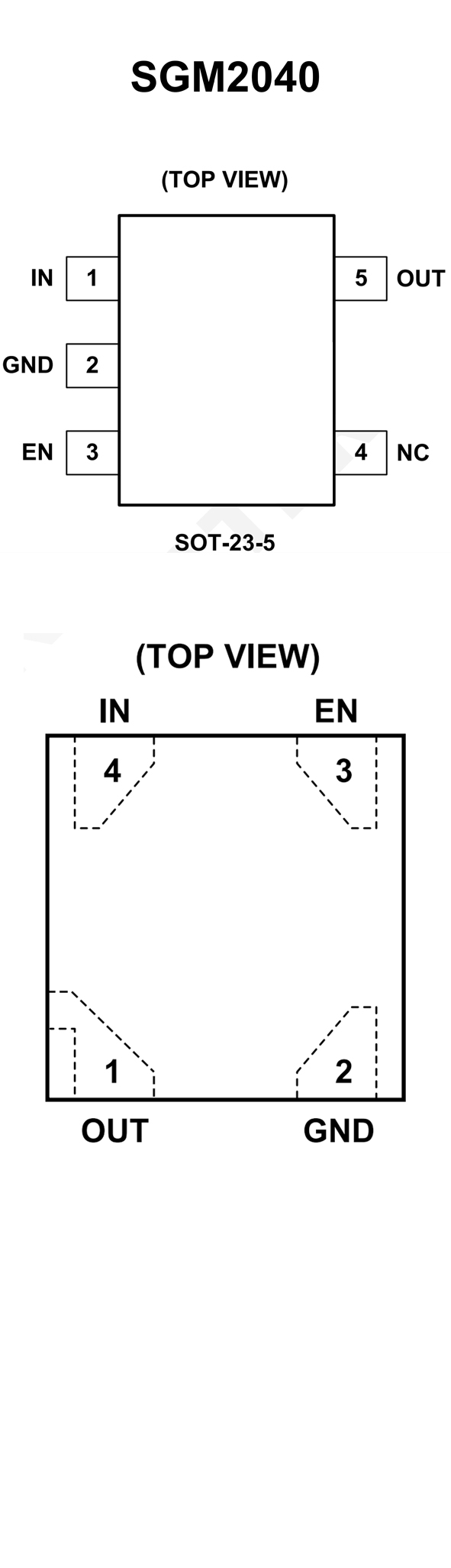

SGM2040.pdf• Output Voltage: 1.2V to 5.2V with 0.05V per Step
• Input Voltage: 1.7V to 7.5V
• High Output Voltage Accuracy
• Low Dropout Voltage
• Ultra Low Current Consumption: 1.0μA (TYP)
• 250mA Nominal Output Current
• Input and Output Capacitors:
Ceramic Capacitors of 0.1μF or Higher can be Used
• Low Reverse Leakage Current when VOUT > VIN
• Built-In Over-Temperature Protection
• Built-In Over-Current Protection Circuit
• Supports 1.8V Logic for EN Pin
• Ultra small package DFN4 (1.0 mm x 1.0 mm;
t 0.60 mm (max)).
• Low quiescent bias current ( IB = 0.34 μA (typ.)
at IOUT = 0 mA, output voltage up to 1.5 V)
• High Ripple rejection ratio 70 dB at 0.8 V-output
• Fast Load transient response -51/+36 mV at 0.8 V
-output, IOUT = 1 mA ⇔ 50 mA
• Low Drop-Out voltage
VIN-VOUT = 196 mV (typ.) at 3.3 V-output, IOUT
= 300 mA
• Wide range output voltage line up (VOUT = 0.8 to 5.0 V)
• High VOUT accuracy ± 1.0 % (1.8 V ≤ VOUT)
• Overcurrent protection
• Thermal Shutdown function
• Auto-discharge
• Inrush current protection circuit
• Pull down connection between CONTROL and GND
• Ceramic capacitors can be used (CIN = 1 μF,
COUT = 1 μF)
