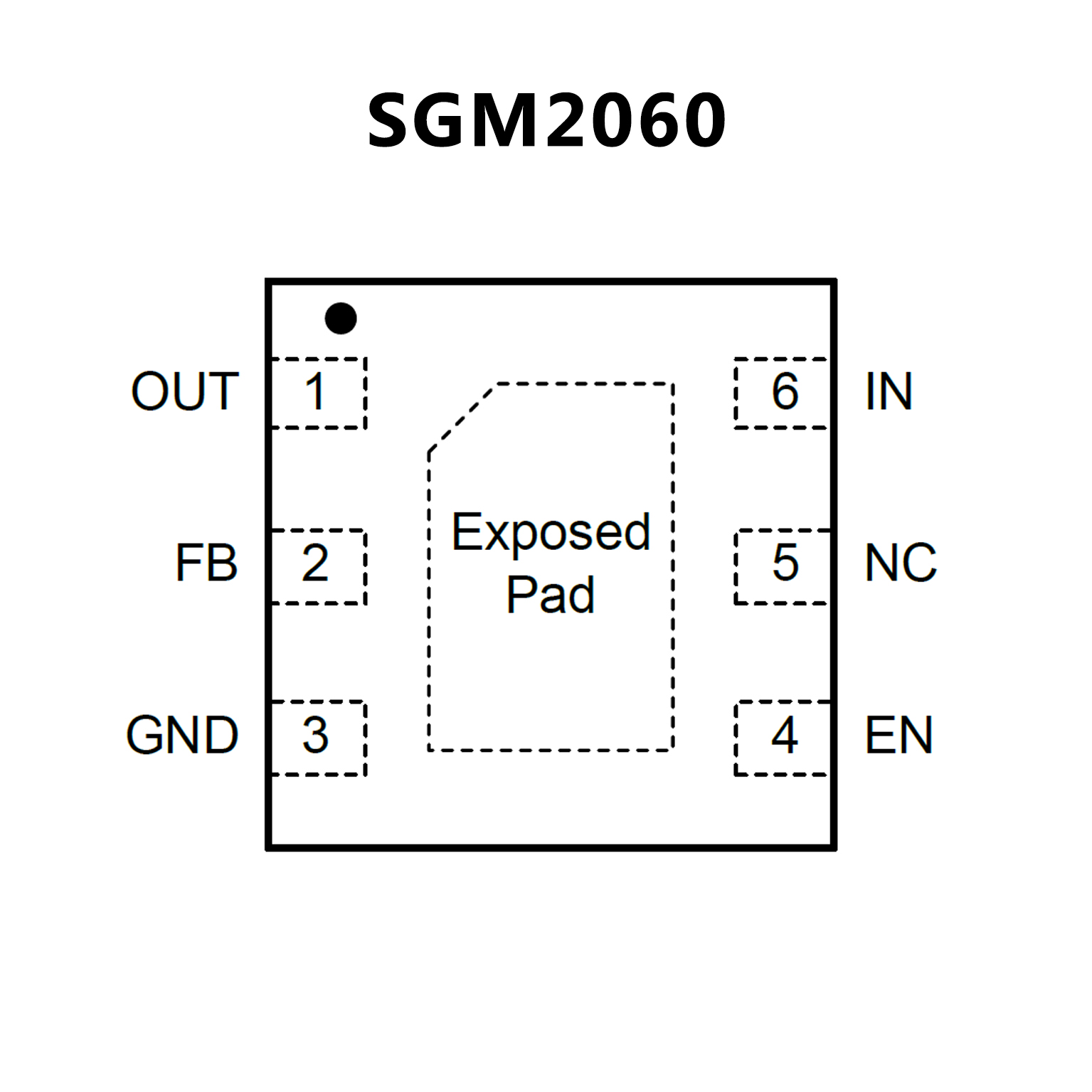

SGM2060.pdf• Operating Input Voltage Range: 1.5V to 5.5V
• Fixed Output from 0.55V to 4.2V
• Adjustable Output from 0.55V to 5.0V
• 1A Output Current
• Output Voltage Accuracy: ±1% at +25℃
• Quiescent Current: 85μA (TYP)
• Low Dropout Voltage:
145mV (TYP) at 1A, VOUT = 3.3V
• Low Noise: 16µVRMS (TYP)
• Current Limiting and Thermal Protection
• Excellent Load and Line Transient Responses
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• UVLO with Hysteresis
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TDFN-2×2-6AL Package

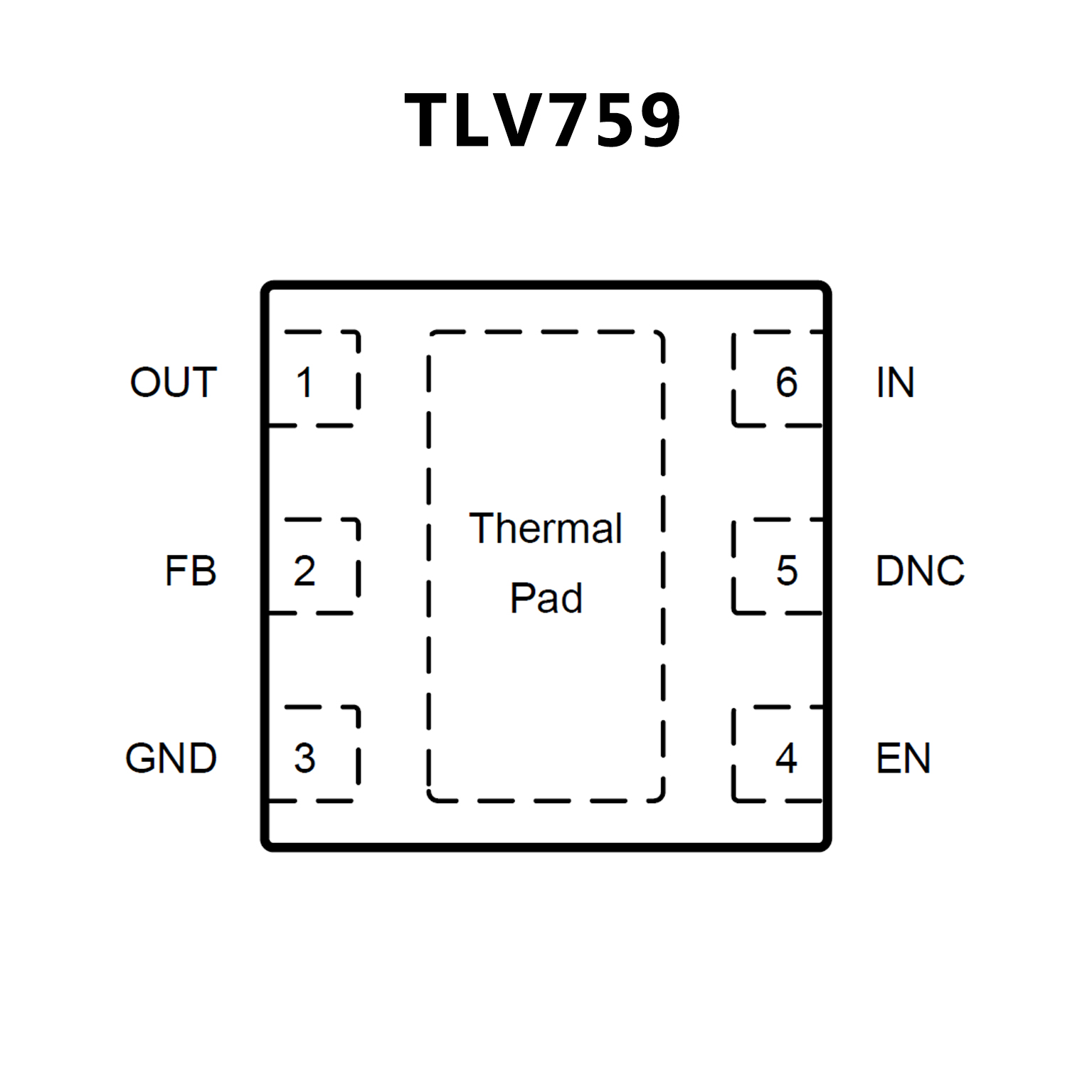

• Input Voltage Range: 1.5 V to 6.0 V
• Adjustable Output Voltage:
0.55 V to 5.5 V
• Very Low Dropout:
225 mV (max) at 1 A (3.3 VOUT)
• High Output Accuracy:
0.7%, Typical
1%, Maximum Over Temperature (85°C)
• Active Output Discharge
