Wideband RF SPDT Switch in small package with 0.77mm2 footprint, SGM21102A P2P BGS12SN6.
FEATURES

资料完善中


















PIN CONFIGUTION
CROSS
BGS12SN6 BGS12SN6.pdf

No.11500

FEATURES

• 2 high-linearity TRx paths with power handling

  capability of up to 30 dBm

• High switching speed, ideal for WLAN and

  Bluetooth applications

• All ports fully bi-directional

• Low insertion loss

• Low harmonic generation

• High port-to-port-isolation

• 0.05 to 6 GHz coverage

• High ESD robustness

• On-chip control logic

• Very small leadless and halogen free package

  TSNP-6-2(-8) (0.7x1.1 mm2) with super low

  height of 0.375 mm

• No decoupling capacitors required if no DC

  applied on RF lines

• RoHS compliant package

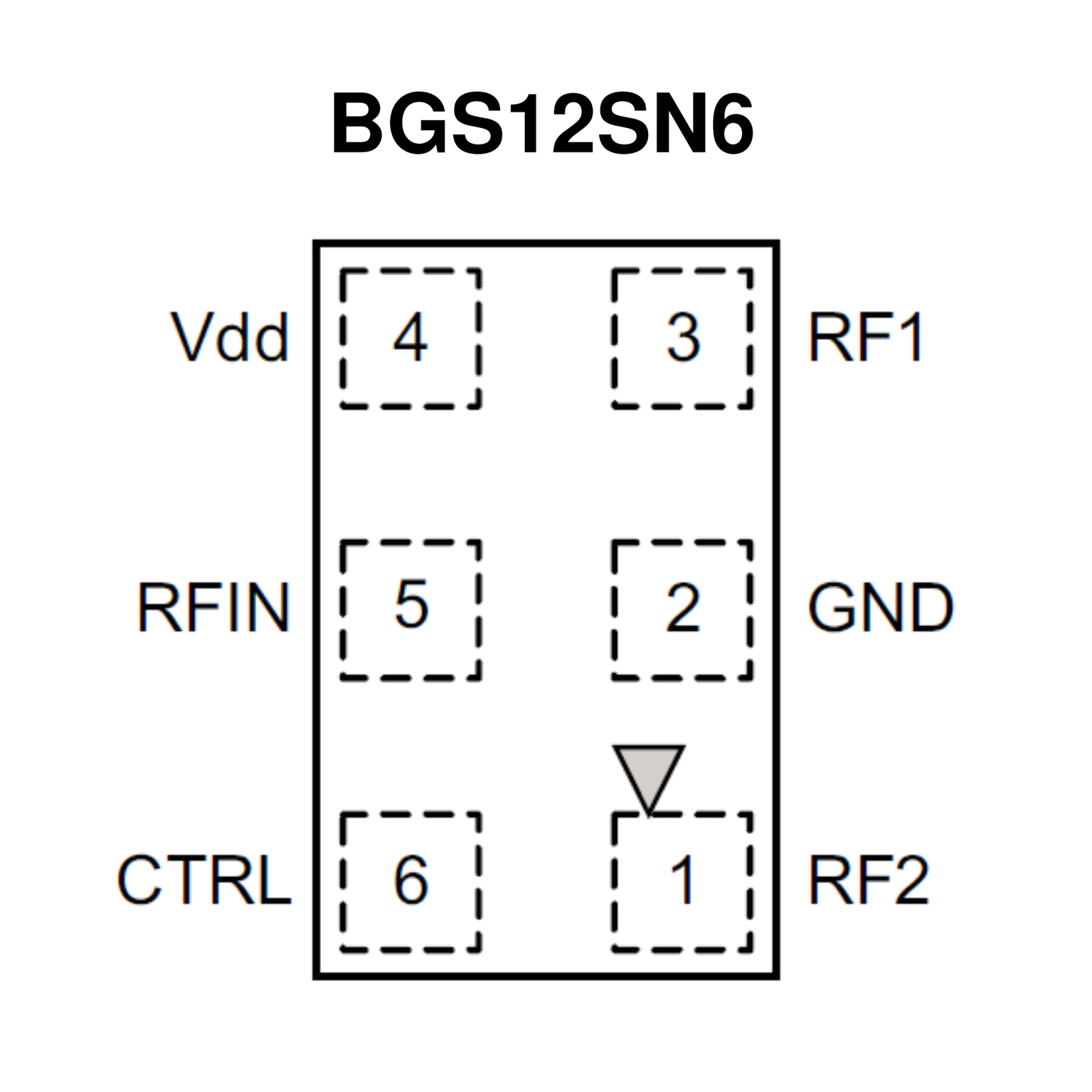

PIN CONFIGUTION
