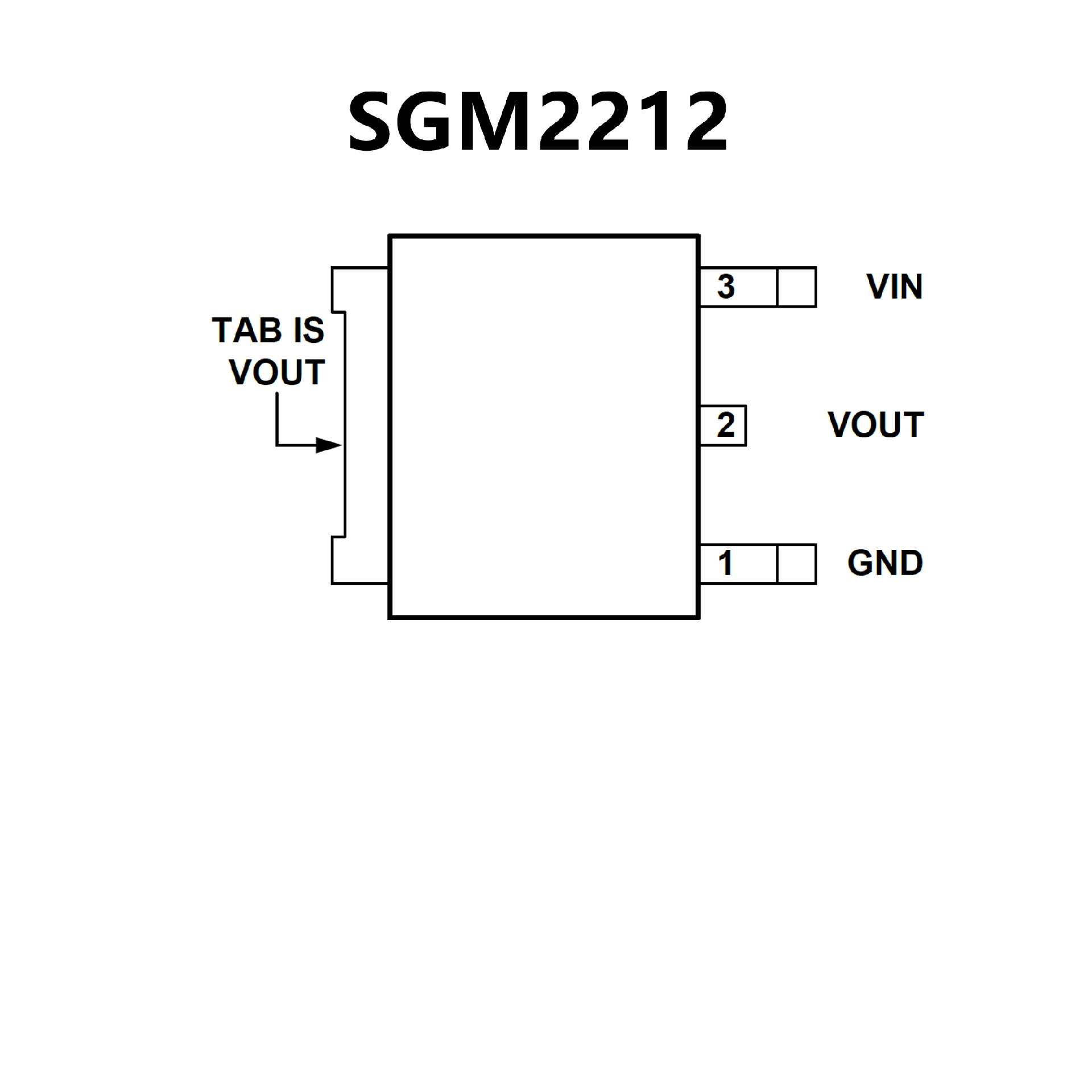

SGM2212-3.3XKC3G.pdf• Input Voltage Range: 2.7V to 20V
• Output Current: 800mA
• Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
• Adjustable Output Voltage Range: 1.25V to 15V
• Output Voltage Accuracy: ±1% at +25℃
• Line Regulation: 0.012% (MAX)
• Load Regulation: 0.4% (MAX)
• Stable with Small Case Size Ceramic Capacitors
• Output Current Limit
• Thermal Shutdown Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

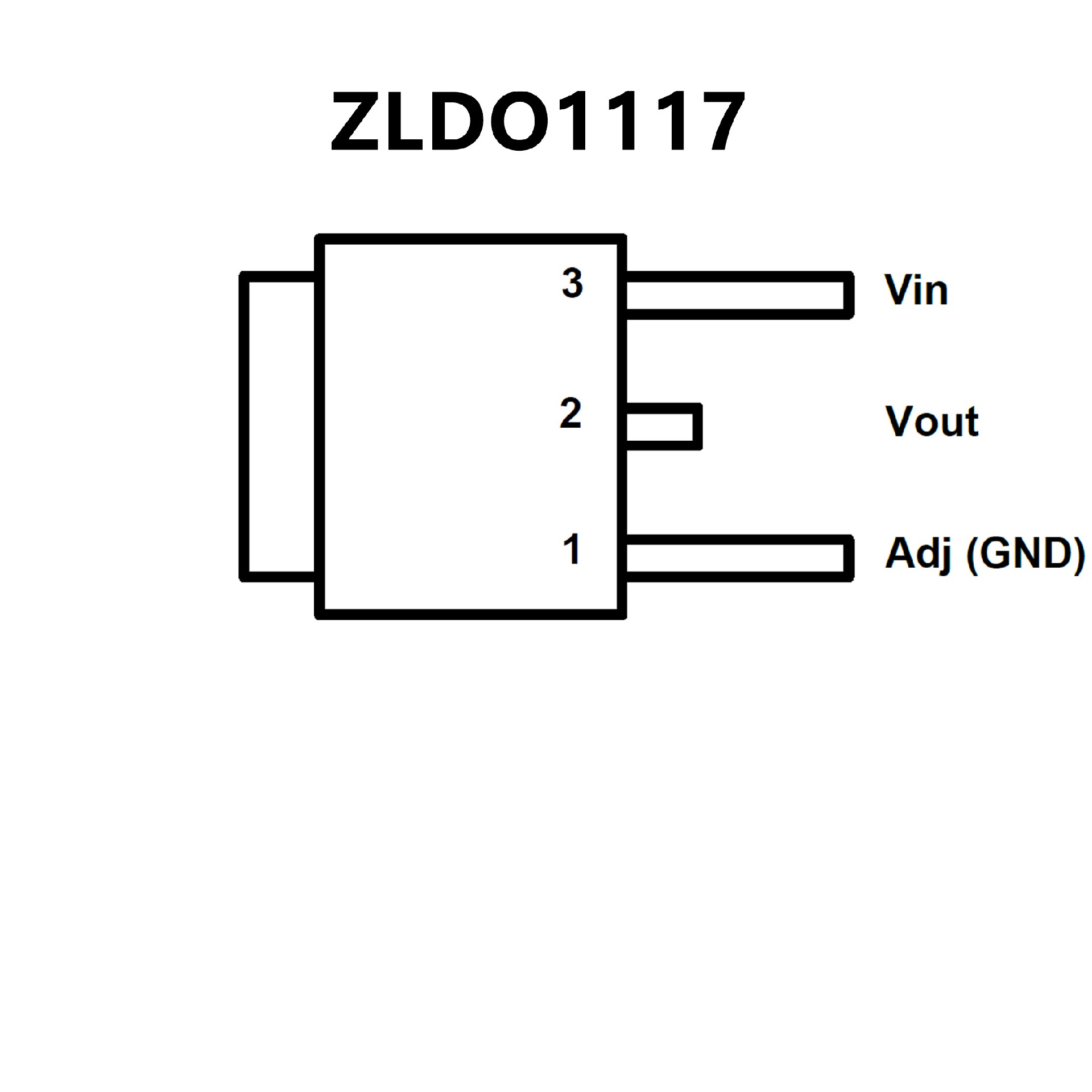

• 1.2V Maximum Dropout at Full Load Current
• 2% Tolerance Over Temperature,
Line and Load Variations
• Fast Transient Response
• Output Current Limiting
• Built-in Thermal Shutdown
• Good Noise Rejection
• Suitable for use with MLCC Capacitors
• Qualified to AEC-Q100 Grade 2
(see ‘Ordering Information’)
• PPAP capable (Note 4)
• -40 to +125°C Junction Temperature Range
• Available in TO252 and SOT223 with
“Green” Molding Compound(No Br, Sb)
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free.
“Green” Device (Note 3)
