2.4 GHz, 1024 QAM WLAN Front-End Module, SGM22337A Replace SKY85337.
FEATURES

资料完善中











PIN CONFIGUTION
CROSS
SKY85337 SKY85337.pdf

No.11513

FEATURES

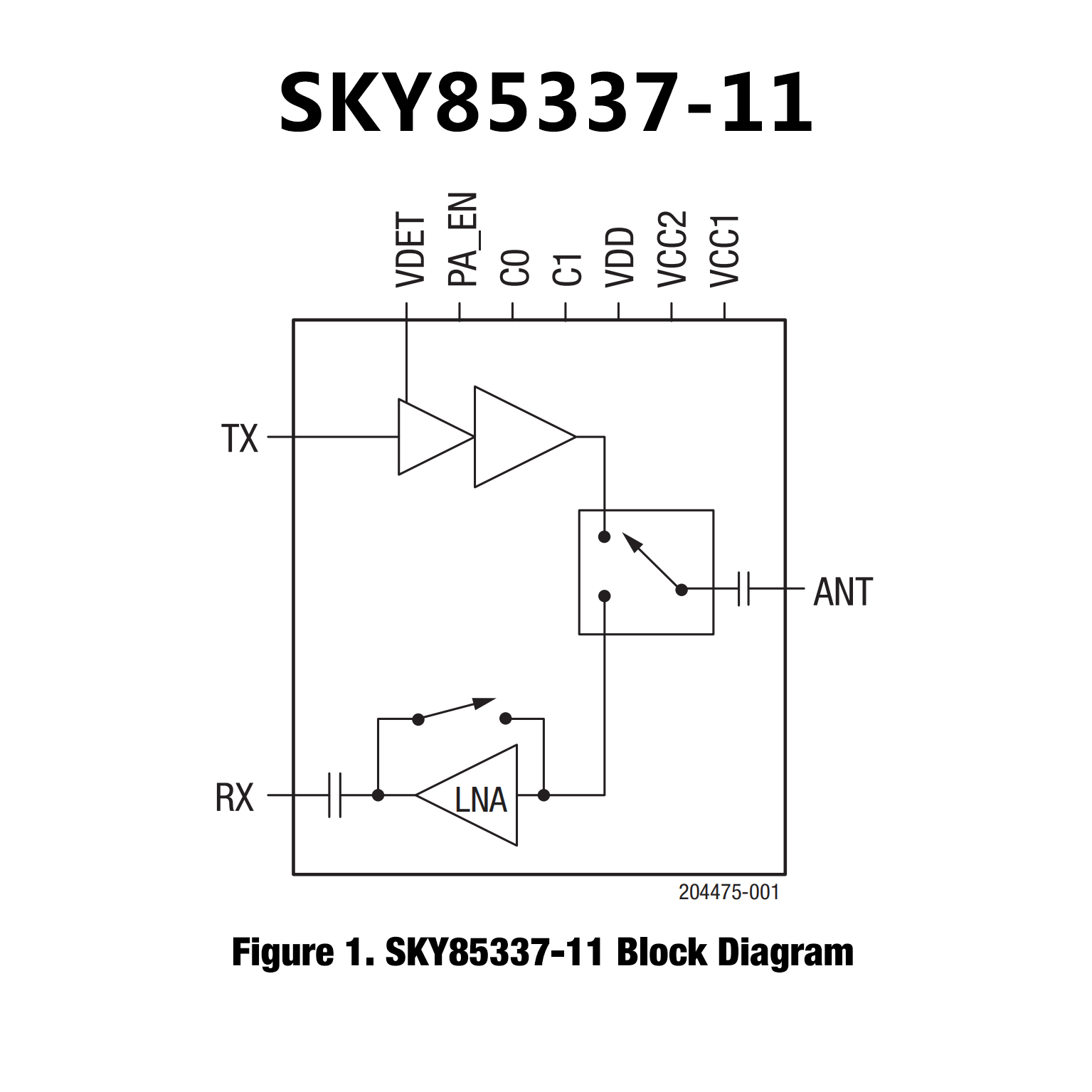

• Integrated high-performance 2.4 GHz PA, harmonic

  filter, LNA with bypass, and T/R switch

 Fully-matched input and output

 LNA with integrated bypass mode

 High performance SPDT switch to support WiFi

  functions

 Integrated positive slope power detector

 Transmit gain: 32 dB

 Receive gain: 14 dB

 Small 16-pin, 3 × 3 mm laminate package

  (MSL3, 260 °C per JEDEC J-STD-020)

PIN CONFIGUTION
