40V, 150mA, Low Quiescent CurrentLinear RegulatorAEC-Q100 Qualified, SGM2236Q Replace MPQ2013A.
CROSS
FEATURES
• 2.5V to 40V Input Range
• 3.3µA Quiescent Supply Current
• Stable With Low-value Output Ceramic Capacitor (> 0.47 μF)
• 150mA Specified Current for QFN-6 and QFN-8 Packages
• 620mV Dropout at 150mA Load
• Available in Fixed and Adjustable Output (1.215 V to 15 V) Versions
• Output ±2% Accuracy for QFN-8 Package Output ±4% Accuracy for QFN-6 Package
• Specified Current Limit
• Thermal Shutdown
• -40°C to +150°C Specified Junction Temperature Range
• Available in QFN-6 (2mmx2mm), or QFN-8 (3mmx3mm) Packages
• Available in AEC-Q100 Grade 1

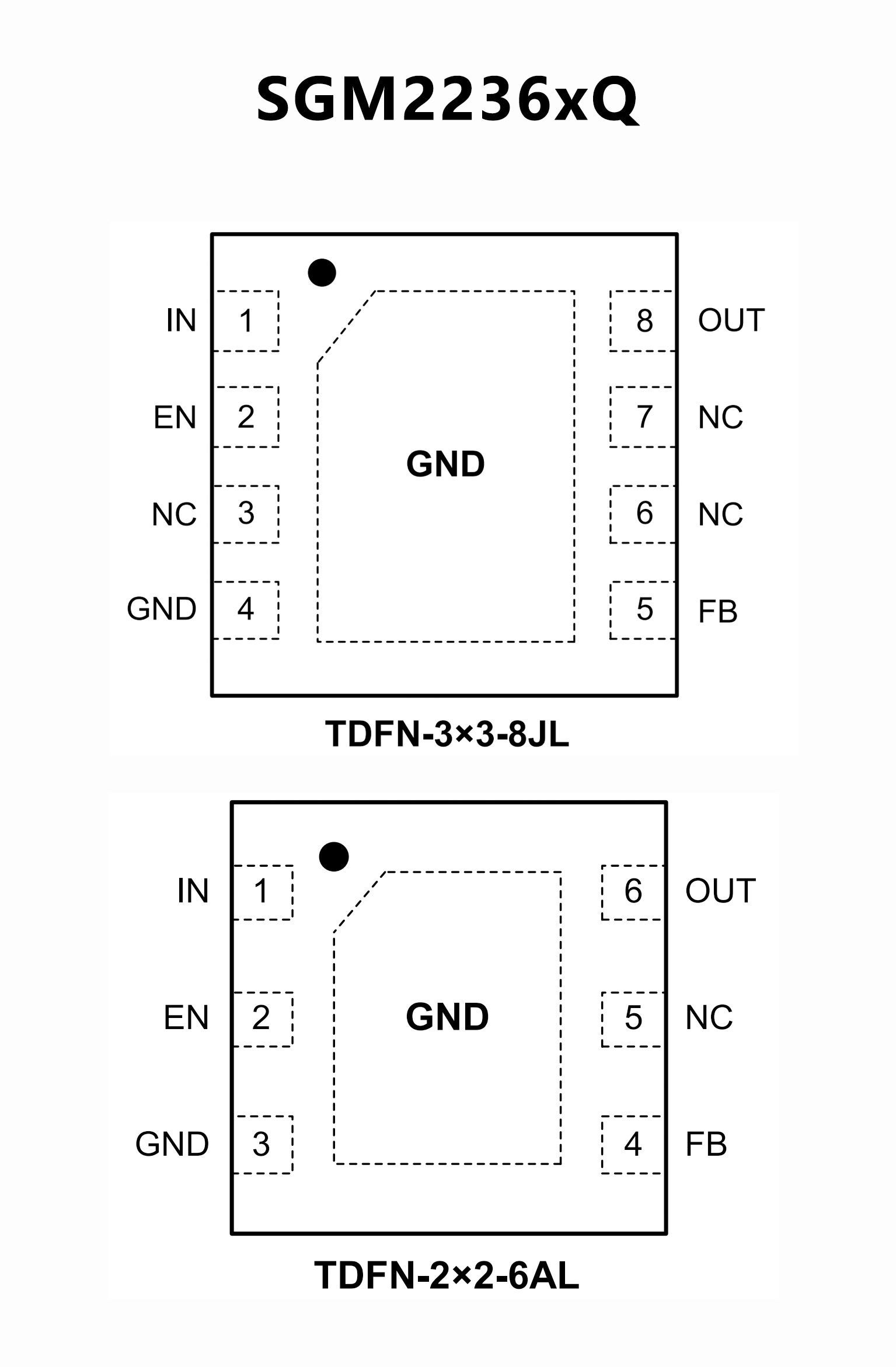

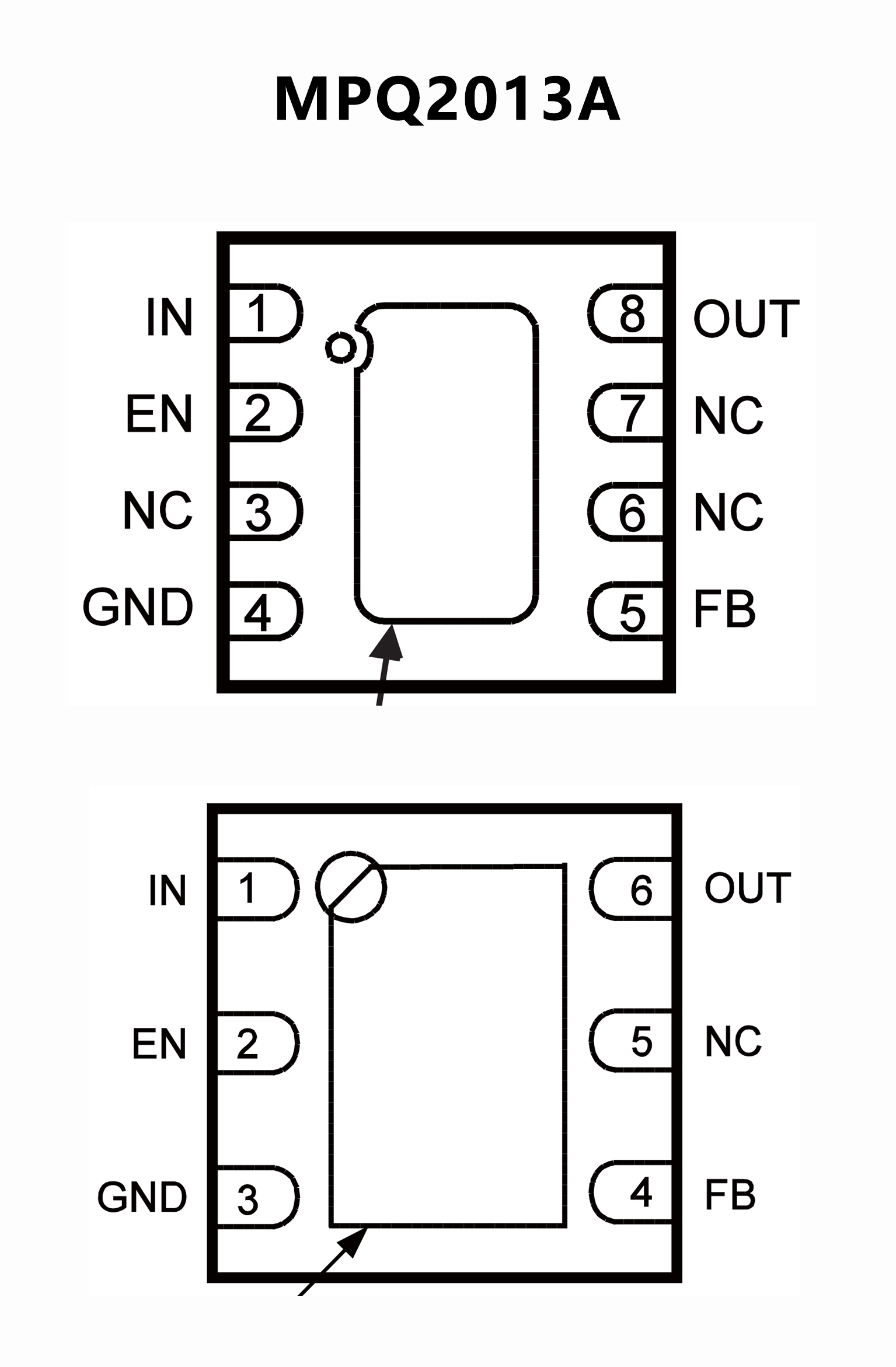

PIN CONFIGUTION
