Precision Adjustable Current Limited Power Distribution Switches, SGM2551 Replace RT9722.
SGM2551
SGM2551.pdf
SGM2551.pdfFEATURES
• Up to 1.5A Maximum Load Current
• Meets USB Current Limiting Requirements
• Adjustable Current Limit: 100mA to 1.7A
• Fast Over-Current Response: 2μs
• 90mΩ High-side MOSFET
• No Reverse Leakage Current of High-side MOSFET
• Reverse Input-Output Voltage Protection
• Operating Range: 2.5V to 5.5V
• Built-in Soft-Start Function

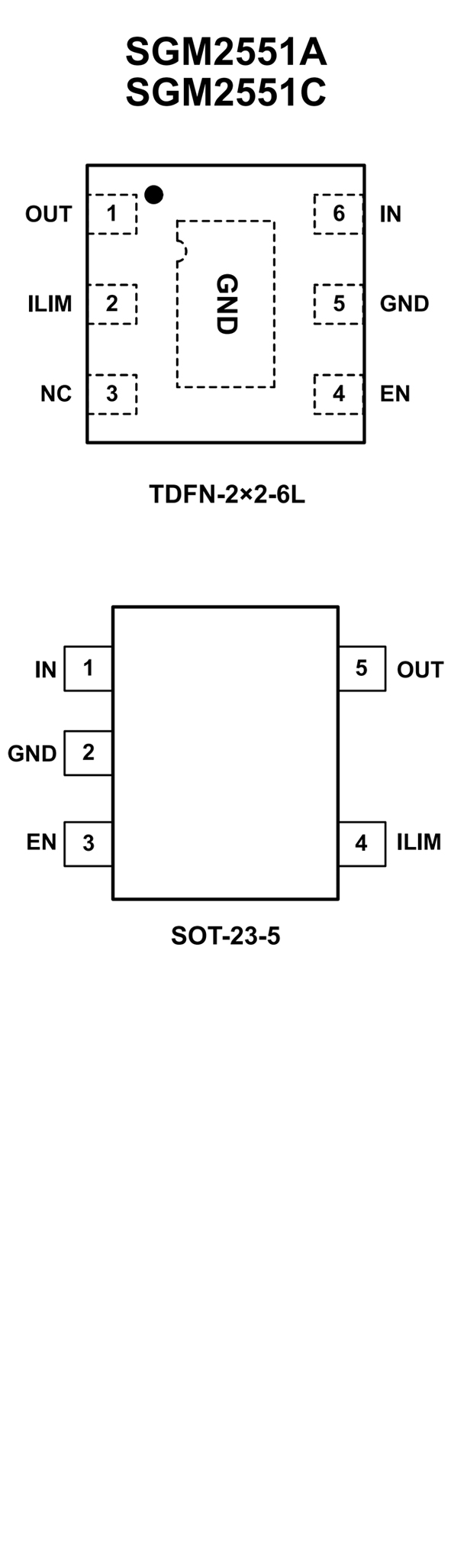

PIN CONFIGUTION
CROSS
FEATURES
• Programmable Current Limit : 0.2A to 1.5A
• Low Quiescent Current : 10μA
• Low Shutdown Current : 0.1μA
• 145mΩ Switch On Resistance
• Operating Voltage Range : 2.4V to 5.5V
• Under Voltage Lockout
• Thermal Shutdown Protection
• RoHS Compliant and Halogen Free

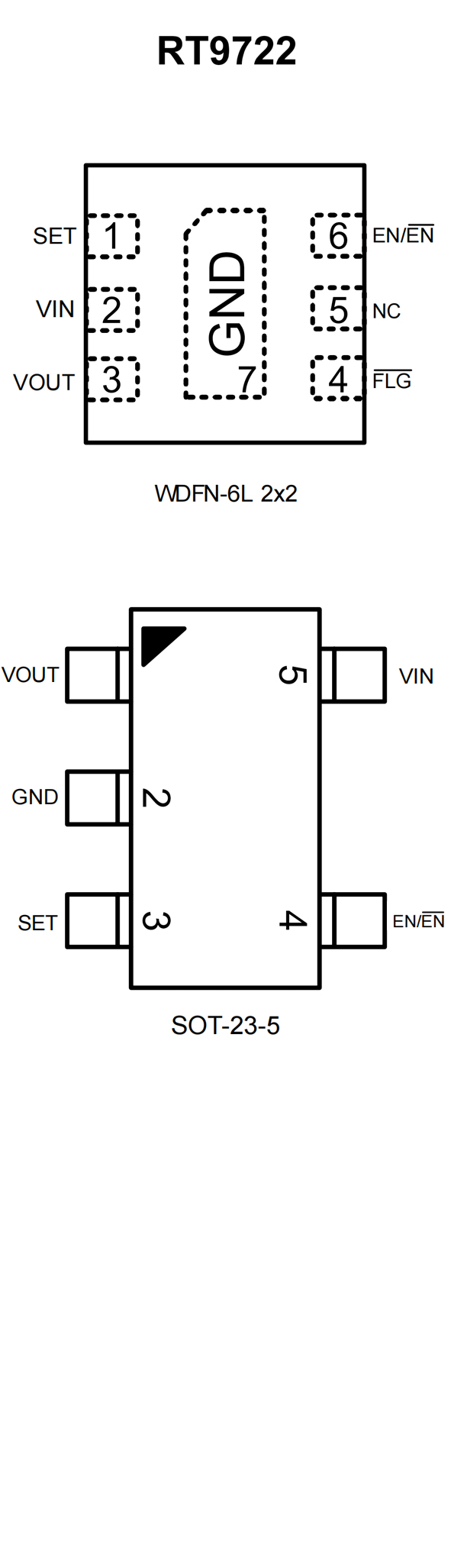

PIN CONFIGUTION
