5.5V, 10A, 4mΩ On-Resistance Load Switch, SGM25665 Replace TPS22998.
SGM25665
SGM25665.pdf
SGM25665.pdfFEATURES
• Single Channel Load Switch
• VIN Voltage Range: 0.1V to 5.5V
• VBIAS Voltage Range: 1.5V to 5.5V
• Maximum Continuous Current: 10A
• On-Resistance: 4mΩ (TYP)
• Tri-State Pin with Configurable Slew Rate
• Low Power Consumption:
On-State (IQ): 12μA (TYP)
Off-State (ISD): 2μA (TYP)
• Thermal Shutdown
• Available in a Green UTQFN-1.5×2-10L Package

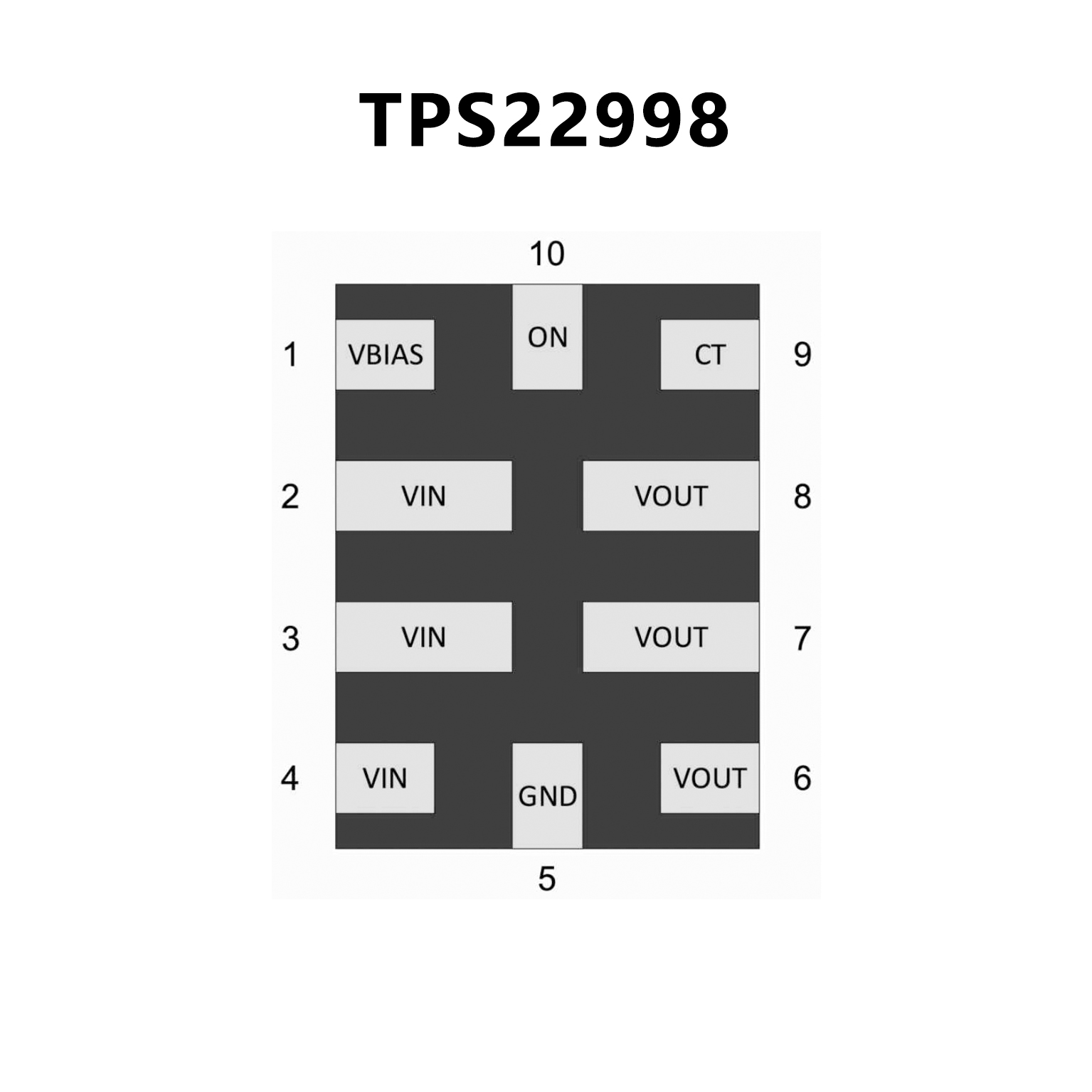

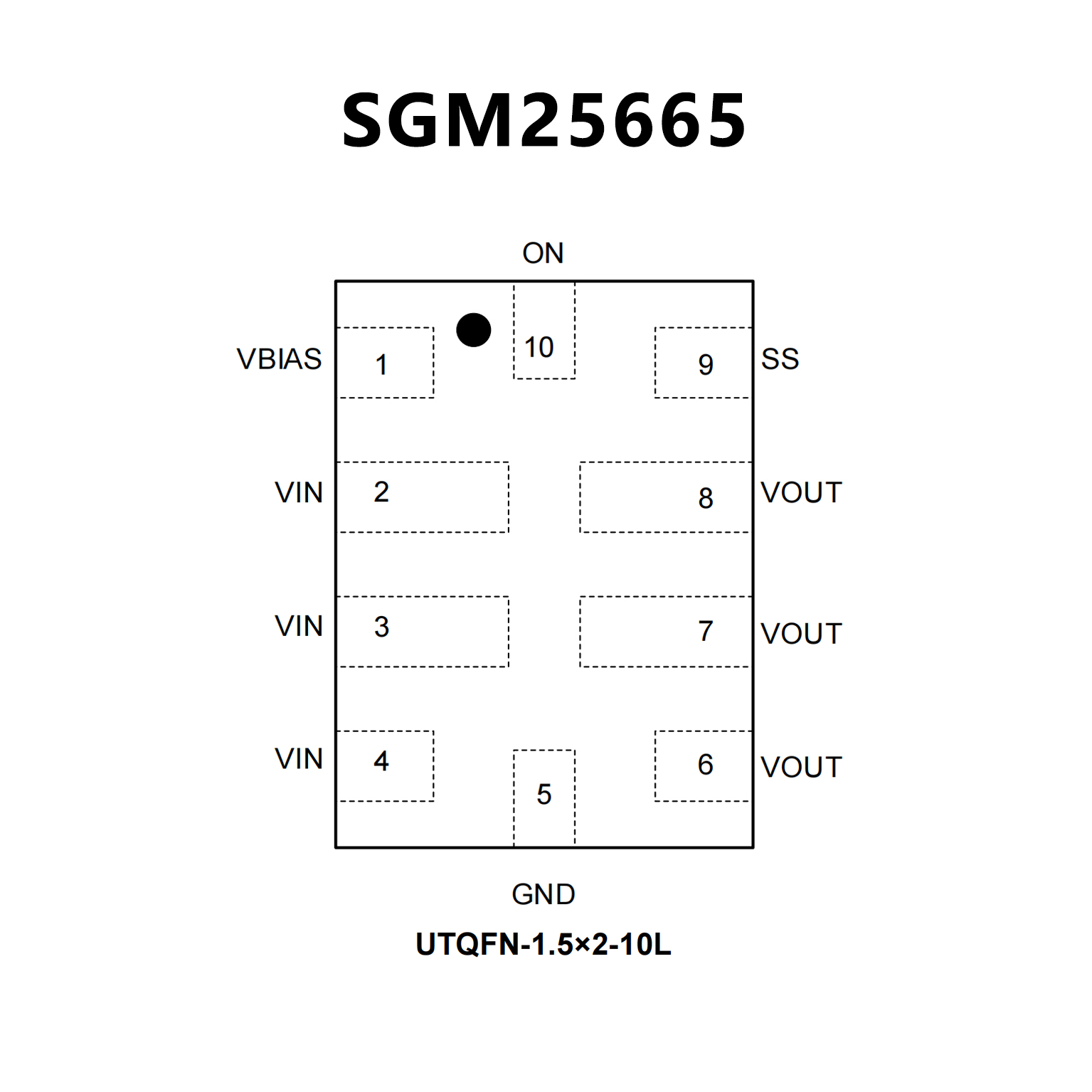

PIN CONFIGUTION
CROSS
FEATURES
• Input operating voltage range (VIN): 0.2 V–5.5 V
• Bias voltage range: 2.2 V–5.5 V
• Maximum continuous current: 10 A
• ON-Resistance (RON): 4 mΩ (typ.)
• Adjustable slew rate with tri-state pin
• Quick Output Discharge (QOD): 50 Ω
• Thermal shutdown
• Low power consumption:
– ON state (IQ): 15 μA (typ.)
– OFF state (ISD): 3 μA (typ.)
PIN CONFIGUTION
