Current Limited IC, VIN2.4V~5.5V, ILIM ADJ, Active High, SOT23-5, Replace ETA6010
SGM2576
SGM2576.pdf
SGM2576.pdfFEATURES
• 100mΩ (TYP) High-side N-Channel MOSFET
• Programmable Current Limit Range: 0.4A to 2.5A
1500mA ± 190mA@RILIM = 4.53kΩ
• Input Voltage Range: 2.5V to 5.5V
• Quiescent Current: 23μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• Soft-Start Function
• Temperature Shutdown Protection
• Under-Voltage Lockout Protection for VIN
• No Reversed Leakage Current (Reverse Blocking)
• 500kΩ Pull-Down Resistor at EN Pin
• Available in Green SOT-23-5 Package

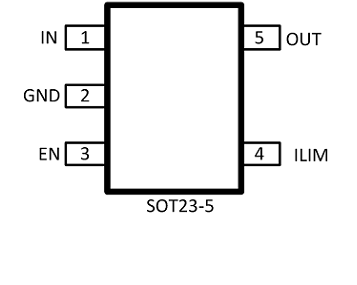

PIN CONFIGUTION
CROSS
FEATURES
• Up to 1.3A Max Load current
• Accurate Current-limit threshold: +/-5%
• Programmable Current-limit : 75mA to 1.3A
• Fast Over-Current Response
• Reversed Current blocking
• Thermal Shutdown, UVLO protection
• Tiny SOT23-5L Package

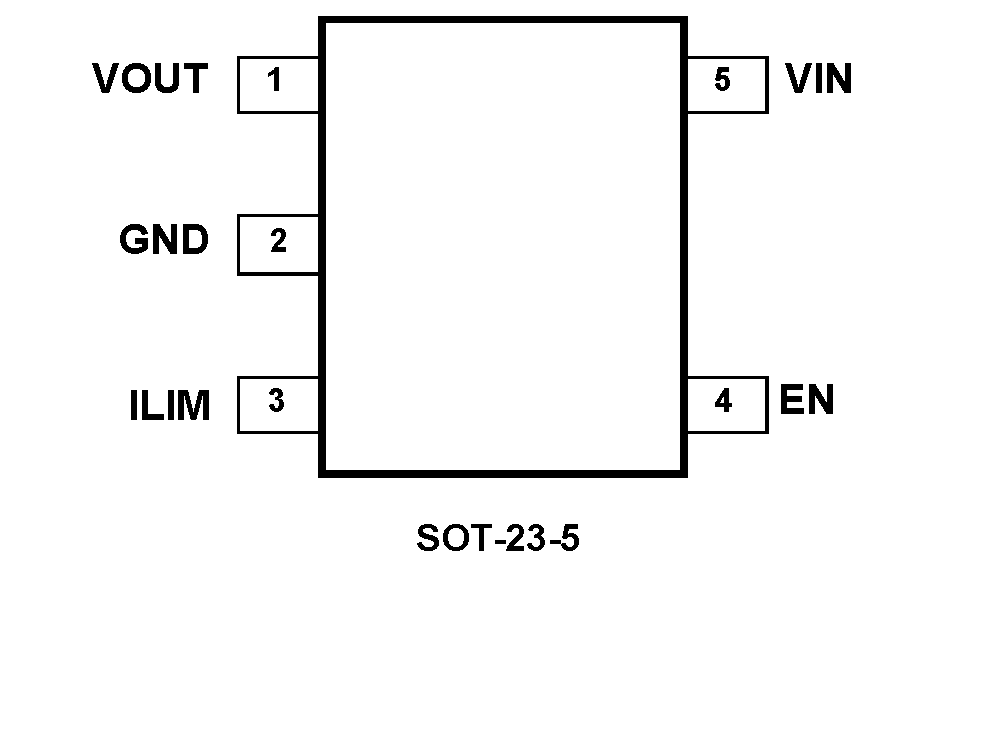

PIN CONFIGUTION
