• Input Voltage Range: 0.6V to VBIAS

• VBIAS Voltage Range: 2.5V to 5.7V

• Dual-Channel Load Switch

• On-Resistance:

    RON = 16mΩ (TYP) at VINx = 3.3V, VBIAS = 5V

    RON = 16.1mΩ (TYP) at VINx = 1.2V, VBIAS = 2.5V

• Continuous Current: 6A (MAX)/Channel

• Quiescent Current:

    Both Channels: 22.3μA (TYP) at VINx = VBIAS = 5V

    Single Channel: 22μA (TYP) at VINx = VBIAS = 5V

• Programmable Output Ramp-Up Time

• Thermal Shutdown

• SGM2596D: Quick Output Discharge (QOD)

• -40℃ to +105℃ Operating Temperature Range

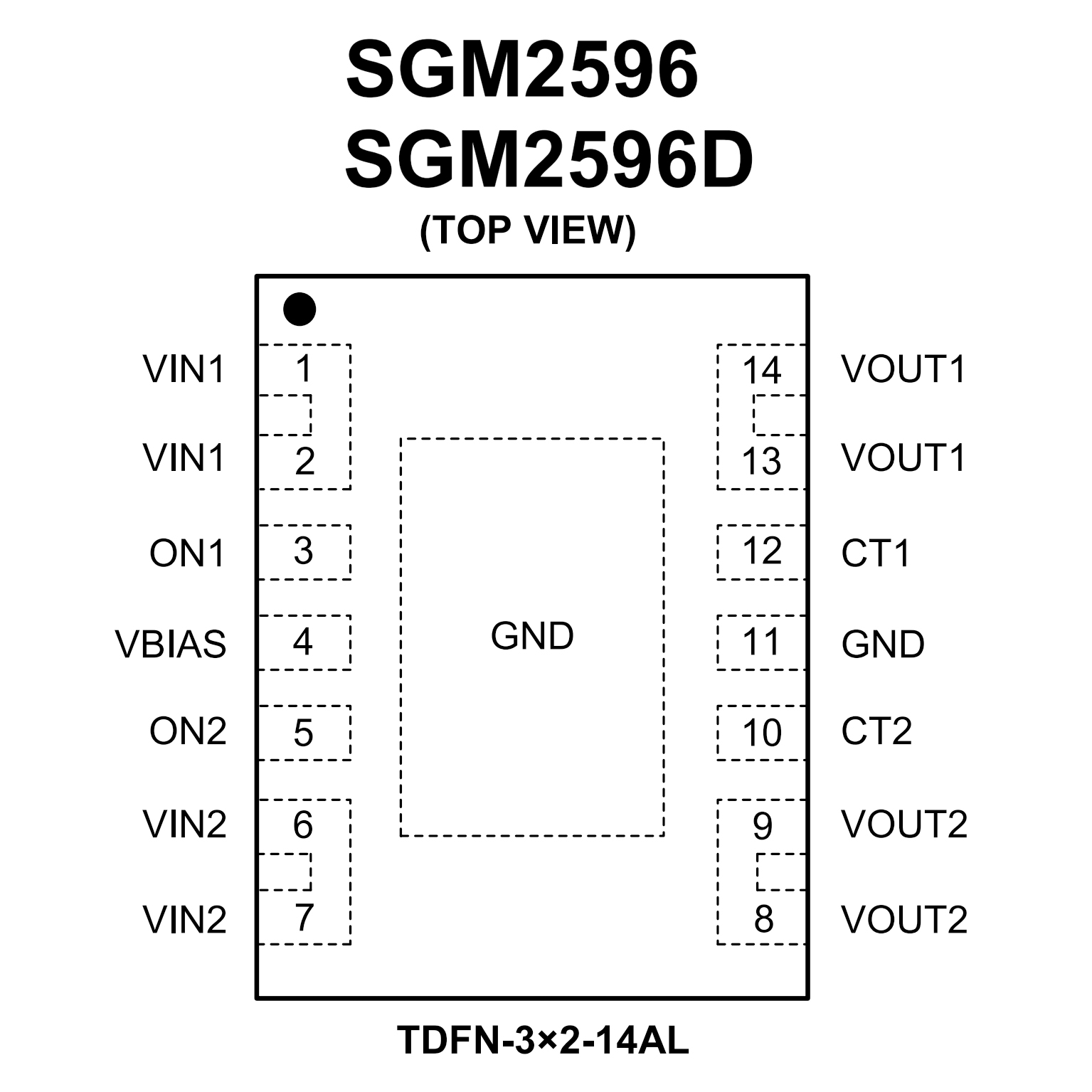

• Available in a Green TDFN-3×2-14AL Package
