• Input Voltage Range: 0.6V to VBIAS
• VBIAS Voltage Range: 2.5V to 5.7V
• Dual-Channel Load Switch
• On-Resistance:
RON = 16mΩ (TYP) at VINx = 3.3V, VBIAS = 5V
RON = 16.1mΩ (TYP) at VINx = 1.2V, VBIAS = 2.5V
• Continuous Current: 6A (MAX)/Channel
• Quiescent Current:
Both Channels: 22.3μA (TYP) at VINx = VBIAS = 5V
Single Channel: 22μA (TYP) at VINx = VBIAS = 5V
• Programmable Output Ramp-Up Time
• Thermal Shutdown
• SGM2596D: Quick Output Discharge (QOD)
• -40℃ to +105℃ Operating Temperature Range

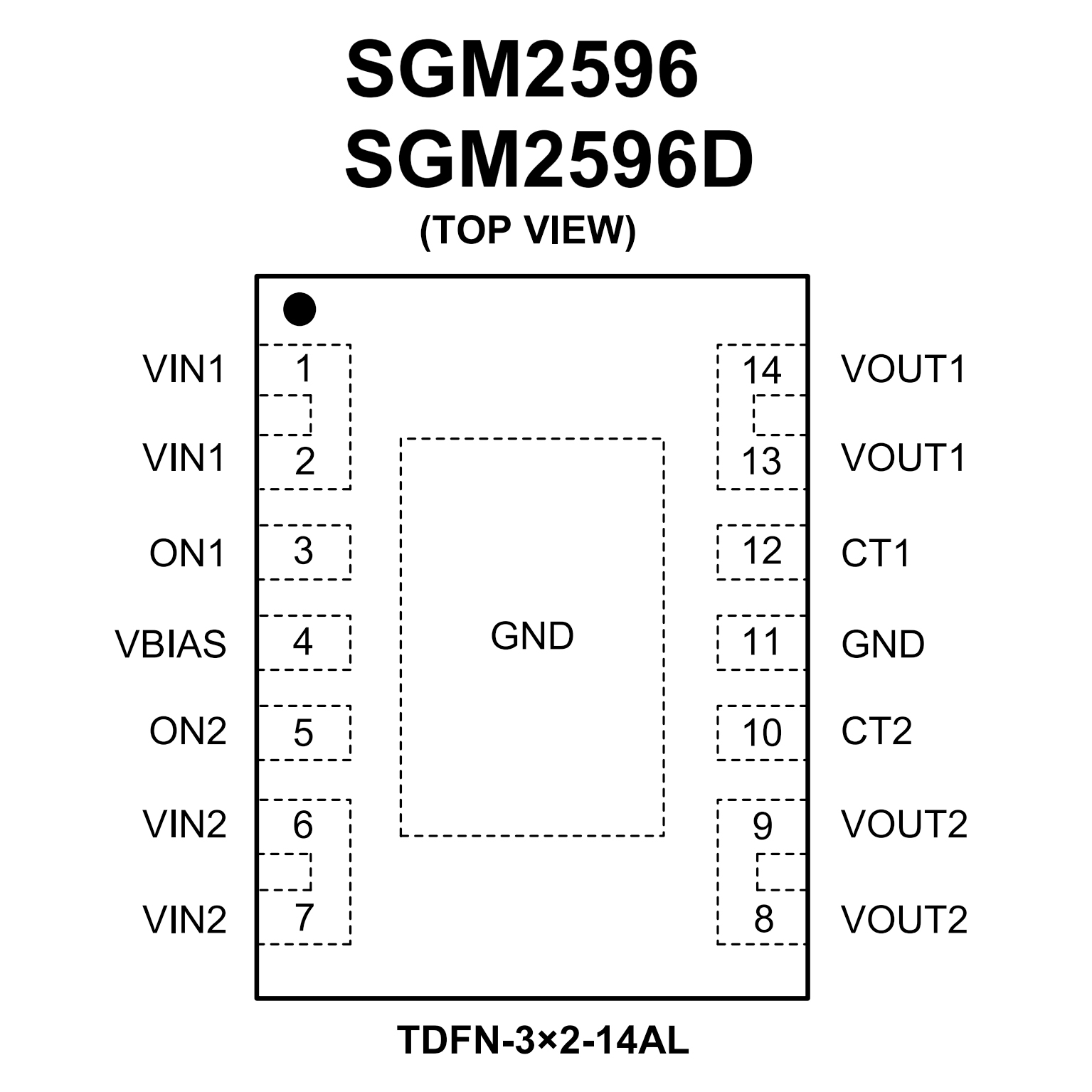

• Available in a Green TDFN-3×2-14AL Package

• Integrated dual channel load switch
• Input voltage range : 0.8V to 5.5V
• Ultra low RON resistance 20mΩ per channel
• 6A maximum continuous switch current per
channel
• Low quiescent current 75uA (dual channel)
• Adjustable output rising time
• Quick Output Discharge (QOD)
• DFN3X2 14-pin package with Thermal Pad
• Bias voltage supports : 2.5V and 5.5V
• Over Temperature Protection
