Quad, Wide-Bandwidth SPDT Video Analog Switch,SGM330A-YTS/TR Replace CBT3257APW.
SGM330A-YTS
SGM330A-YTS.pdf
SGM330A-YTS.pdfFEATURES
• Single Supply Voltage Range: 2.7V to 5.5V
• -3dB Bandwidth: 500MHz
• Low On-Resistance: 12Ω (TYP)
• Low Crosstalk: -60dB (TYP) at 10MHz
• Off-Isolation: -58dB at 10MHz
• Power Consumption: ICC = 0.1μA (TYP)
• Rail-to-Rail Input and Output Operation
• Fast Switching Times
• TTL/CMOS Compatible
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-16, TSSOP-16 and
SSOP-16 Packages

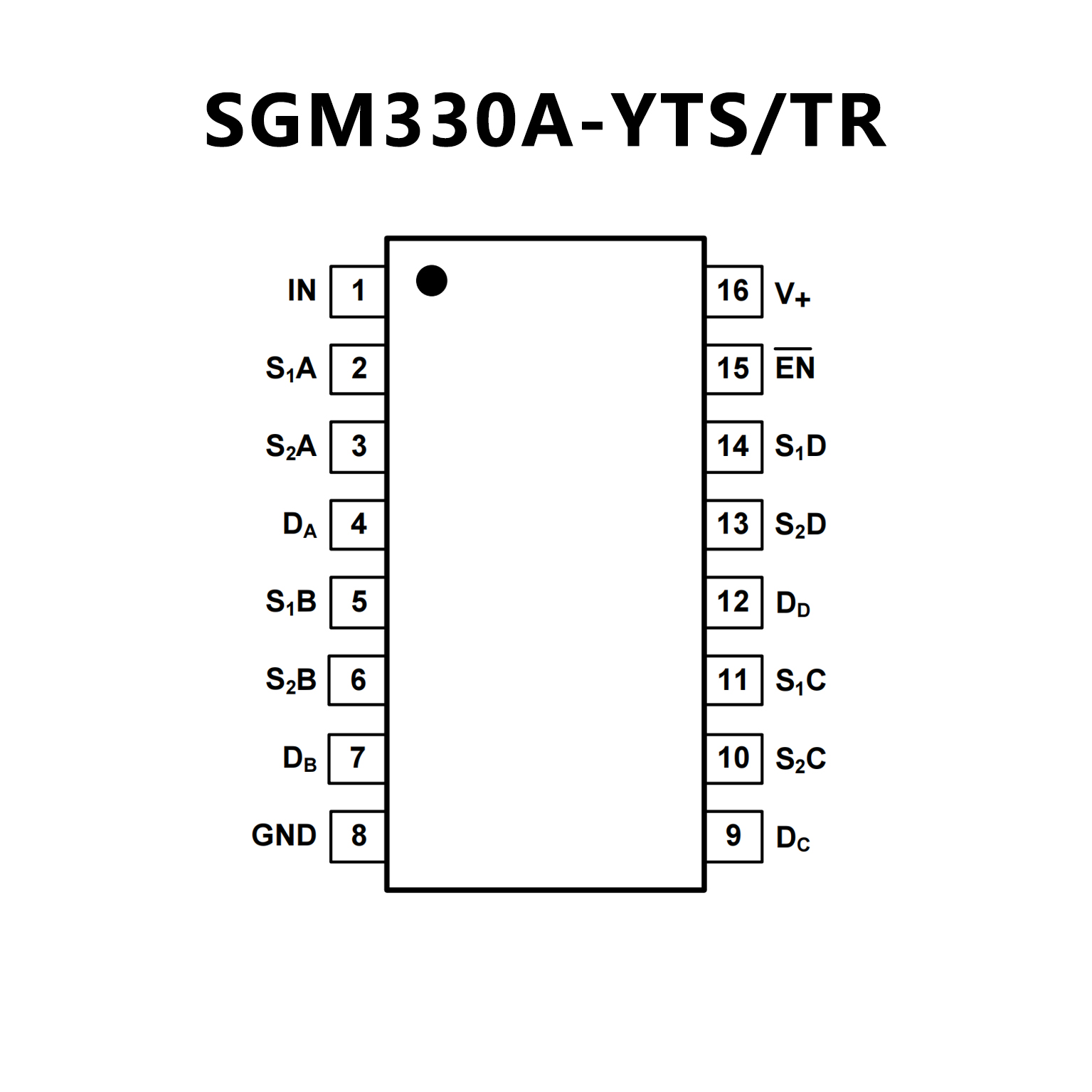

PIN CONFIGUTION
CROSS
FEATURES
• 5 Ω switch connection between two ports
• Minimal propagation delay through the switch
• Direct interface with TTL levels
• Overvoltage tolerant control inputs to 5.5 V
• Latch-up protection exceeds 100 mA per
JEDEC standard JESD78 class II level A
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
• Multiple package options
• Specified from -40 °C to +85 °C

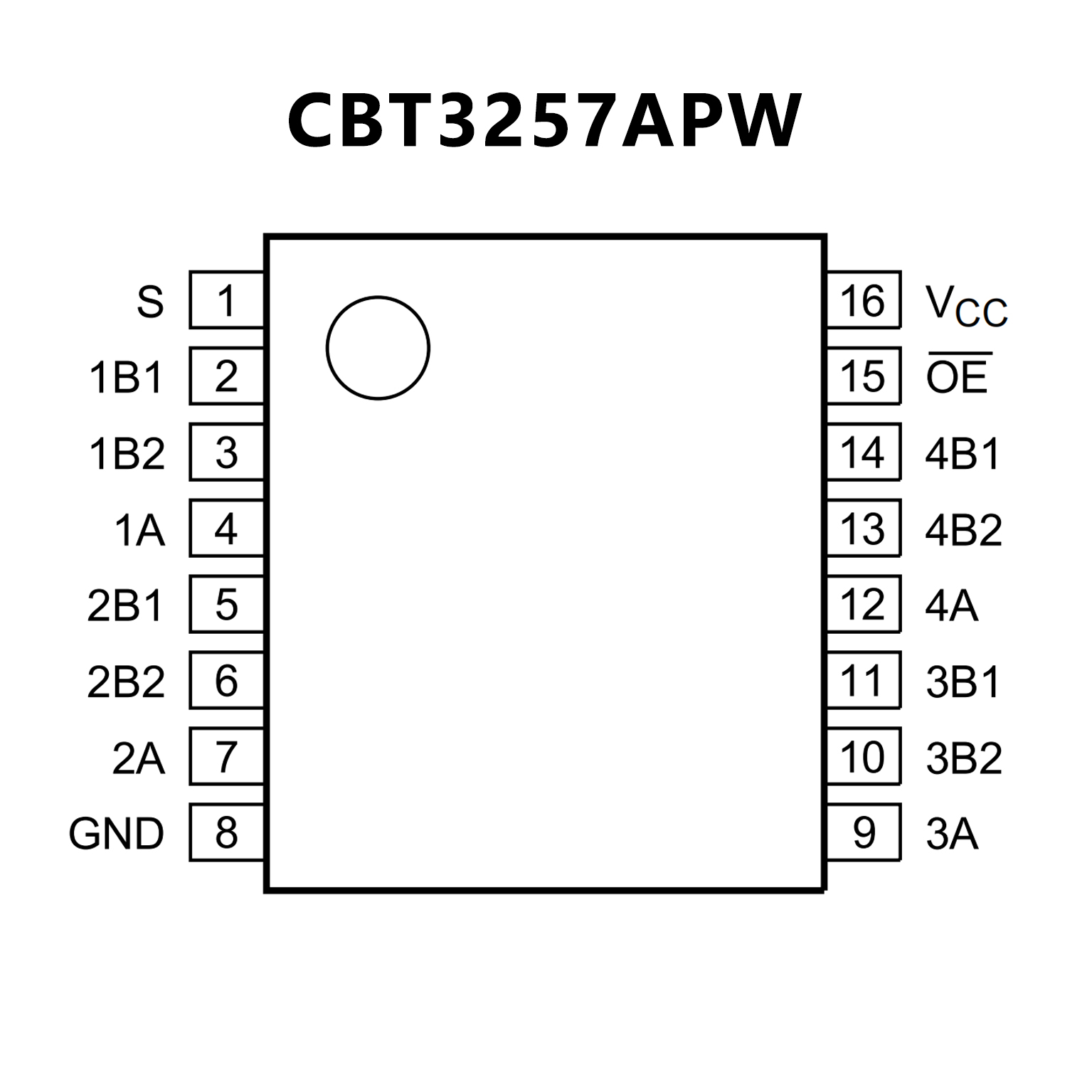

PIN CONFIGUTION
