• Reference Voltage Tolerance at +25℃:

  SGM431: 1% (Standard Grade)

  SGM431B: 0.5% (B Grade)

• Adjustable Output Voltage: VREF to 36V

• High Stability under Capacitive Load

• Typical Temperature Drift: 5mV

• Low Output Noise

• Typical Output Impedance: 0.1Ω

• Sink-Current Capability: 1mA to 100mA

• Operating Junction Temperature Range:

  -40℃ to +125℃

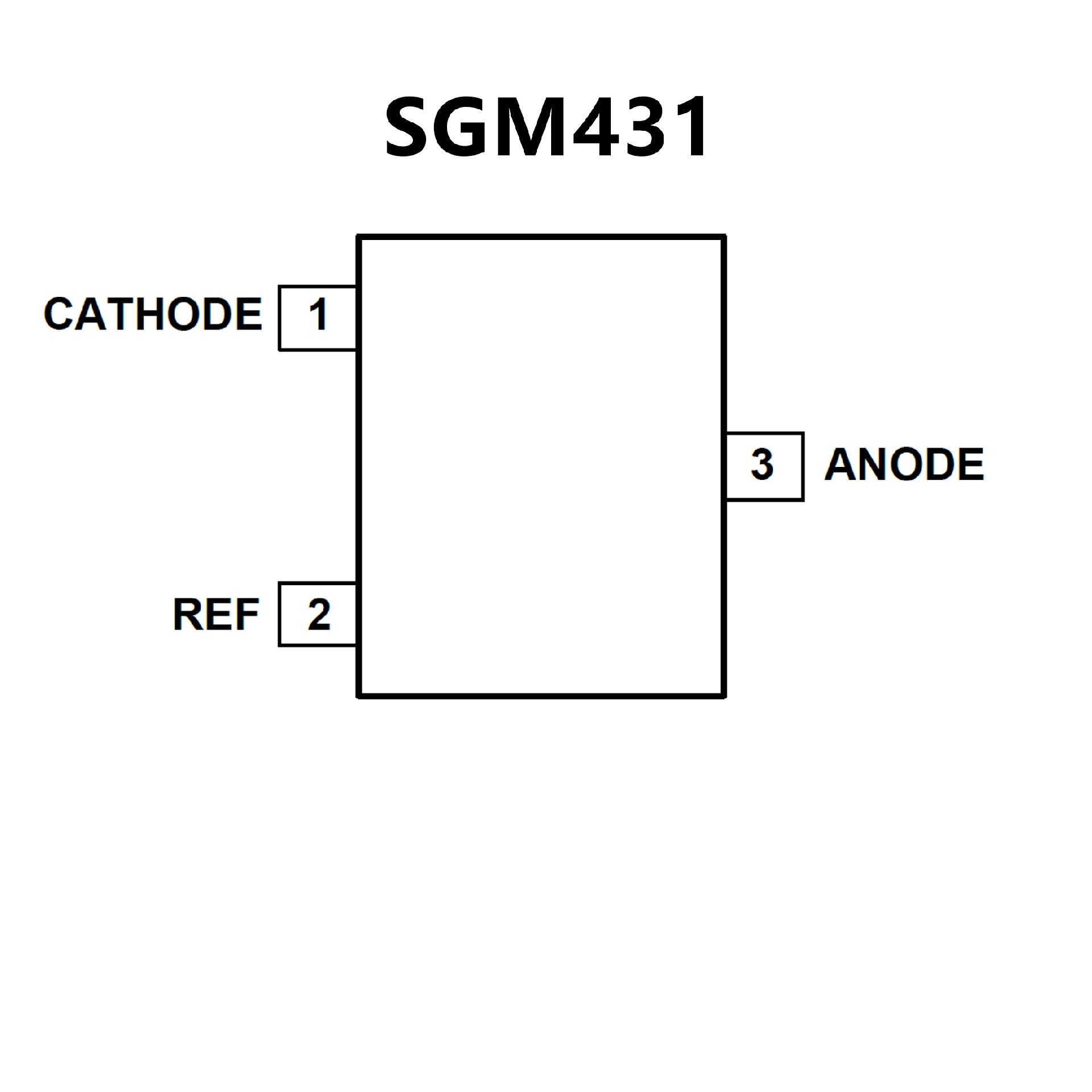

• The SGM431 is available in Green SOIC-8, SOT-23,

  SOT-89-3, SOT-23-5 and SC70-6 Packages

• The SGM431B is available in Green SOIC-8, SOT-23,

  SOT-89-3 and SOT-23-5 Packages
