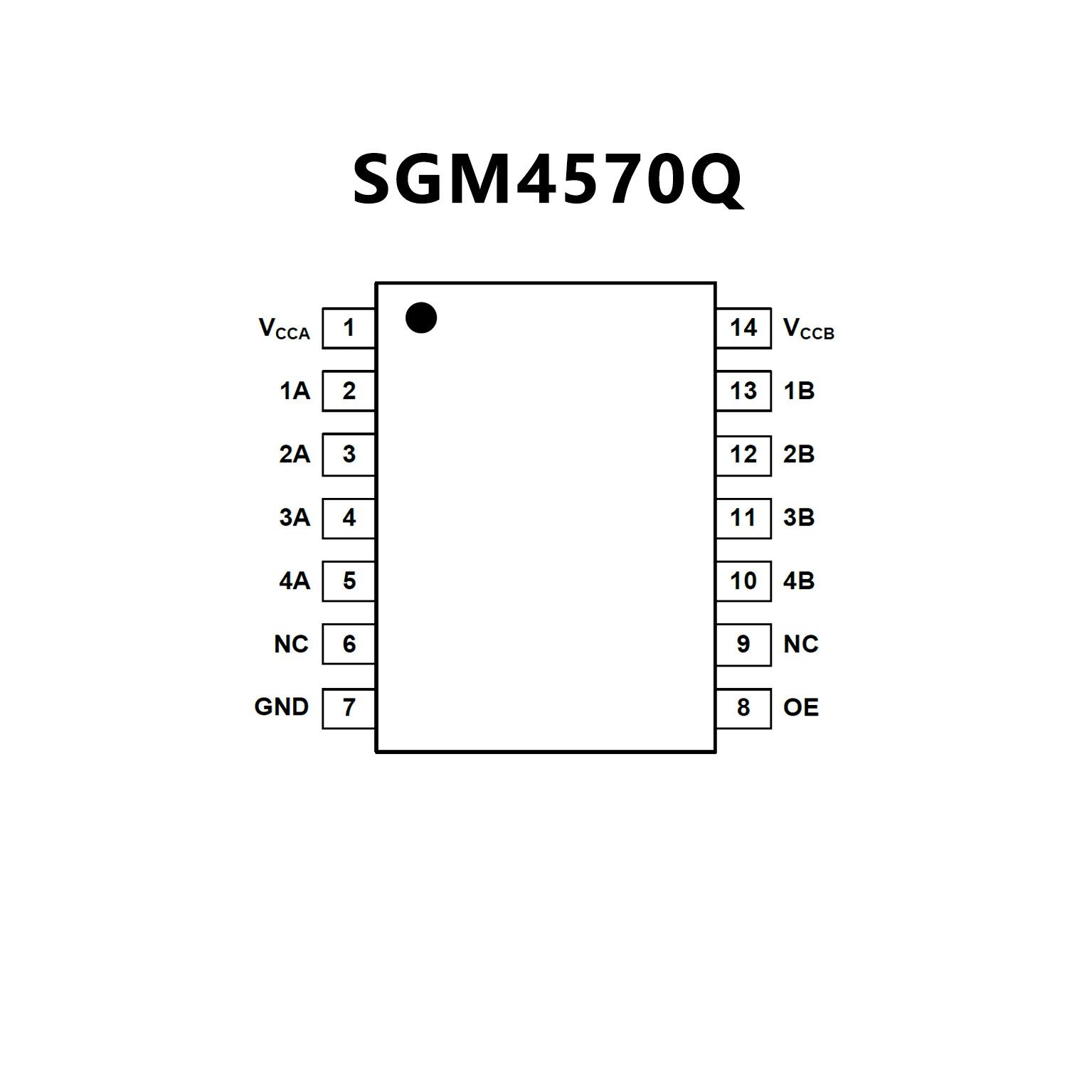

SGM4570QTS14G.pdf• AEC-Q100 Qualified for Automotive
Applications Device Temperature Grade 1
TA = -40℃ to +125℃
• VCCA Supply Voltage Range: 1.65V to 3.6V
• VCCB Supply Voltage Range: 2.3V to 5.5V
• Inputs Accept Voltages up to 5.5V
• Push-Pull Data Rates: 24Mbps (MAX)
• Support Partial Power-Down Mode
• Available in a Green TSSOP-14 Package

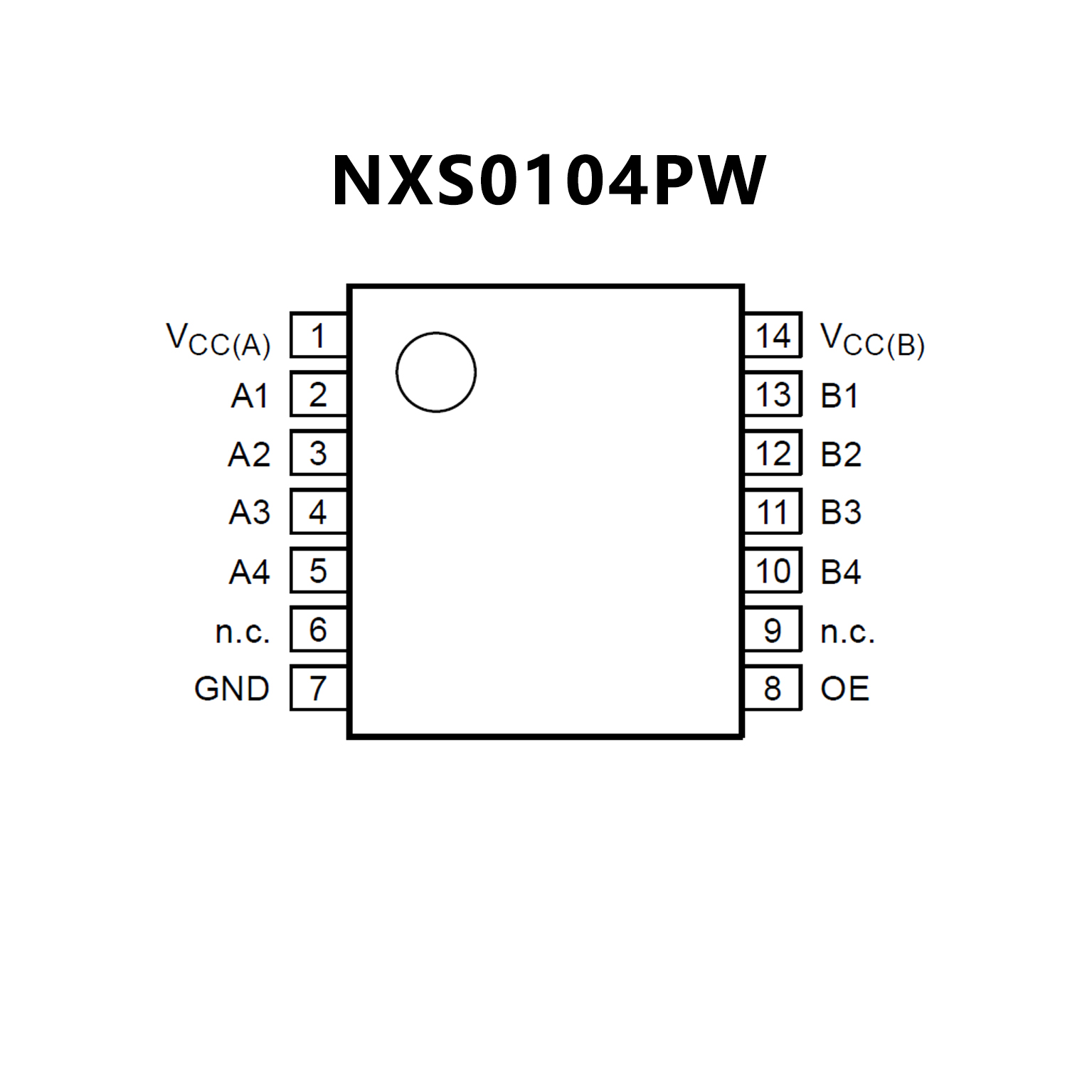

• Automotive product qualification
in accordance with AEC-Q100 (Grade 1)
• Specified from -40 °C to +85 °C
and from -40 °C to +125 °C
• Wide supply voltage range:
• VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
• Maximum data rates:
• Push-pull: 24 Mbps
• IOFF circuitry provides partial
Power-down mode operation
• Inputs accept voltages up to 5.5 V
• ESD protection:
• HBM: ANSI/ESDA/Jedec JS-001
Class 2 exceeds 2.5 kV for A port
• HBM: ANSI/ESDA/Jedec JS-001
Class 3B exceeds 15 kV for B port
• MIL-STD-883, method 3015 Class
2 exceeds 2.5 kV for A port
• MIL-STD-883, method 3015
Class 3B exceeds 15 kV for B port
• IEC61000-4-2 contact discharge
exceeds 8000 V for B port
• Latch-up performance exceeds
100 mA per JESD 78B Class II
• Multiple package options
• DHVQFN package with Side-Wettable
Flanks enabling Automatic Optical
Inspection (AOI) of solder joints
