4-Bit Fixed Direction Voltage-Level Translator with SchmittTrigger Inputs and 3-State Outputs, P2P TXU0104DTRR.
SGM4575-04XXXU12G/TR.pdfCROSS
FEATURES
• Fully configurable dual-rail design allows each port
to operate from 1.1V to 5.5V
• Up to 200Mbps support for 3.3V to 5.0V
• Schmitt-trigger inputs allows for slow and noisy
inputs
• Inputs with integrated static pull-down resistors
prevent channels from floating
• High drive strength (up to 12mA at 5V)
• Low power consumption
– 2.5µA maximum (25°C)
– 6µA maximum (–40°C to 125°C)
• VCC isolation and VCC disconnect (Ioff-float) feature
– If either VCC input is <100 mV or disconnected, all
outputs are disabled and become high impedance
• Ioff supports partial-power-down mode operation
• Control logic (OE) with VCC(MIN) circuitry allows for
control from either A or B port
• TXU0104 supports active high OE, TXUN0104
supports active low OE
• Pinout compatible with TXB family level shifters
• Available in other variants that support common
applications: TXU0204, TXU0304
• Operating temperature from –40°C to +125°C
• Latch-up performance exceeds 100mA per JESD
78, class II
• ESD protection exceeds JESD 22
– 2500V human-body model
– 1500V charged-device model

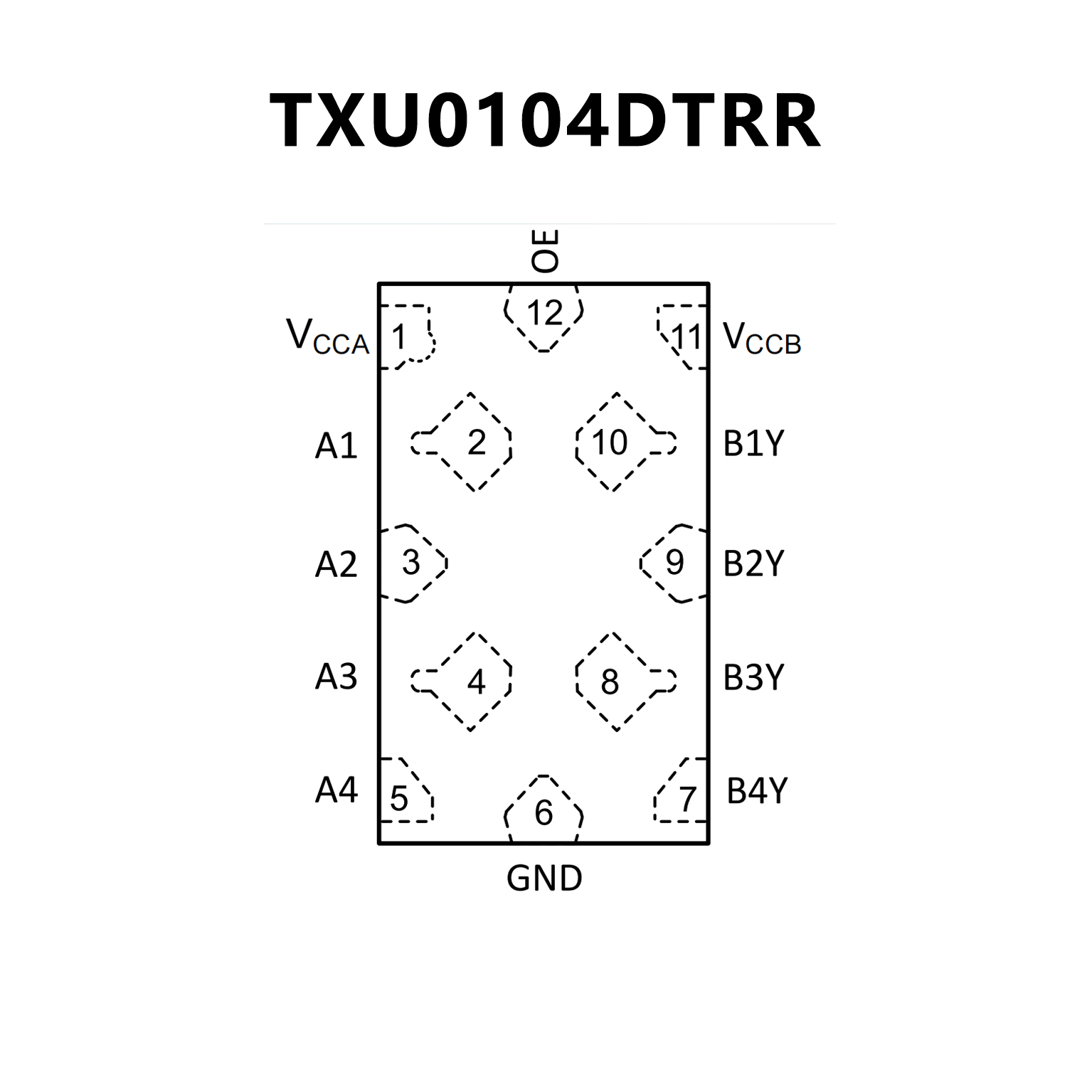

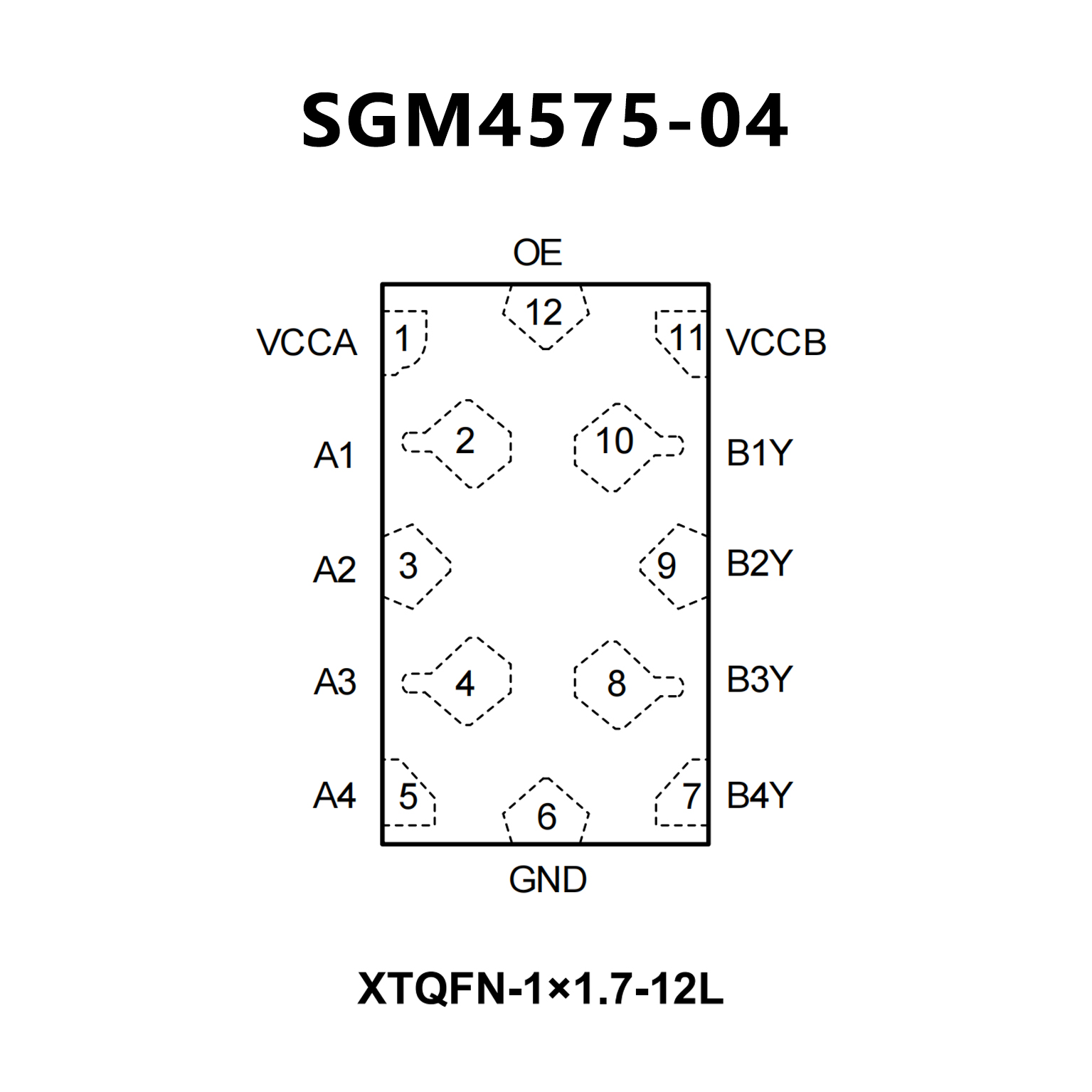

PIN CONFIGUTION
