Automotive 4-Bit Fixed Direction Voltage-Level Translator with Schmitt-Trigger Inputs and 3-State Outputs, P2P TXU0104QWBQARQ1.
SGM4575-04QTWB14G/TR
SGM4575-04QTWB14G/TR.pdf
SGM4575-04QTWB14G/TR.pdfFEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1 TA = -40℃ to +125℃
• VCCA Supply Voltage Range: 1.1V to 5.5V
• VCCB Supply Voltage Range: 1.1V to 5.5V
• Inputs Accept Voltages Higher than the Supply
Voltage and up to 5.5V
• Up to 200Mbps (TYP) Supporting for 3.3V to 5.0V
• Low Power Consumption
• 1.61µA (TYP) at +25℃
• Slow and Noisy Inputs are Allowed by Schmitt
Trigger Inputs
• Integrated Static Pull-Down Resistors for Inputs
Help the Channels Avoid Floating
• Outputs are Disabled when VCC ≤ 100mV or
Floating
• IOFF Allows Operation in Partial-Power-Down
Mode
• OE with VCC_MIN Circuitry Allows for Control from
Either A or B Port
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TQFN-2.5×3-14L and
TSSOP-14 Packages

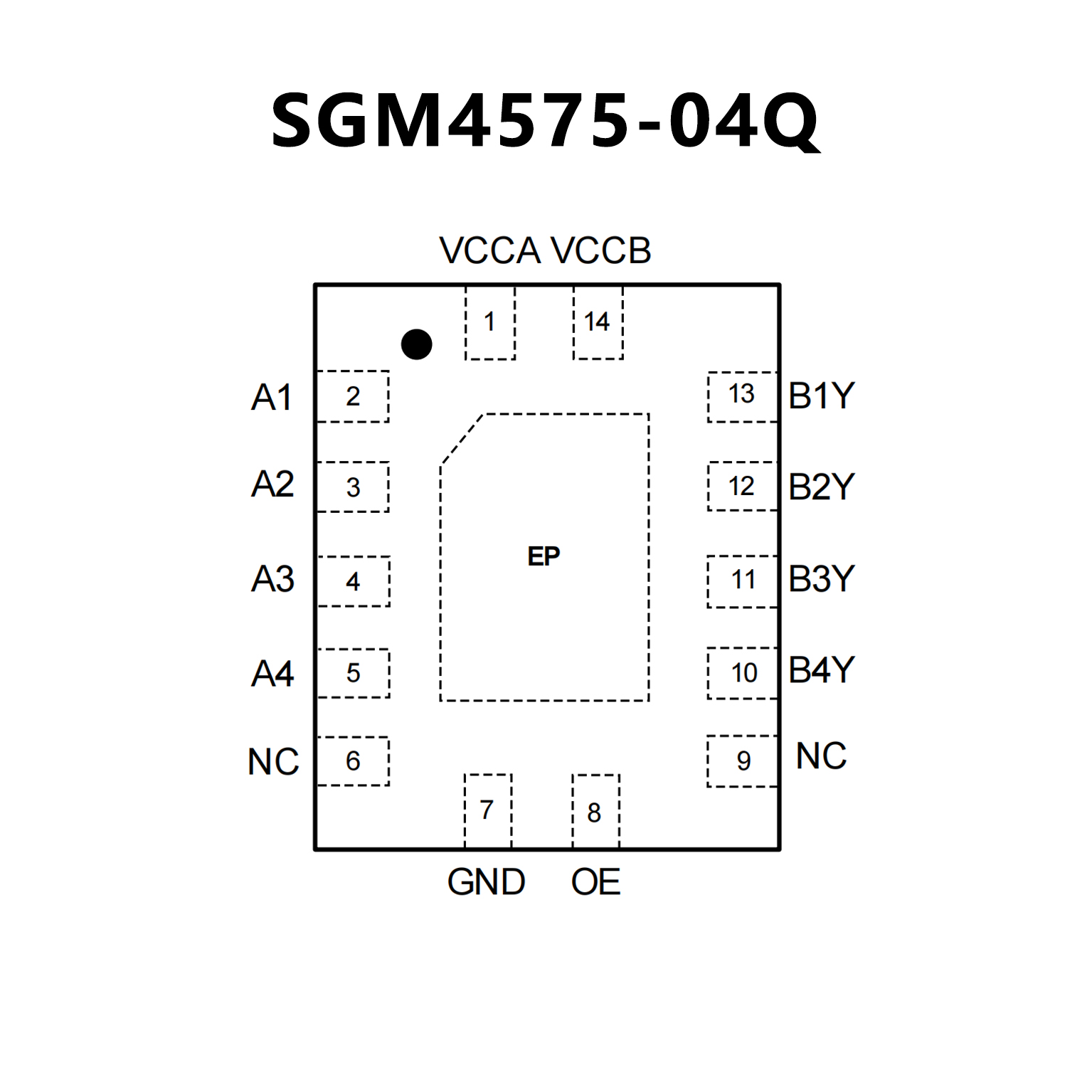

PIN CONFIGUTION
CROSS
FEATURES
• AEC-Q100 qualified for automotive applications
• Available in wettable flank QFN (WBQA) package
• Fully configurable dual-rail design allows each port
to operate from 1.1 V to 5.5 V
• Up to 200 Mbps support for 3.3 V to 5.0 V
• Schmitt-trigger inputs allows for slow and noisy
inputs
• Inputs with integrated static pull-down resistors
prevent channels from floating
• High drive strength (up to 12 mA at 5 V)
• Low power consumption
– 3 µA maximum (25°C)
– 6 µA maximum (–40°C to 125°C)
• VCC isolation and VCC disconnect (Ioff-float) feature
– If either VCC input is <100 mV or disconnected, all
outputs are disabled and become high impedance
• Ioff supports partial-power-down mode operation
• Control logic (OE) with VCC(MIN) circuitry allows for
control from either A or B port
• Pinout compatible with TXB family level shifters
• Available in other variants that support common
applications: TXU0204-Q1, TXU0304-Q1
• Operating temperature from –40°C to +125°C
• Latch-up performance exceeds 100 mA per JESD
78, class II
• ESD protection exceeds JESD 22
– 2500-V human-body model
– 1500-V charged-device model

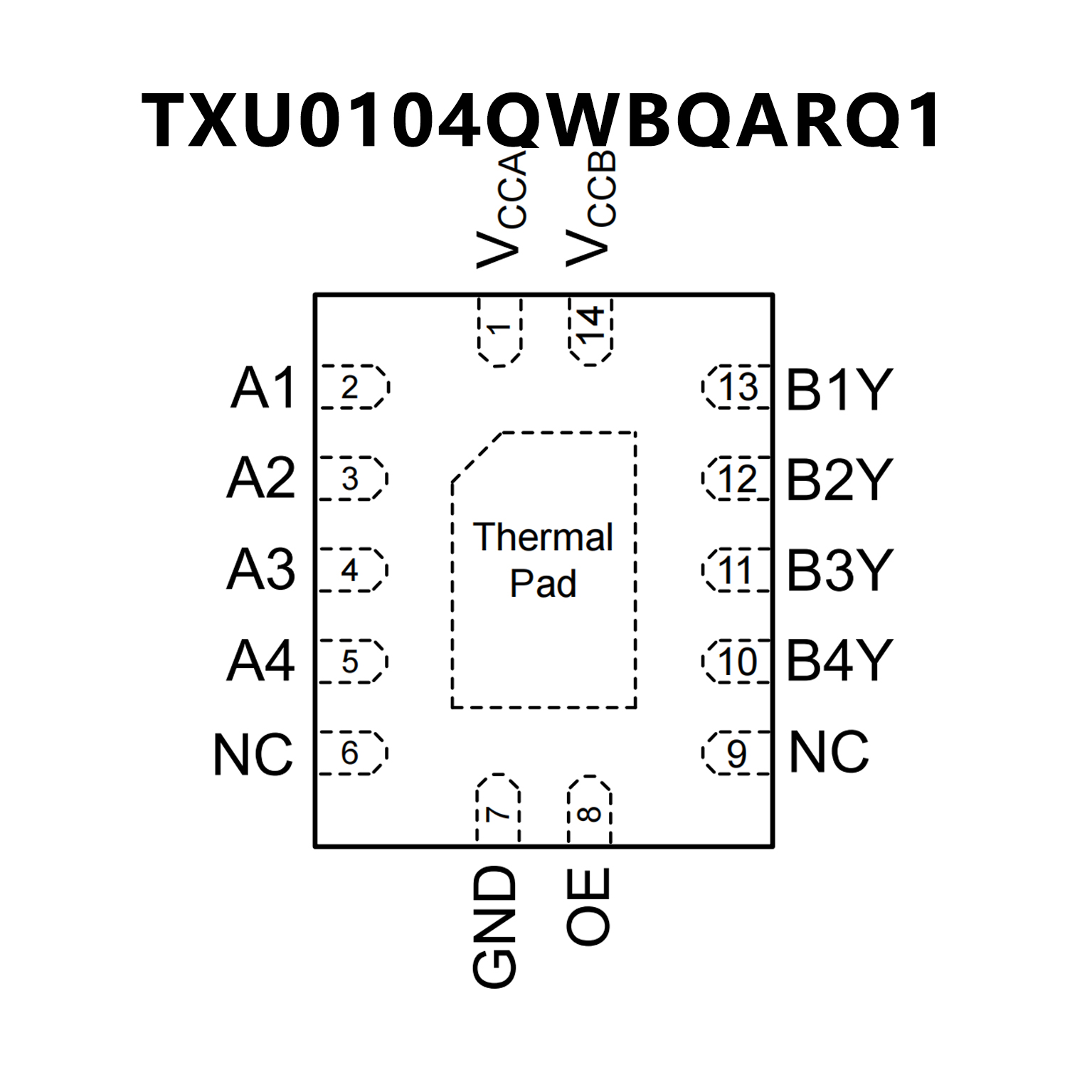

PIN CONFIGUTION
