High Voltage, CMOS Analog Switch, SGM4583YTS16G/TR Replace 74HC4053PW.
SGM4583YTS16
SGM4583YTS16.pdf
SGM4583YTS16.pdfFEATURES
• Guaranteed On-Resistance 51Ω with
±5V Supplies 84Ω with Single +5V Supply
• Guaranteed On-Resistance Match Between Channels
• Low Off-Leakage Current 10nA at +25℃
• Low On-Leakage Current 10nA at +25℃
• ±1.8V to ±5.5V Dual-Supply Operation
or +3.6V to +11V Single-Supply Operation
• TTL/CMOS-Logic Compatible
• Low Distortion: 0.02%
(RL = 600Ω, f = 20Hz to 20kHz)
• High Off-Isolation: -62dB (RL = 50Ω, f = 1MHz)
• Low Crosstalk: -85dB (RL = 50Ω, f = 1MHz)
• Extended Industrial
Temperature Range: -40℃ to +85℃
• Available in Green SOIC-16, SSOP-16,
TSSOP-16 and TQFN-3×3-16L Packages

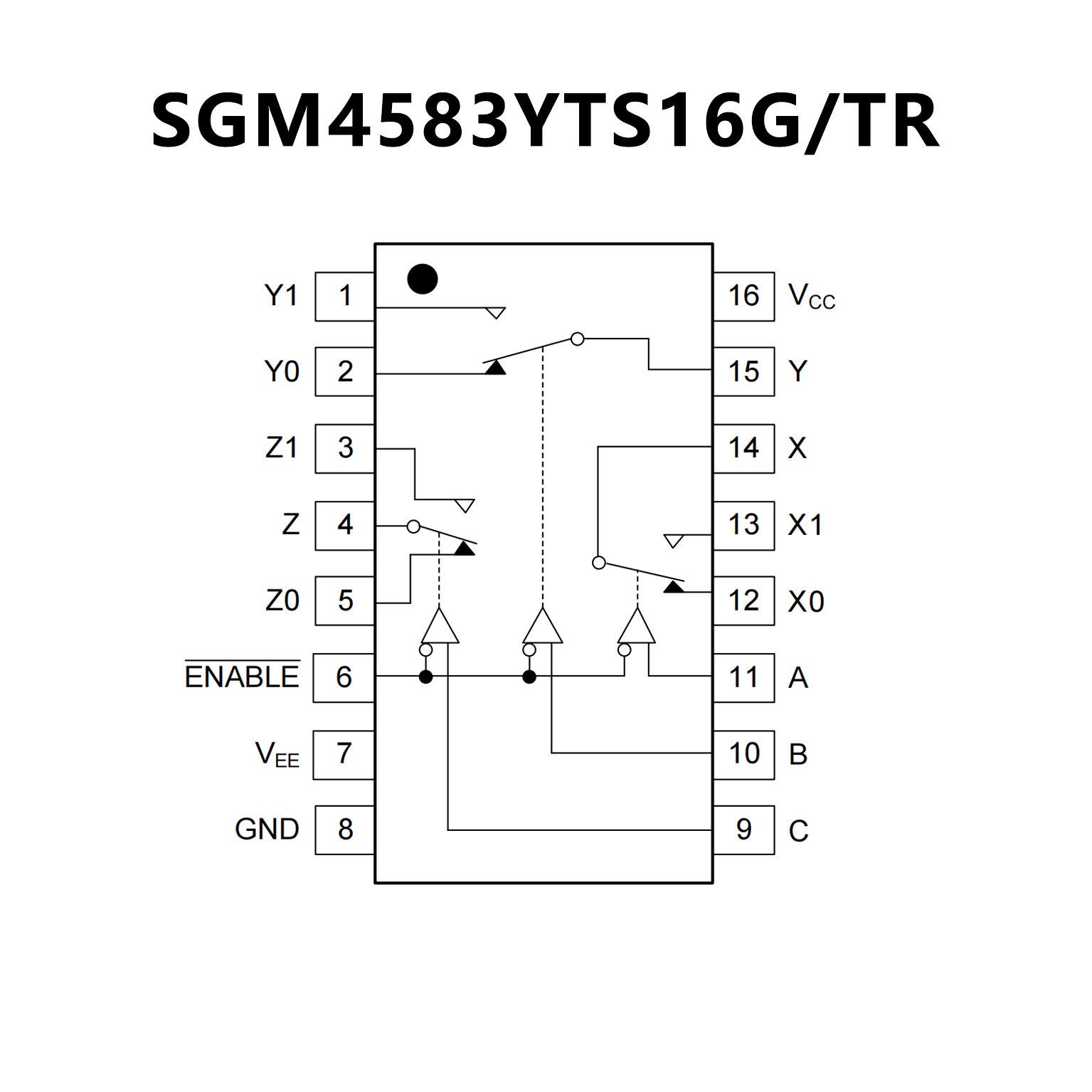

PIN CONFIGUTION
CROSS
FEATURES
• Wide analog input voltage range from -5 V to +5 V
• CMOS low power dissipation
• High noise immunity
• Latch-up performance exceeds 100 mA per JESD78
Class II Level B
• Complies with JEDEC standard:
• JESD8C (2.7 V to 3.6 V)
• JESD7A (2.0 V to 6.0 V)
• Low ON resistance:
• 80 Ω (typical) at VCC - VEE = 4.5 V
• 70 Ω (typical) at VCC - VEE = 6.0 V
• 60 Ω (typical) at VCC - VEE = 9.0 V
• Logic level translation: to enable 5 V logic to
communicate with ±5 V analog signals
• Typical ‘break before make’ built-in
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
• Multiple package options
• Specified from -40 °C to +85 °C and -40 °C to +125°C
PIN CONFIGUTION
