Low-Power, SPI-Compatible, 16-Bit ADC with Internal Reference and Temperature Sensor, SGM51610S P2P ADS1118.
SGM51610S
SGM51610S.pdf
SGM51610S.pdfFEATURES
• Four Single-Ended or Two Differential Inputs
• Wide Supply Range: 2V to 5.5V
• Low Current Consumption:
Continuous Mode: 207μA (TYP)
Single-Shot Mode: Automatic Power-Down
• Programmable Output Data Rate: 5SPS to 960SPS
• Single-Cycle Settling
• 50/60Hz Line Rejection
• Robust Encryption for Factory Mode Entry
• Internal PGA
• Internal Oscillator
• Internal Low-Drift Voltage Reference
• Internal Temperature Sensor:
0.2℃ (TYP) Error at 0℃ to 70℃
• Available in Green MSOP-10 and UTQFN-2×1.5-10L
Packages

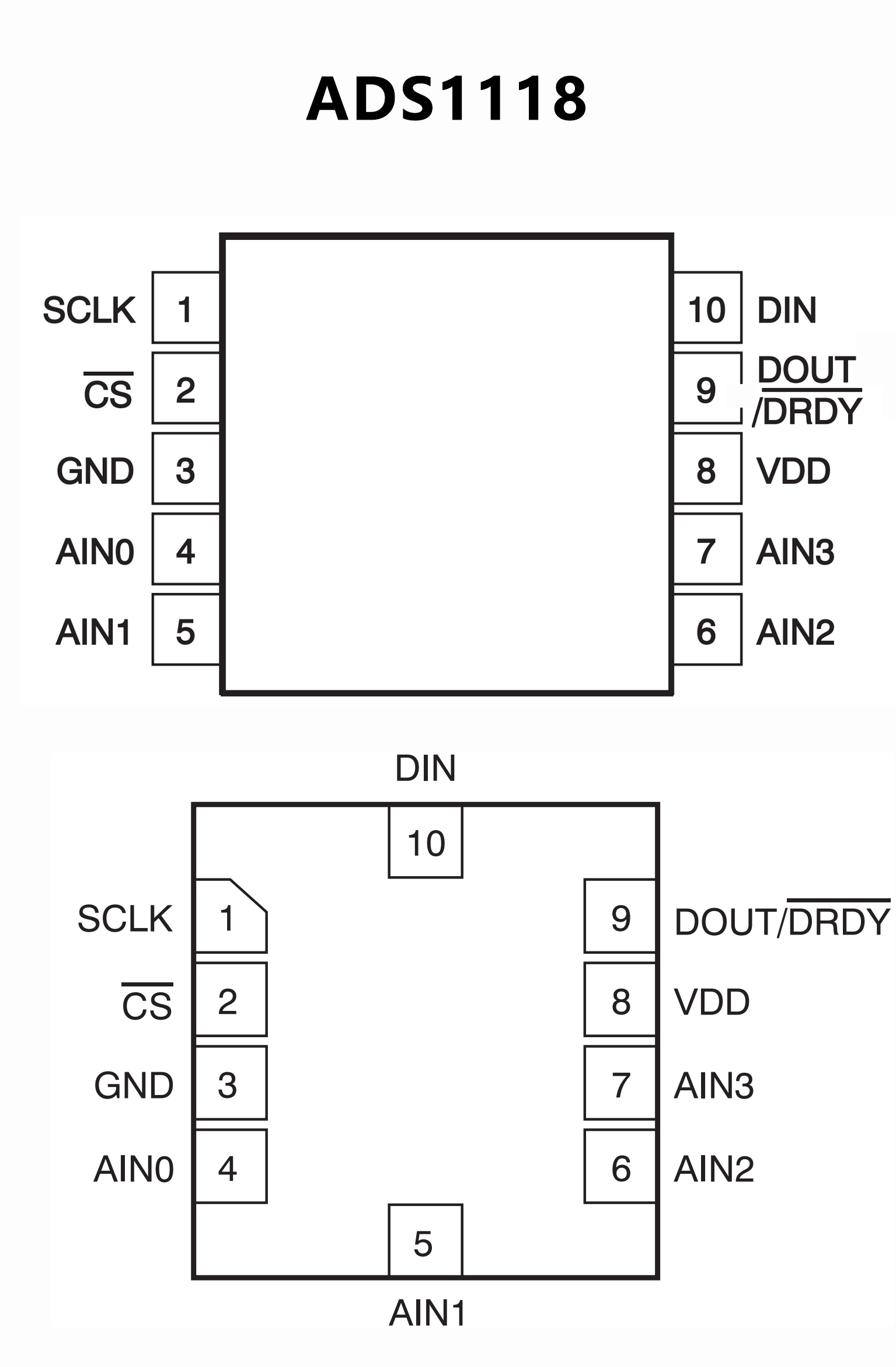

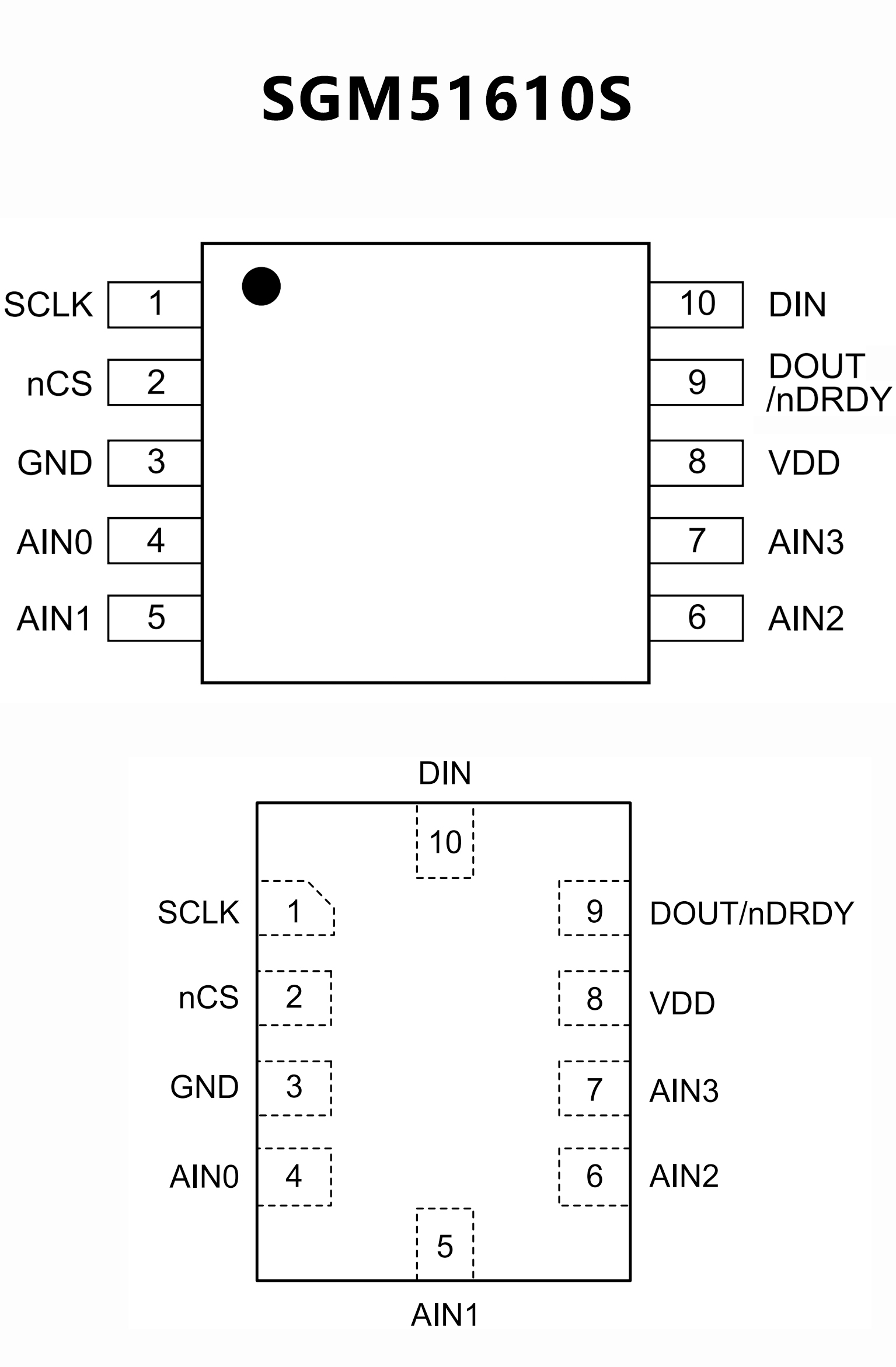

PIN CONFIGUTION
CROSS
FEATURES
• Ultra-Small QFN Package: 2mm × 1,5mm × 0,4mm
• Wide Supply Range: 2.0V to 5.5V
• Low Current Consumption:
– Continuous Mode: Only 150μA
– Single-Shot Mode: Auto Shutdown
• Programmable Data Rate: SPS to 860SPS
• Single-Cycle Settling
• Internal Low-Drift Voltage Reference
• Internal Temperature Sensor:
– 0.5°C Max Error
• Internal Oscillator
• Four Single-Ended or Two Differential Inputs
PIN CONFIGUTION
