Low-Power, SPI-Compatible, 24-Bit ADC with Internal Reference and Temperature Sensor, SGM52410S P2P ADS1118.
FEATURES

 Four Single-Ended or Two Differential Inputs

 Wide Supply Range: 2V to 5.5V
 Low Current Consumption:
  Continuous Mode: 207μA (TYP)
  Single-Shot Mode: Automatic Power-Down
 Programmable Output Data Rate:
  5SPS to 960SPS
 Single-Cycle Settling
 50/60Hz Line Rejection
 CRC for SPI Communication
 CRC Enable/Disable Register
 Robust Encryption for Factory Mode Entry
 Internal PGA
 Internal Oscillator
 Internal Low-Drift Voltage Reference
 Internal Temperature Sensor:
  0.2℃ (TYP) Error at 0℃ to 70℃
 Available in Green MSOP-10 and UTQFN-2×1.5-10L
  Packages

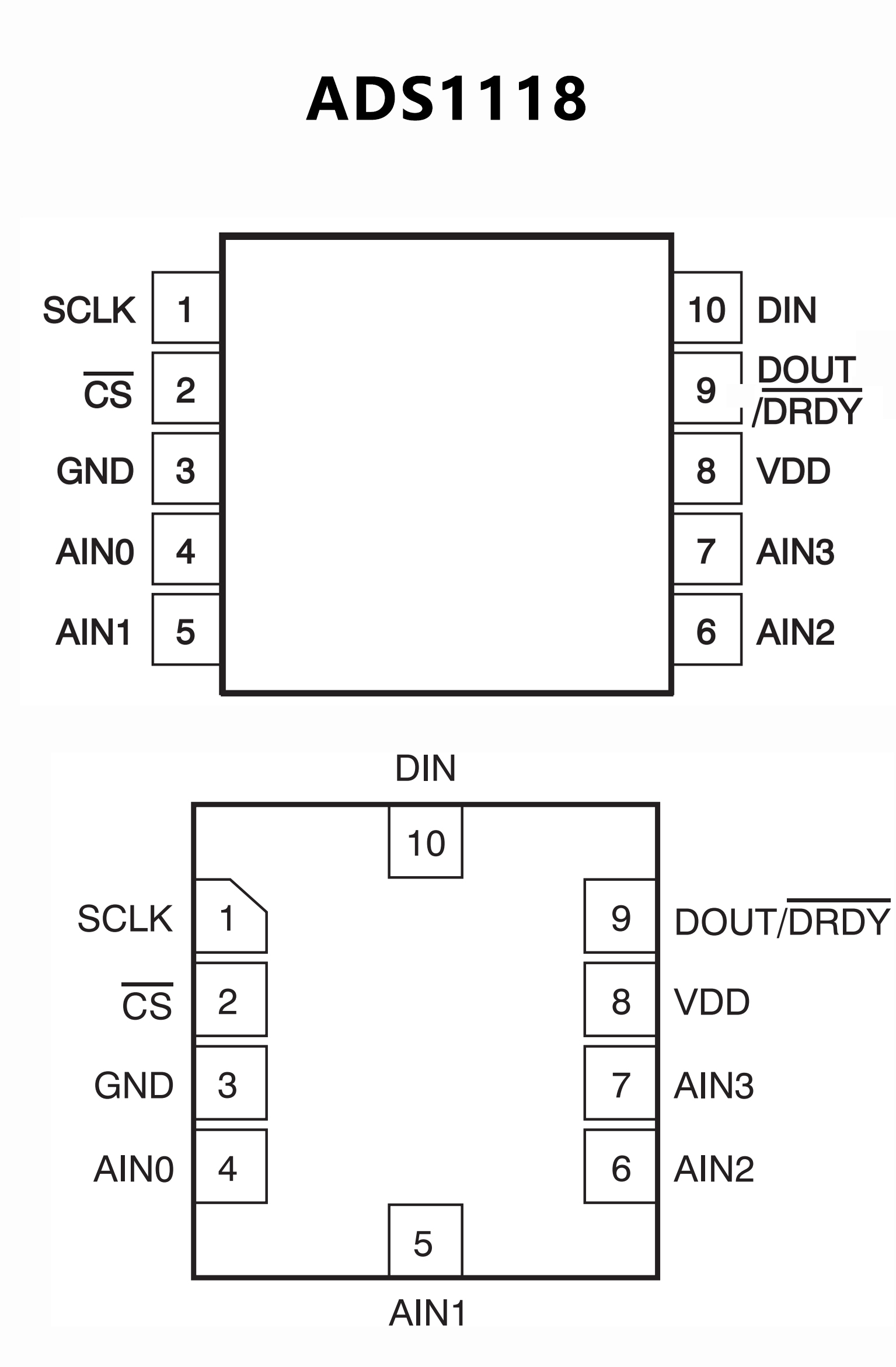

PIN CONFIGUTION
CROSS
ADS1118 ADS1118.pdf

No.14510

FEATURES

• Ultra-Small QFN Package: 2mm × 1,5mm × 0,4mm

• Wide Supply Range: 2.0V to 5.5V
• Low Current Consumption:
   – Continuous Mode: Only 150μA
   – Single-Shot Mode: Auto Shutdown
• Programmable Data Rate: SPS to 860SPS
• Single-Cycle Settling
• Internal Low-Drift Voltage Reference
• Internal Temperature Sensor:
  – 0.5°C Max Error
• Internal Oscillator

• Four Single-Ended or Two Differential Inputs








PIN CONFIGUTION
