8 Channels, 10-Bit Digital-to-Analog Converter with Output Operational Amplifier, SGM5348-10 Replace DAC108S085.
SGM5348-10
SGM5348-10.pdf
SGM5348-10.pdfFEATURES
• Low Power Consumption (0.5mW/CH)
• Integrating 8 Channels of 10-Bit DAC
• Built-in Rail-to-Rail Output Amplifier:
Sink/Source Current with Short Current Control
• Daisy-Chain Capability
• Simultaneous 8 Channels Output Updating
• Individual Channel Power-Down Capability
0.6μA (TYP) ICC for Power-Down Mode
• 0.1% (TYP) Gain Error for All Channels
• Interface Sees No Quiescent Current when VBUS < VCC
• Power-On Reset: Output Reset to GND
• Serial Data Input: Up to 40MHz Operation
• TTL Compatible Input Logic Level
• Wide Power Supply Range: 2.8V to 5.5V
• Dual Reference Voltages with Range of 0.5V to VCC
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-16 Package

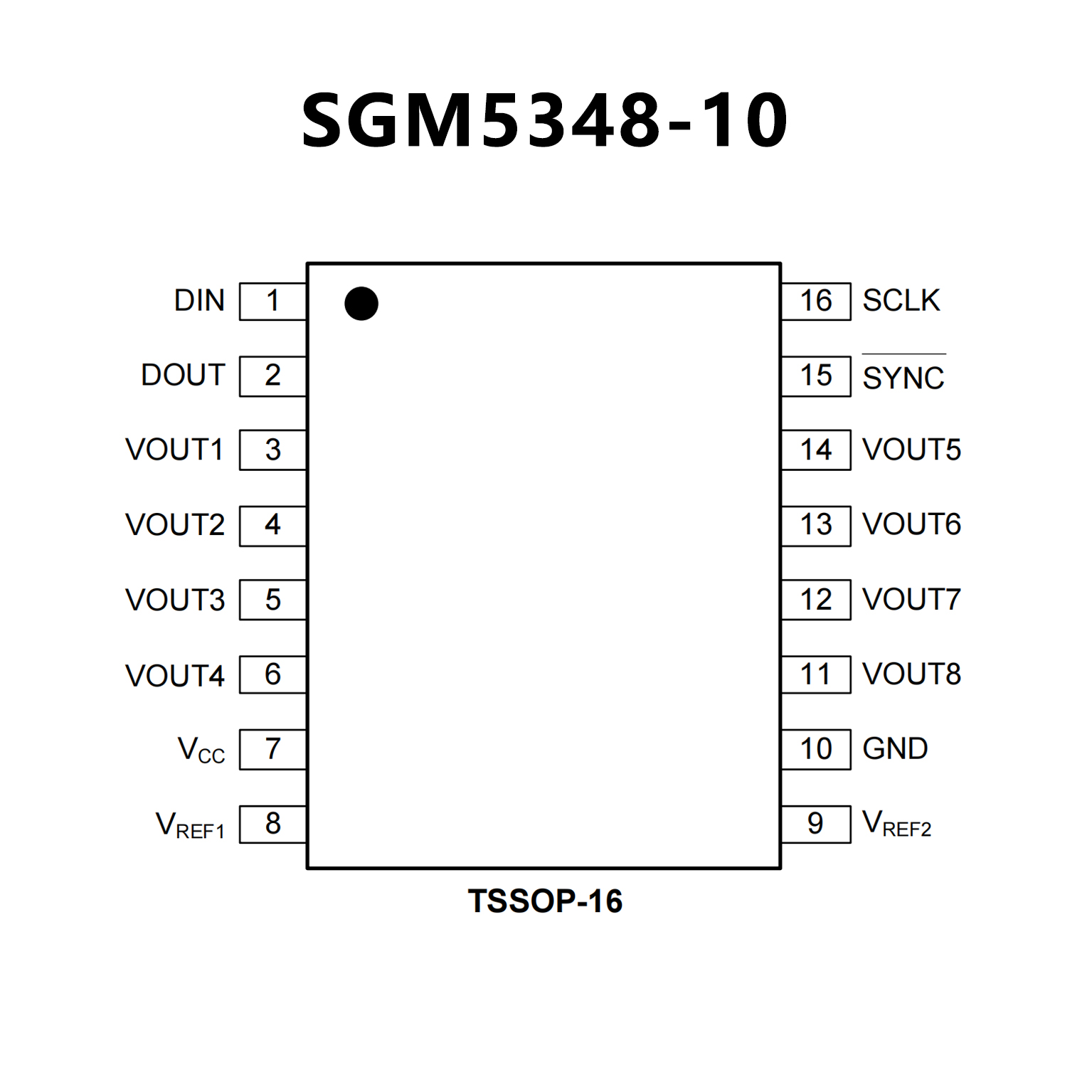

PIN CONFIGUTION
CROSS
FEATURES
• Ensured Monotonicity
• Low Power Operation
• Rail-to-Rail Voltage Output
• Daisy Chain Capability
• Power-on Reset to 0V
• Simultaneous Output Updating
• Individual Channel Power Down Capability
• Wide power supply range (+2.7V to +5.5V)
• Dual Reference Voltages with Range of 0.5V to VA
• Operating Temperature Range of −40°C to +125°C
• Industry's Smallest Package

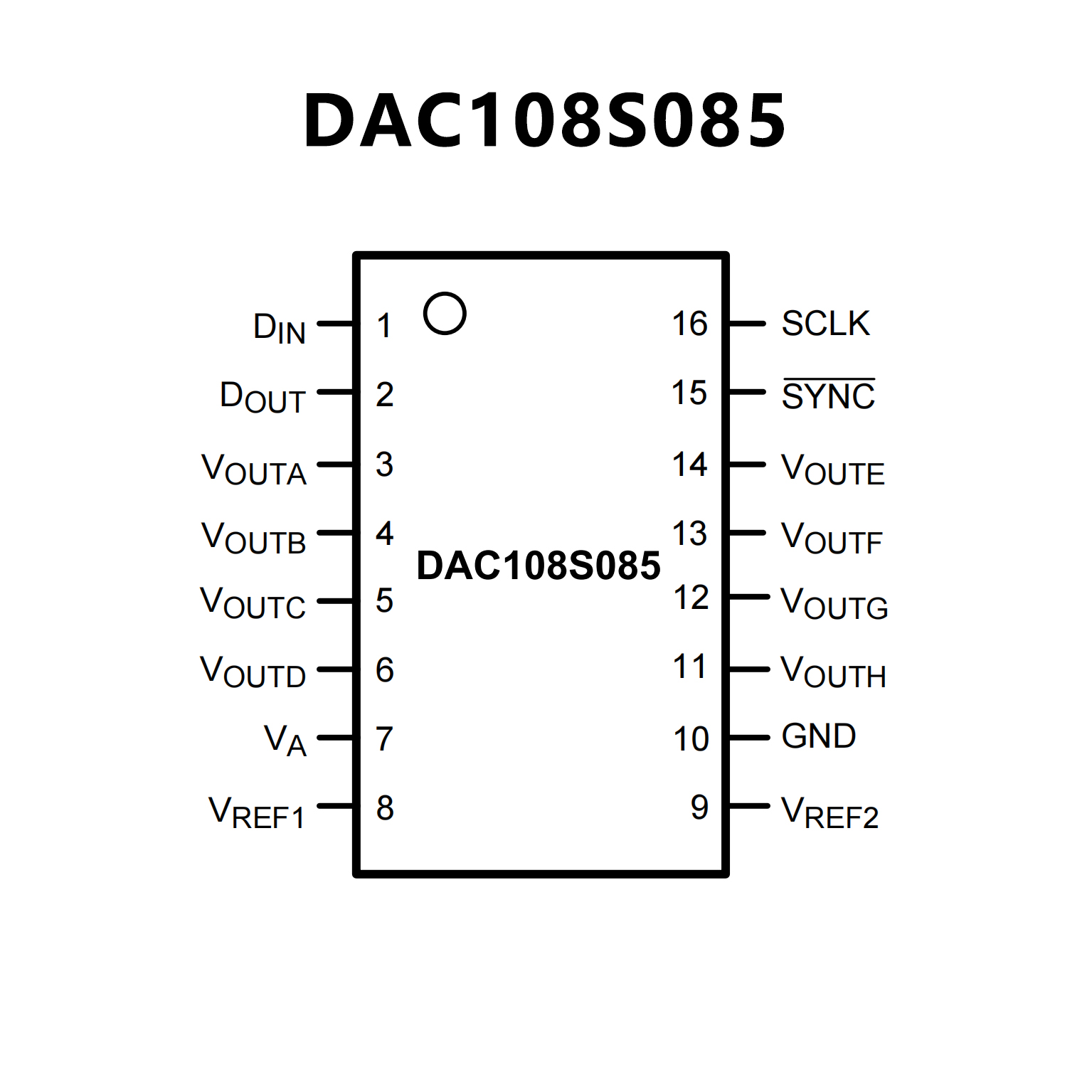

PIN CONFIGUTION
