8 Channels, 16-Bit, SPI Interface, Voltage-Output Digital-to-Analog Converter, SGM5349-16 Replace AD5668.
SGM5349-16
SGM5349-16.pdf
SGM5349-16.pdfFEATURES
• Power Supply Range: 2.7V to 5.5V
• Power Down to 1μA at 5.5V
• Monotonicity Guaranteed by Design
• Power-On Reset to Zero-Scale or Midscale
• 3 Power-Down Modes
• Hardware nLDAC Function
• nCLR Function to Programmable Code
• Rail-to-Rail Buffered Voltage-Output Operation
• Available in Green TSSOP-16 and TQFN-4×4-16L
Packages

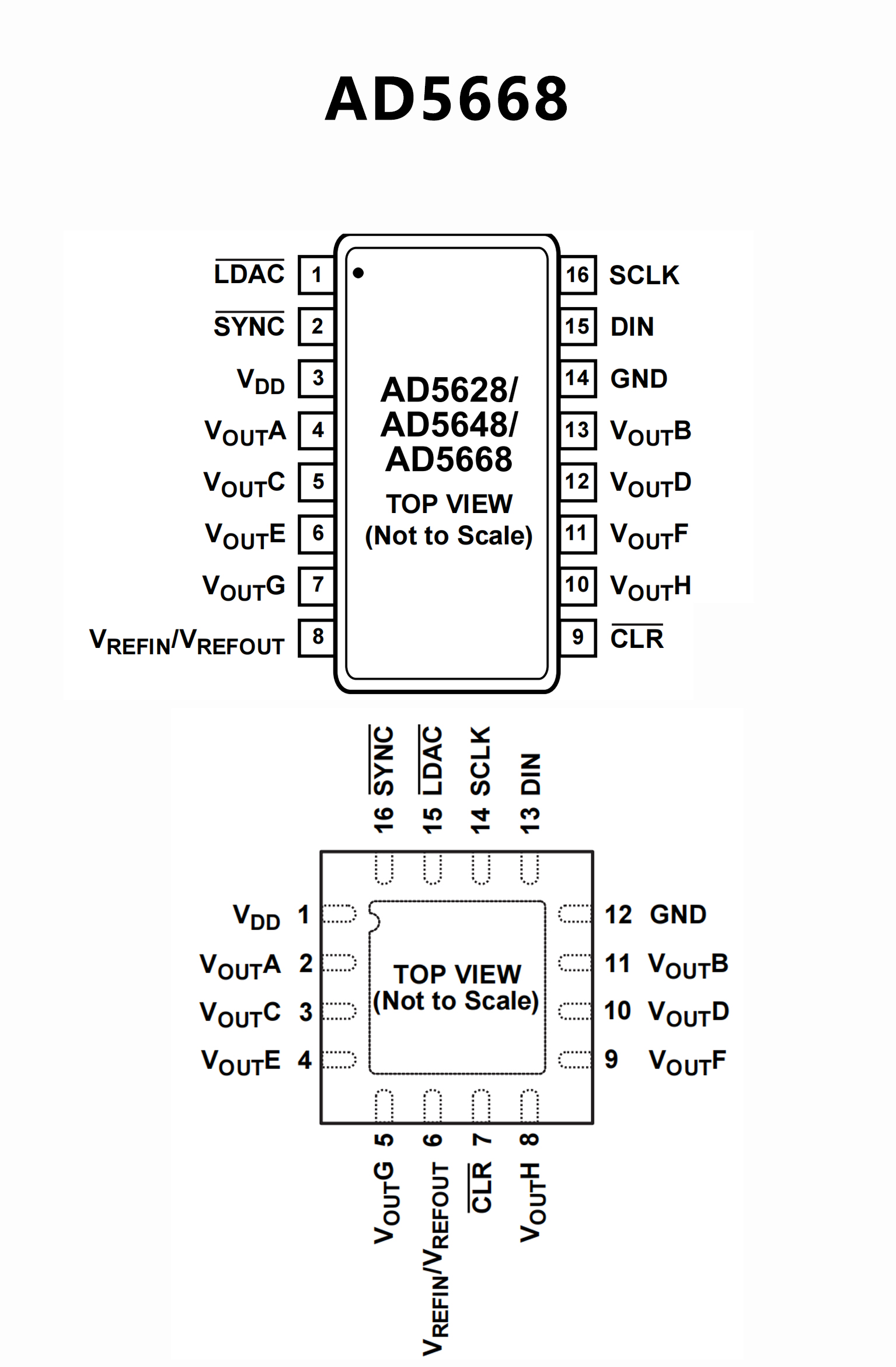

PIN CONFIGUTION
CROSS
FEATURES
• Low power, small footprint, pin-compatible octal DACs
AD5668: 16 bits
AD5648: 14 bits
AD5628: 12 bits
• 14-lead/16-lead TSSOP, 16-lead LFCSP, and 16-ball WLCSP
• On-chip 1.25 V/2.5 V, 5 ppm/°C reference
• Power down to 400 nA at 5 V, 200 nA at 3 V
• 2.7 V to 5.5 V power supply
• Guaranteed monotonic by design
• Power-on reset to zero scale or midscale
• 3 power-down functions
• Hardware LDAC and LDAC override function
• CLR function to programmable code
• Rail-to-rail operation
PIN CONFIGUTION
