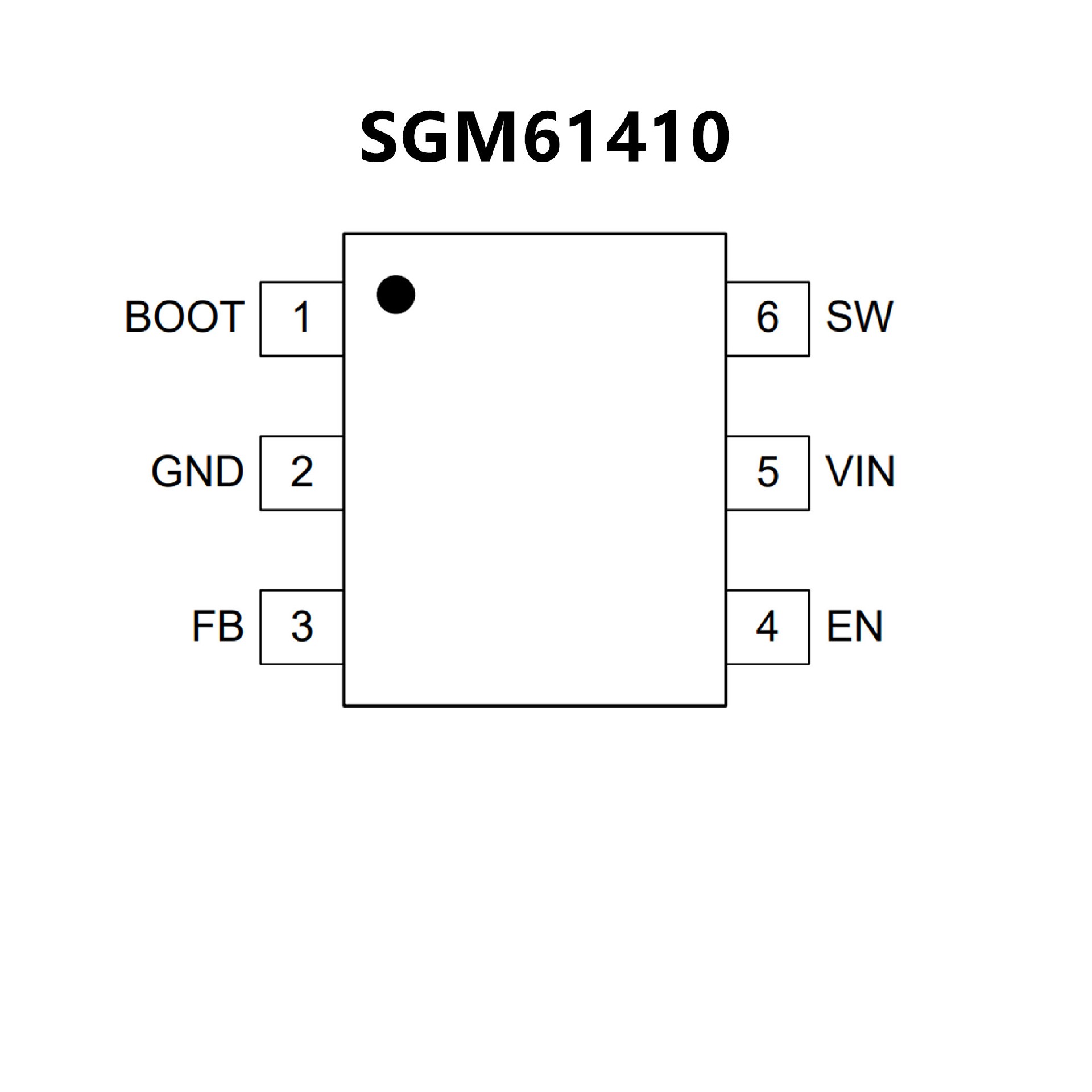

SGM61410.pdf• Wide 5V to 42V Operating Input Voltage Range
• 0.8V Internal Reference
• Low Quiescent Current: 14μA (TYP)
• Shutdown Current: 0.6μA (TYP)
• Current Output up to 600mA
• 1.2MHz Switching Frequency
• Internal Compensation and Soft-Start
• Simple Design and Minimal External Components
• Up to 95% Efficiency at 12V/400mA
• 0.8V to 20V Adjustable Output Voltage
• Current Limit and Short-Circuit Protection
• Output Over-Voltage Protection and Thermal Shutdown
• Power-Save Mode and PWM Mode Operation
• Monotonic Startup with Pre-biased Output
• 90% Maximum Duty Cycle
• Available in a Green SOT-23-6 Package
• -40℃ to +125℃ Operating Temperature Range

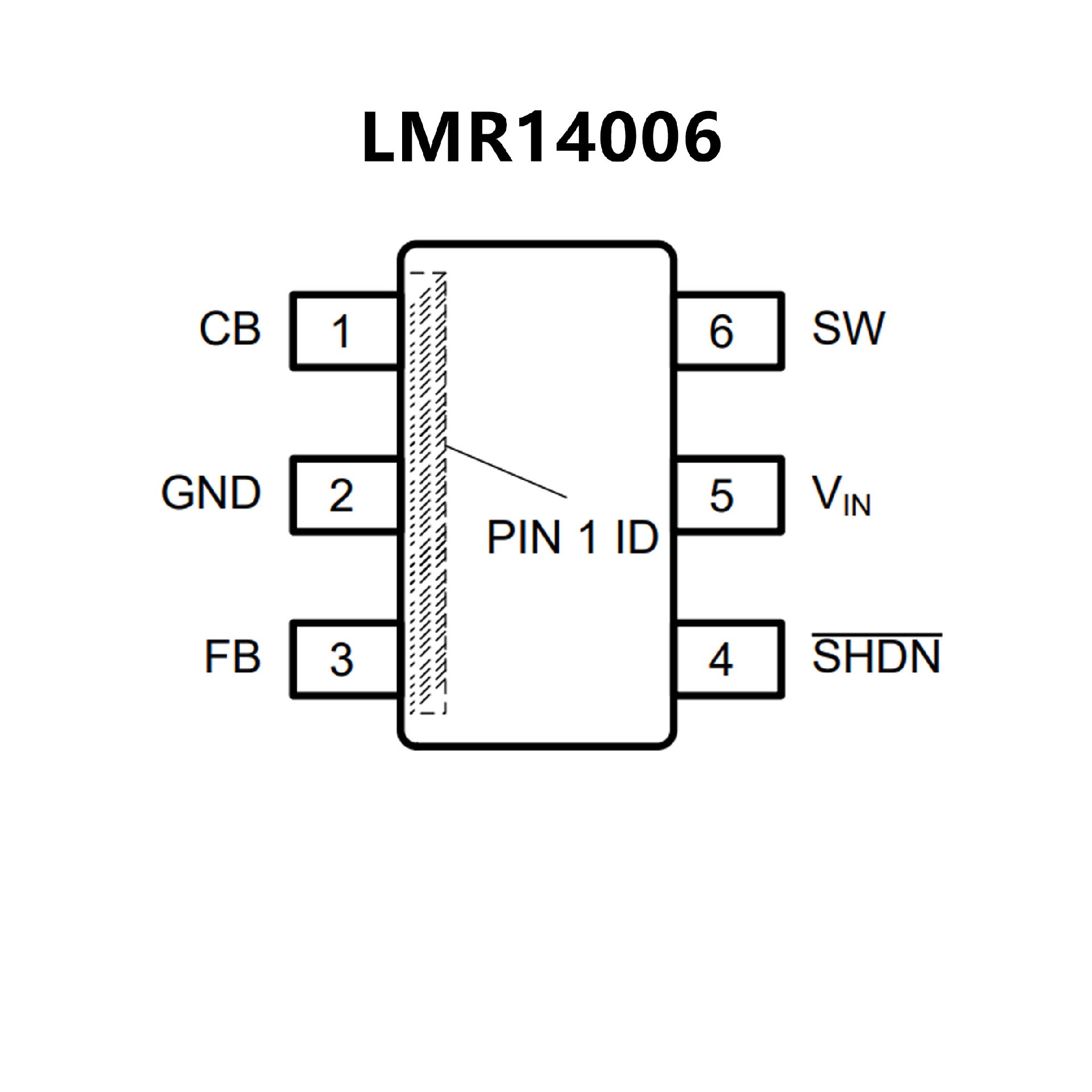

• Ultra Low 28 µA Standby Current in Sleep Mode
• Input Voltage Range 4 V to 40 V
• 1 µA Shutdown Current
• High Duty Cycle Operation Supported
• Output Current up to 600 mA
• 1.1 MHz and 2.1 MHz Switching Frequency
• Internal Compensation
• High Voltage Enable Input
• Internal Soft Start
• Over Current Protection
• Over Temperature Protection
• Small Overall Solution Size (TSOT-6L Package)
