• Operating Input Voltage Range: 0.7V to 5.5V

• Adjustable Output Voltage from 1.8V to 5.5V

• 2.5V, 3.0V, 3.3V, 3.6V and 5.0V Fixed Output

  Voltage Versions

• Up to 93% Efficiency from 10mA to 300mA Load

• Ultra-Low Quiescent Current

   0.6µA (TYP) Ultra-Low IQ into VOUT Pin

   0.07µA (TYP) Ultra-Low IQ into VIN Pin

• 1.2MHz Fixed Frequency Operation

• Power-Save Mode for Improved Efficiency at Low

  Output Power

• True Disconnection during Shutdown

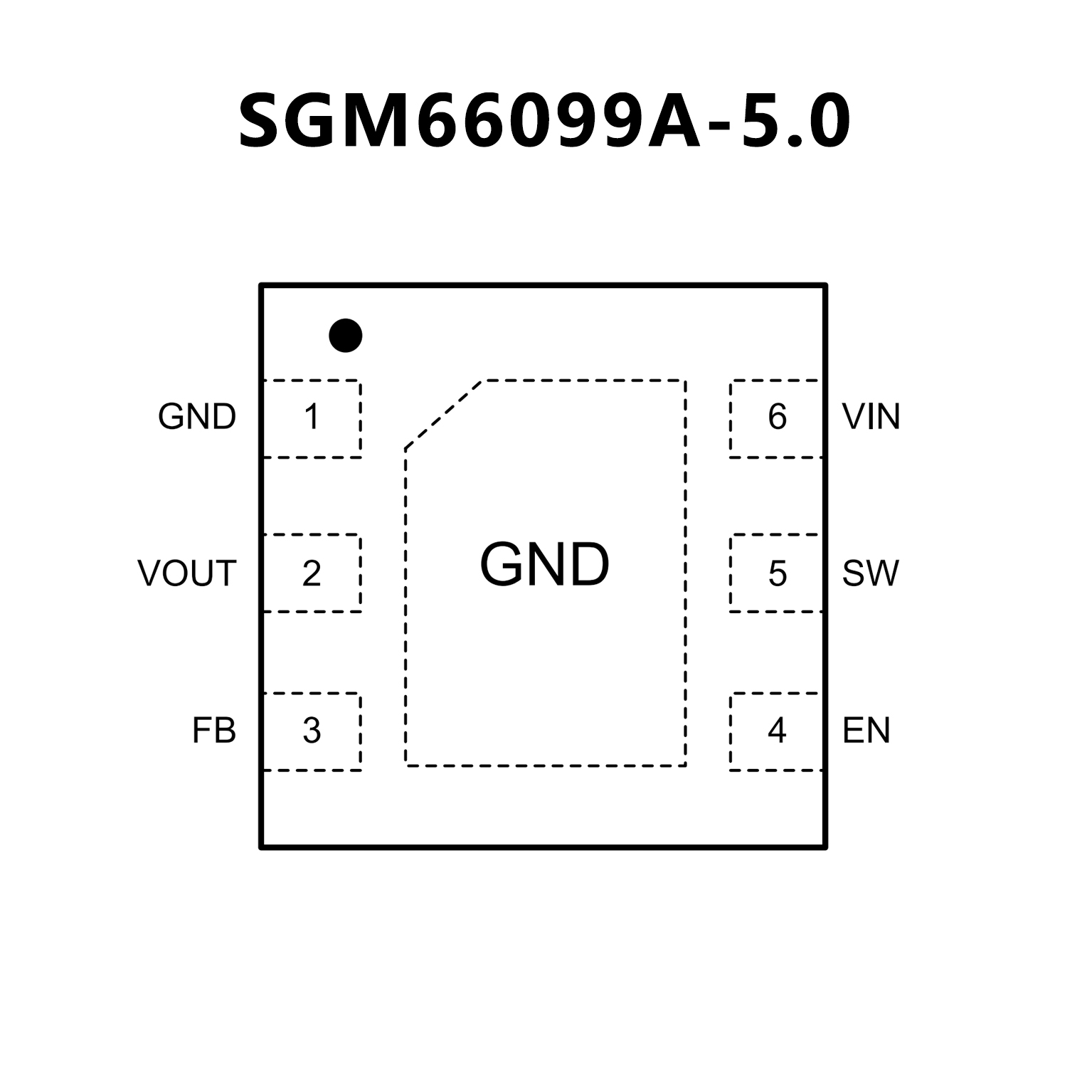

• Available in Green WLCSP-0.85×1.32-6B and

  TDFN-2×2-6AL Packages
