10A Fully-Integrated Synchronous Boost Converter, SGM6610 Replace TPS61088.
SGM6610
SGM6610.pdf
SGM6610.pdfFEATURES
• Input Voltage Range: 2.7V to 12V
• Output Voltage Range: 4.5V to 12.6V
• 10A Switch Current
• Up to 91% Efficiency at VIN = 3.3V, VOUT = 9V and
IOUT = 3A
• Mode Selection Between PFM Mode and Forced
PWM Mode at Light Load
• 1μA Current into VIN Pin during Shutdown
• Resistor-Programmable Switch Peak Current Limit
• Adjustable Switching Frequency: 200kHz to 2.2MHz
• Programmable Soft-Start
• Output Over-Voltage Protection at 13.2V
• Cycle-by-Cycle Over-Current Protection
• Thermal Shutdown
• Available in Green TQFN-4.5×3.5-20L Package

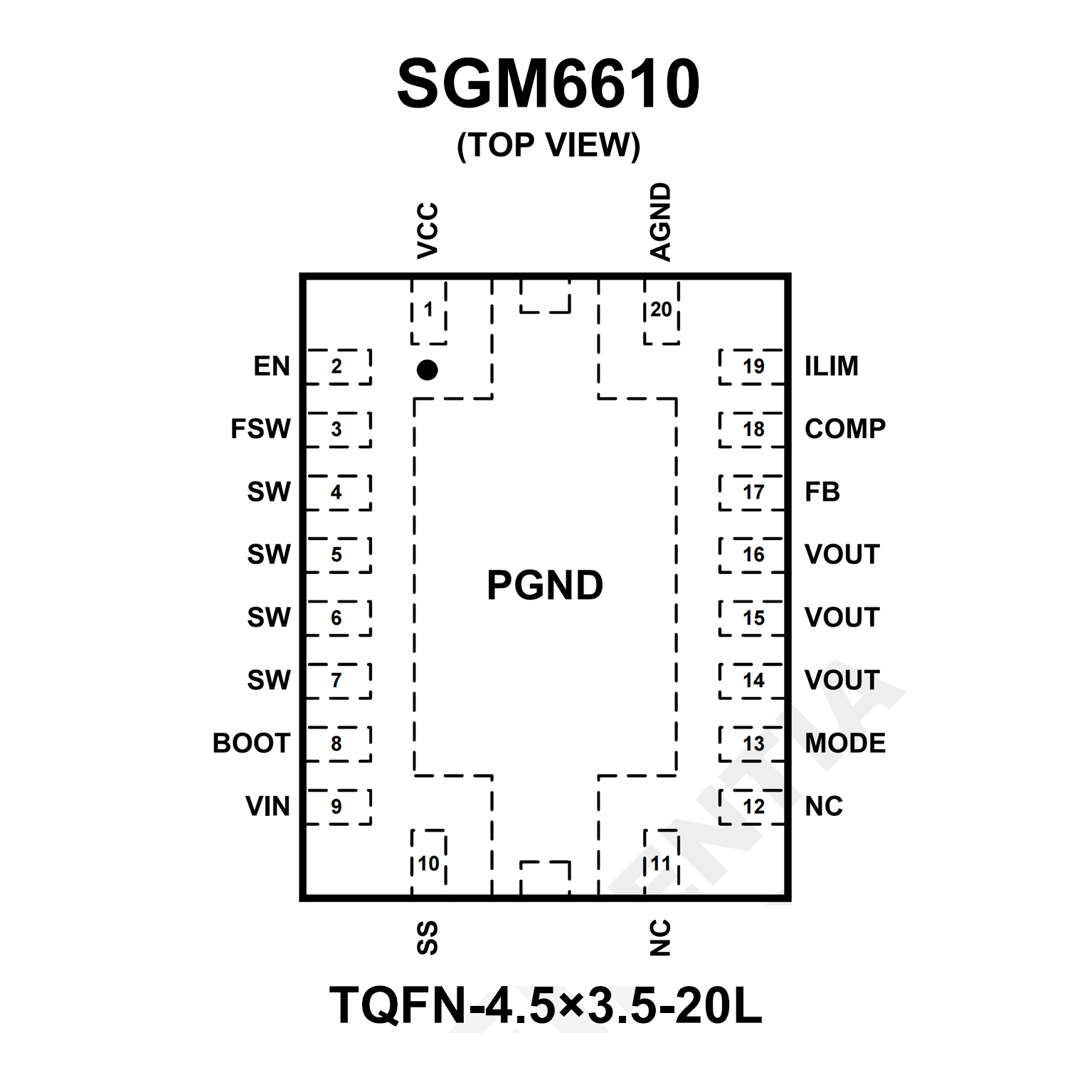

PIN CONFIGUTION
CROSS
FEATURES
• Input Voltage Range: 2.7 to 12 V
• Output Voltage Range: 4.5 to 12.6 V
• 10-A Switch Current
• Up to 91% Efficiency at VIN = 3.3 V, VOUT = 9 V,
and IOUT = 3 A
• Mode Selection Between PFM Mode and Forced
PWM Mode at Light Load
• 1.0 µA Current into VIN Pin during Shutdown
• Resistor-Programmable Switch Peak Current Limit
• Adjustable Switching Frequency: 200 kHz to 2.2
MHz
• Programmable Soft Start
• Output Overvoltage Protection at 13.2 V
• Cycle-by-Cycle Overcurrent Protection
• Thermal Shutdown
• 4.50-mm × 3.50-mm 20-Pin VQFN Package
• Create a Custom Design Using the TPS61088
with the WEBENCH Power Designer

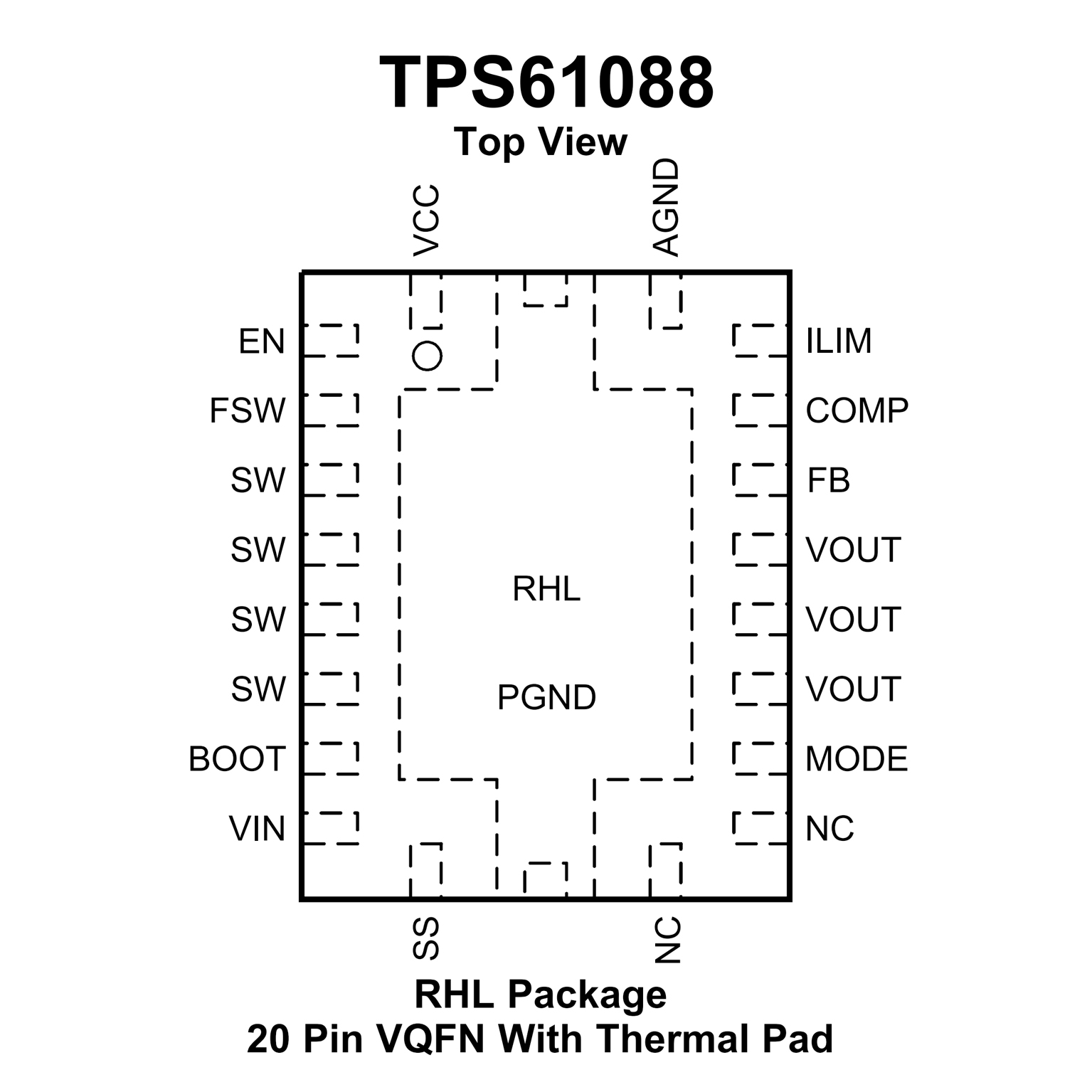

PIN CONFIGUTION
