Low Noise Operational Amplifier,SGM722 Replace MCP6292.
SGM722
SGM722.pdf
SGM722.pdfFEATURES
• Rail-to-Rail Input and Output
• Input Offset Voltage: 4mV (MAX)
• High Gain-Bandwidth Product: 11MHz
VHigh Slew Rate: 8.5V/μs
• Settling Time to 0.1% with 2V Step: 0.21μs
• Overload Recovery Time: 0.6μs
• Low Noise: 8.5nV/√Hz at 10kHz
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power: SGM722/4: 1.1mA/Amplifier (TYP)

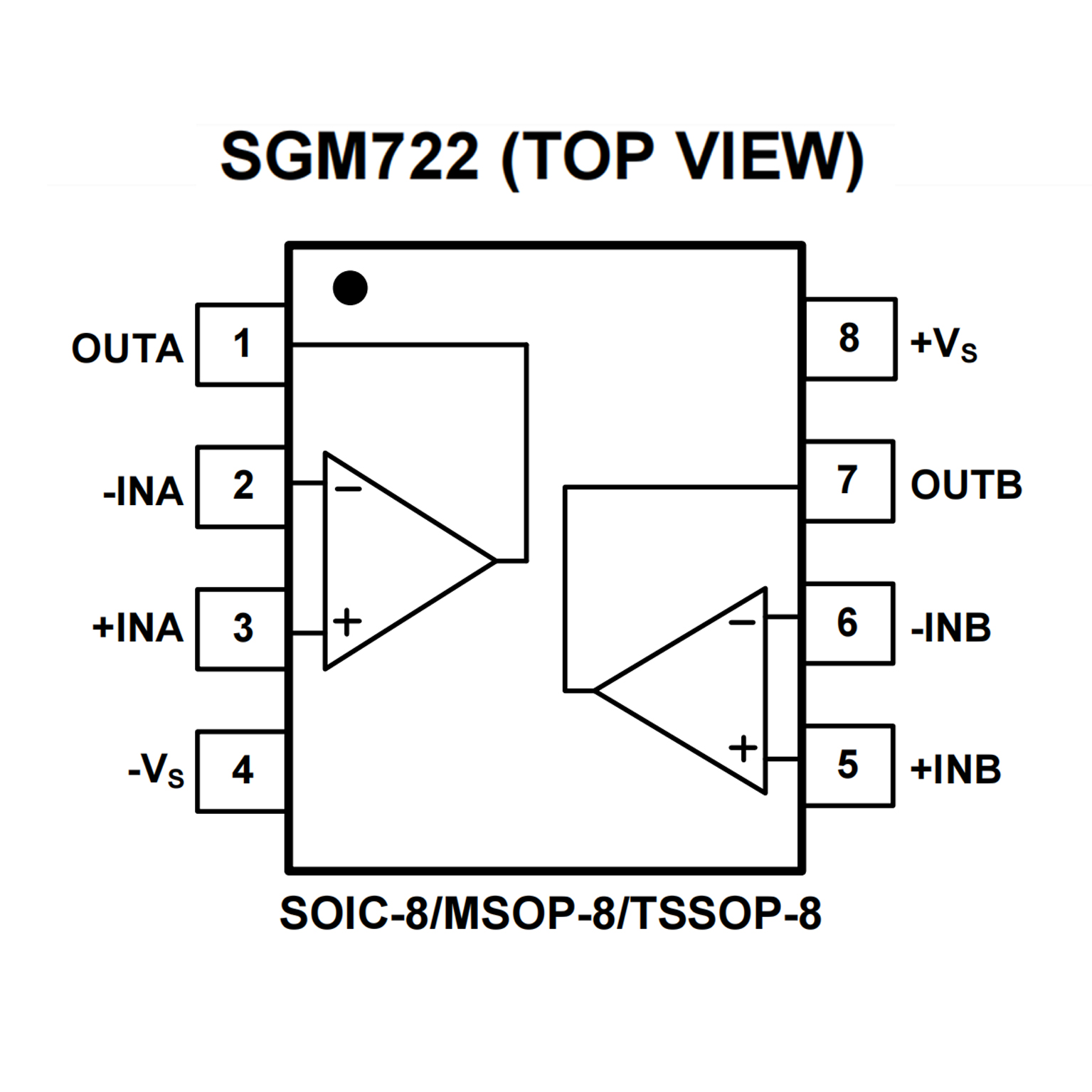

PIN CONFIGUTION
CROSS
FEATURES
• Input Offset Voltage: ±3 mV (max)
• Quiescent Current: 1000 µA (typical)
• Common Mode Rejection Ratio: 65 dB (typical)
• Power Supply Rejection Ratio: 70 dB (typical)
• Rail-to-Rail Input/Output
•Supply Voltage Range: 2.4V to 6V
• Gain Bandwidth Product: 10 MHz (typical)
• Slew Rate: 7V/µs (typical)
• Unity Gain Stable
• Extended Temperature Range: -40°C to +125°C

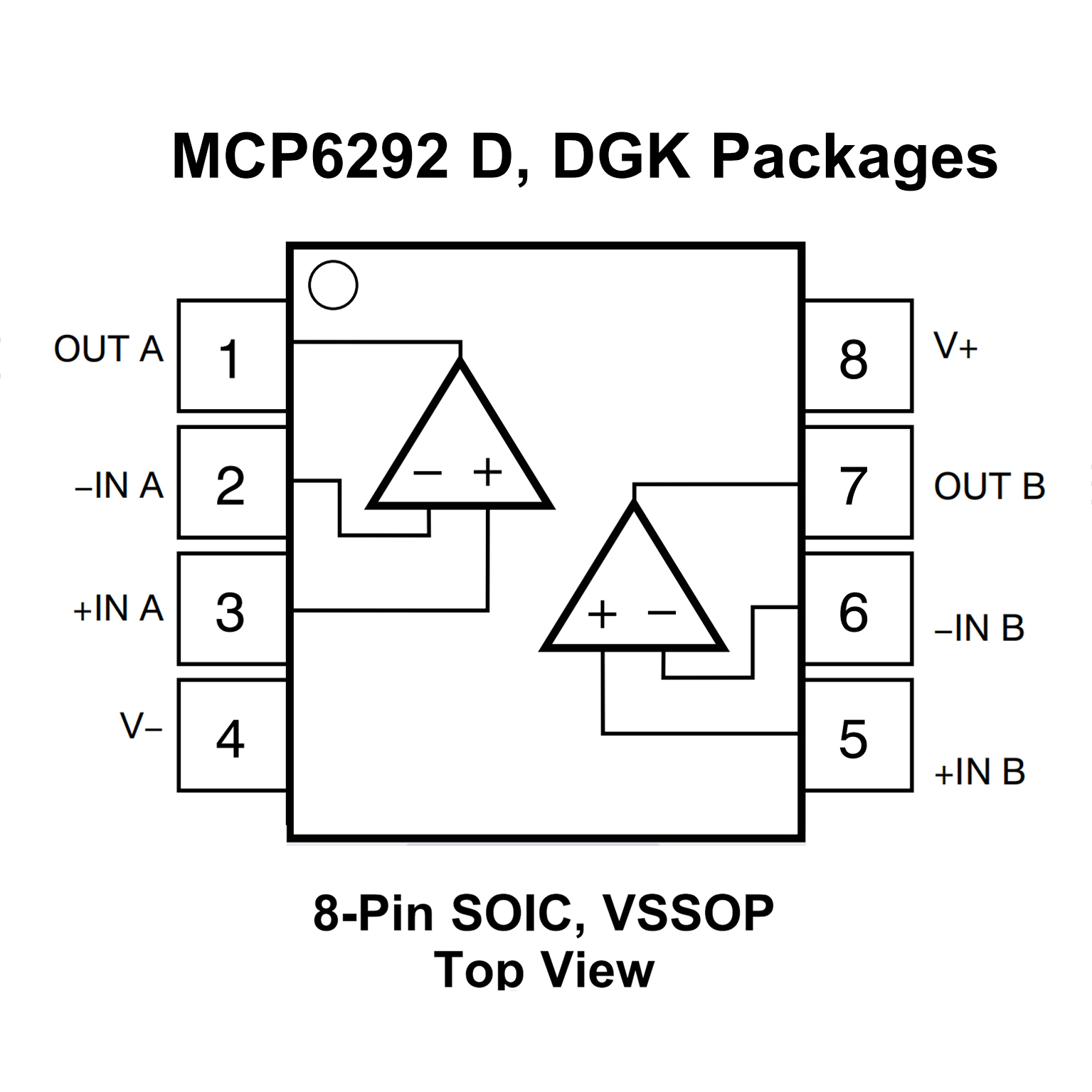

PIN CONFIGUTION
