0.4 to 3.8 GHz DPDT Switch,SGM72322A Replace SKY13596.
SGM72322A
SGM72322A.pdf
SGM72322A.pdfFEATURES
• Operating Frequency Range: 0.4GHz to 3.8GHz
• Supply Voltage Range: 1.7V to 3.3V
• Low Insertion Loss
• High Isolation
• Advanced Silicon-On-Insulator (SOI) Process
• Single Control Voltage Input
• GSM Power Handling
• No External DC Blocking Capacitors Required
• Available in a Green UTQFN-2×2-12AL Package
PIN CONFIGUTION

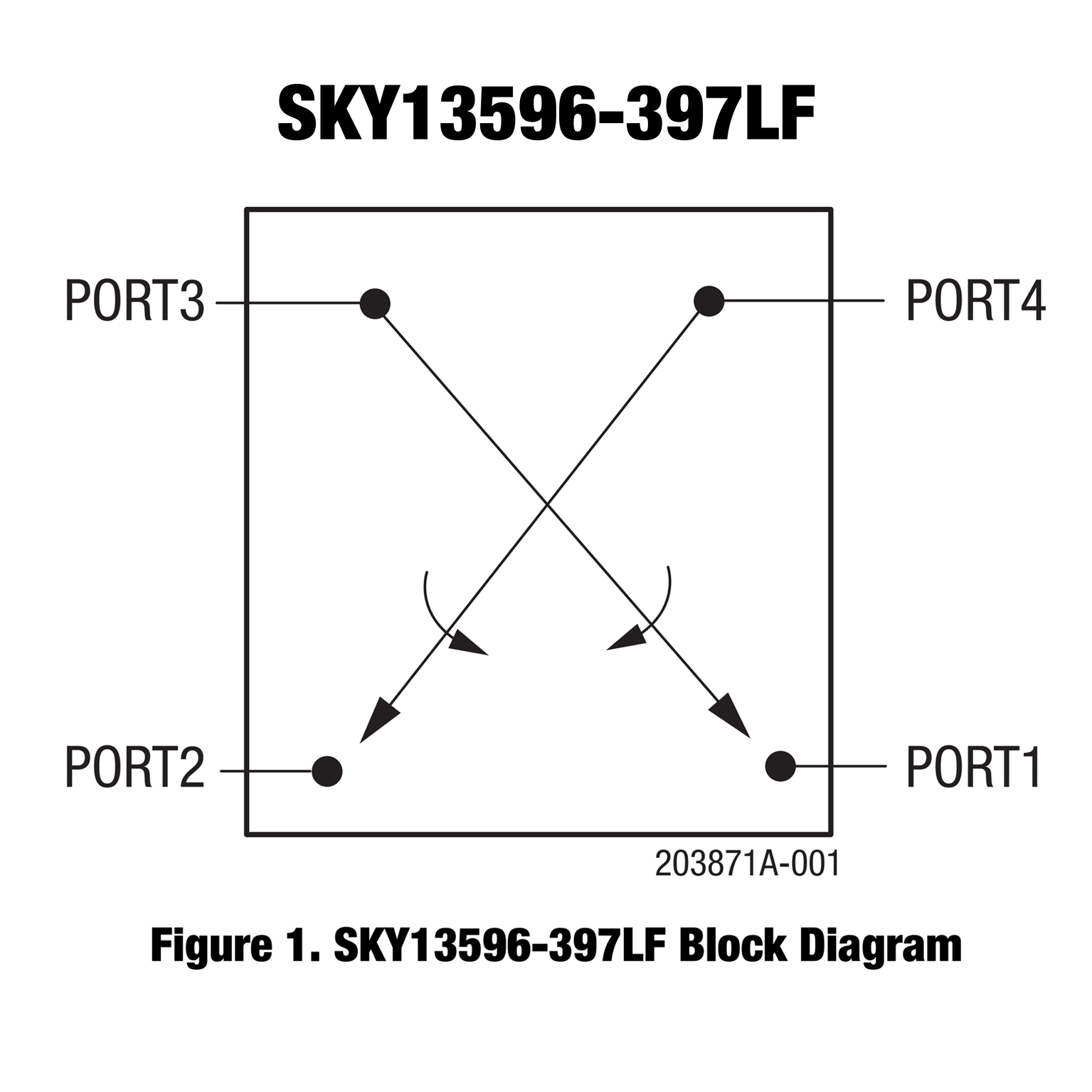

CROSS
FEATURES
• Single control voltage input
• Broadband frequency range: 0.4 to 3.8 GHz
• Low insertion loss: 0.5 dB @ 2.7 GHz
• No DC blocking capacitors required
• Positive control voltage range: 1.35 to 3.1 V
• GSM power handling
• Small, QFN (12-pin, 2 x 2 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)
PIN CONFIGUTION
