SGM724.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 4mV (MAX)
• High Gain-Bandwidth Product: 11MHz
• High Slew Rate: 8.5V/μs
• Settling Time to 0.1% with 2V Step: 0.21μs
• Overload Recovery Time: 0.6μs
• Low Noise: 8.5nV/√Hz at 10kHz
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power:SGM724: 1.1mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range

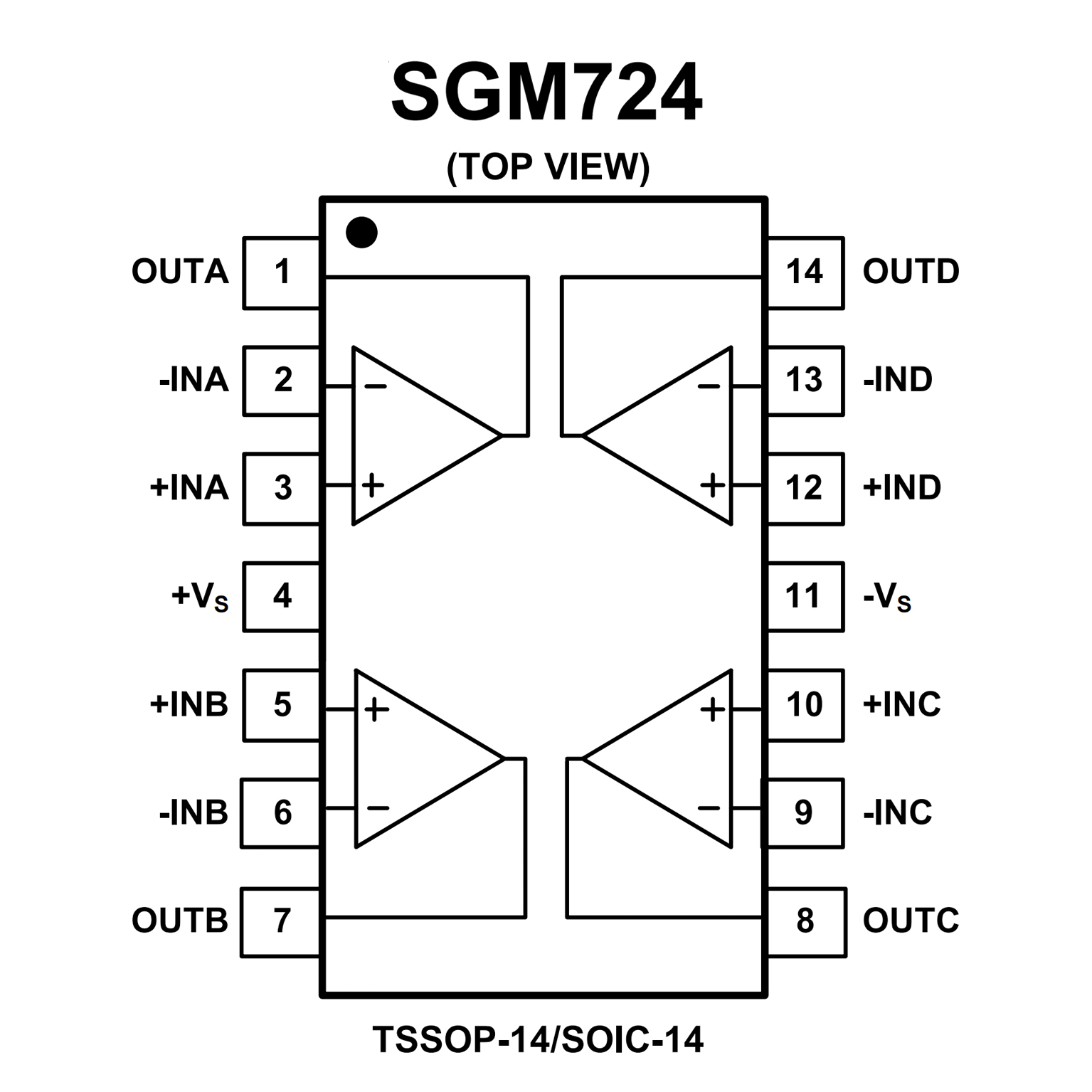

• Small Packaging:
SGM724 Available in Green TSSOP-14 and
SOIC-14 Packages
• Single-Supply Operation from +2.1V ~ +5.5V
• Rail-to-Rail Input / Output
• Gain-Bandwidth Product: 11MHz (Typ.)
• Low Input Bias Current: 1pA (Typ.)
• Low Offset Voltage: 3.5mV (Max.)
• High Slew Rate: 9V/μs
• Settling Time to 0.1% with 2V Step: 0.3μs
• Low Noise : 8nV/ Hz @10kHz
• Quiescent Current: 1.1mA per Amplifier (Typ.)
• Operating Temperature: -40°C ~ +125°C
• Small Package:
LMV721 Available in SOT23-5 , SC70-5 , SOP-8
Packages
LMV722 Available in SOP-8 and MSOP-8 Packages
LMV724 Available in SOP-14 and TSSOP-14 Packages
LMV721N Available in SOT23-6 and SC70-6 Package
