SGM7300B.pdf• 2 Bidirectional Differential Channel, 2:1
Multiplexer/Demultiplexer
• High-Speed Signal Switching for 10Gbps
Applications
• High Bandwidth: 10GHz at -3dB
• Low Insertion Loss:
-0.4dB at 100MHz
-0.9dB at 4.0GHz
• Low Return Loss: -15dB at 4GHz
• Low Crosstalk: -35dB at 4GHz
• Low Off-State Isolation: -15dB at 4GHz
• Low Intra-Pair Skew: 10ps (TYP)
• Low Intra-Pair Skew: 50ps (MAX)
• VDD Operating Range: 3.3V ± 10%

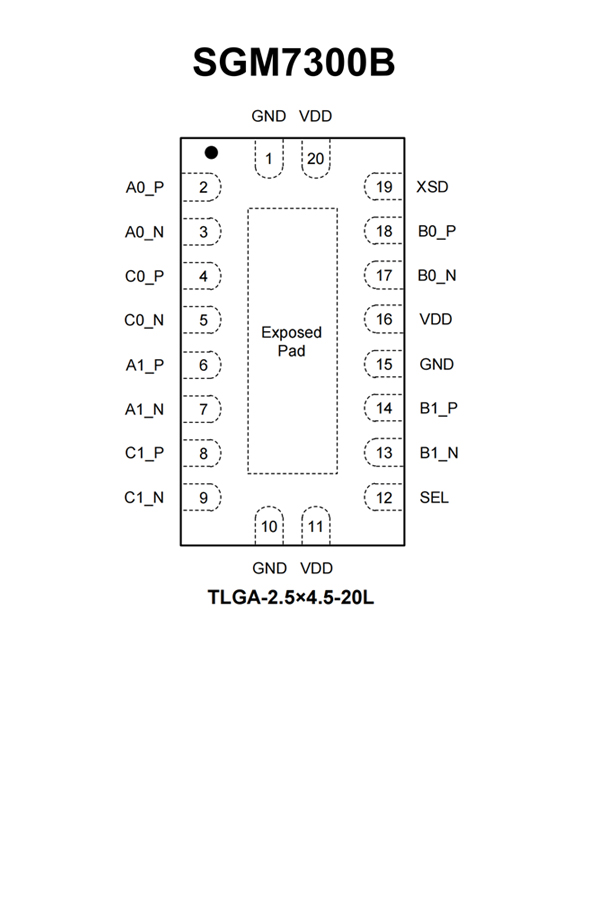

• Available in a Green TLGA-2.5×4.5-20L Package
• 2 bidirectional differential channel, 2 : 1
multiplexer/demultiplexer
• High-speed signal switching for 10 Gbps
applications
• High bandwidth: 10 GHz at -3 dB
• Low insertion loss:
-0.5 dB at 100 MHz
-1.3 dB at 4.0 GHz
• Low return loss: -13.5 dB at 4 GHz
• Low crosstalk: -35 dB at 4 GHz
• Low off-state isolation: -20 dB at 4 GHz
• Low intra-pair skew: 5 ps typical
• Low inter-pair skew: 35 ps maximum
• VDD operating range: 3.3 V ± 10 %
• Shutdown pin (XSD) for power-saving mode
Standby current less than 1A
• ESD tolerance:
2000 V HBM
1000 V CDM

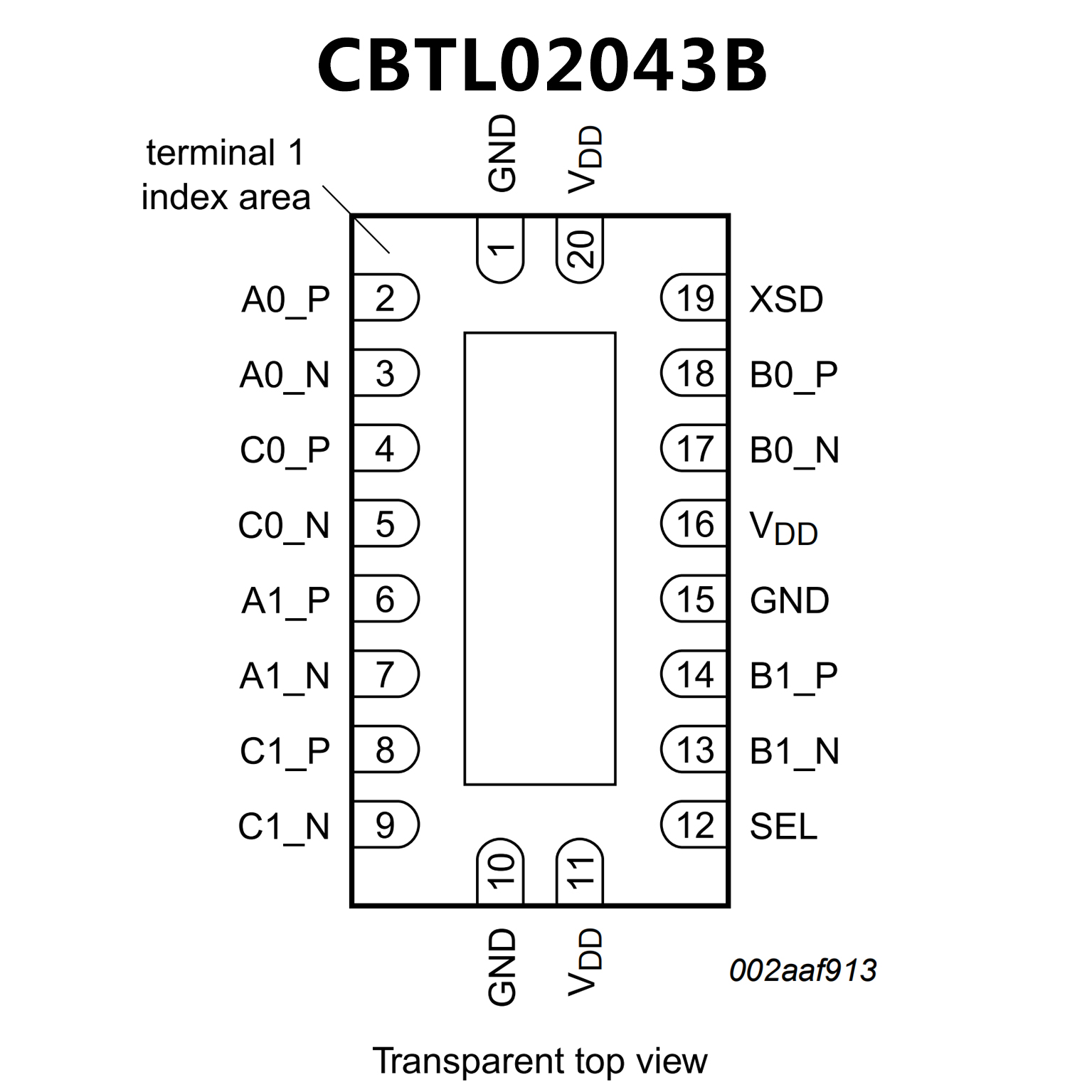

• DHVQFN20 package
