• 3-lane, 2:1 switches that support D-PHY and C-PHY

• Data rate support: up to 3.5Gsps C-PHY, up to 4.5Gb/s

  D-PHY.

• Bandwidth: 6.0 GHz Typical

• Low Crosstalk: -30 dB@2.25 GHz

• Input Signals 0 to 1.3V

• R_ON: 5.0Ω Typical LP & HS MIPI

• ∆R_ON: 0.1Ω Typical LP & HS MIPI

• R_ON_FLAT: 0.3Ω Typical LP & HS MIPI

   I_CCZ: 1μA Maximum

   I_CC: 15μA Typical

• Skew of Opposite Transitions of the Same Output: 2ps

  Typical

• V_DD Operating Range: 1.5V to 3.6V

• ESD Tolerance: 2kV HBM

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• For automotive applications requiring specific change control

  (i.e. parts qualified to AEC-Q100/101/200, PPAP capable,

  and manufactured in IATF 16949 certified facilities), please

  contact us or your local Diodes representative.

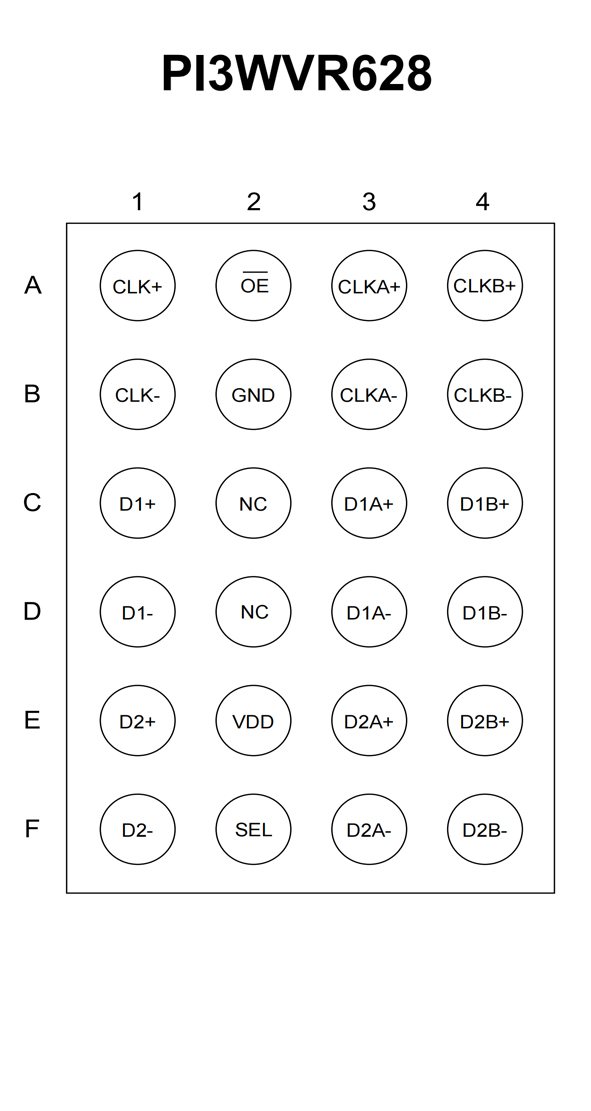

• Packaging (Pb-free & Green):

  24-Pin, X1-LGA2417-24 (1.7mm x 2.4mm) (XB)
