Octal Bus Transceivers with 3-State Outputs,SGM7SZ245XTS20G Replace SN74AHCT245.
SGM7SZ245XTS20G
SGM7SZ245XTS20G.pdf
SGM7SZ245XTS20G.pdfFEATURES
• Wide Operating Voltage Range: 1.8V to 5.0V
• High-Current 3-State Outputs Drive Bus
LinesDirectly or Up to 15 LSTTL Loads
• Low Power Consumption, ICC: 13μA (MAX)
• Typical tPD = 8.9ns at 5.0V
• ±20mA Output Drive at 5.0V
• Low Input Current: ±8μA (MAX)
• Available in Green TSSOP-20, TQFN-5.5×3.5-24Land
TQFN-3×3-20L Packages

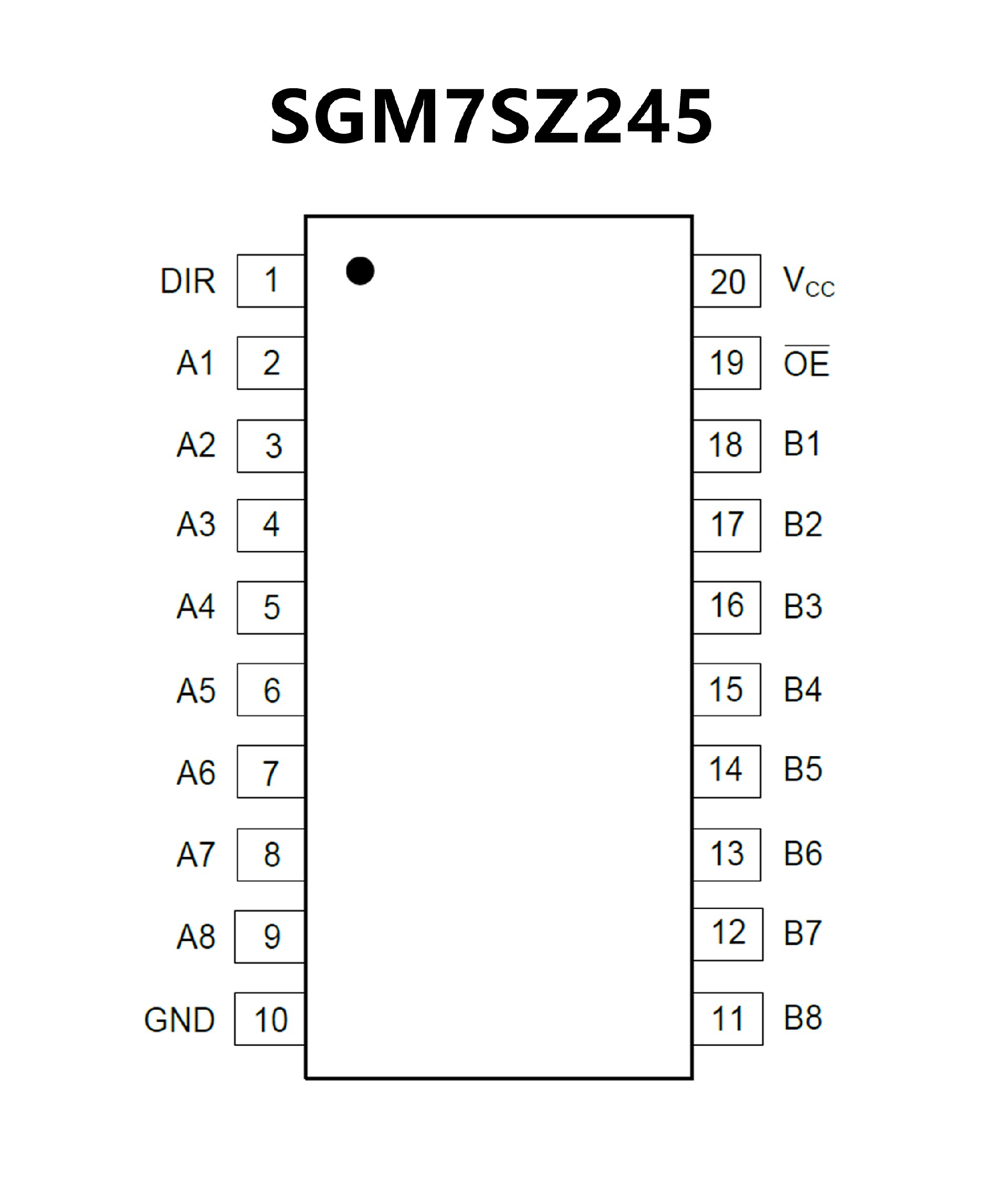

PIN CONFIGUTION
CROSS
FEATURES
• Inputs Are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
• On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production Processing
Does Not Necessarily Include Testing of All Parameters.

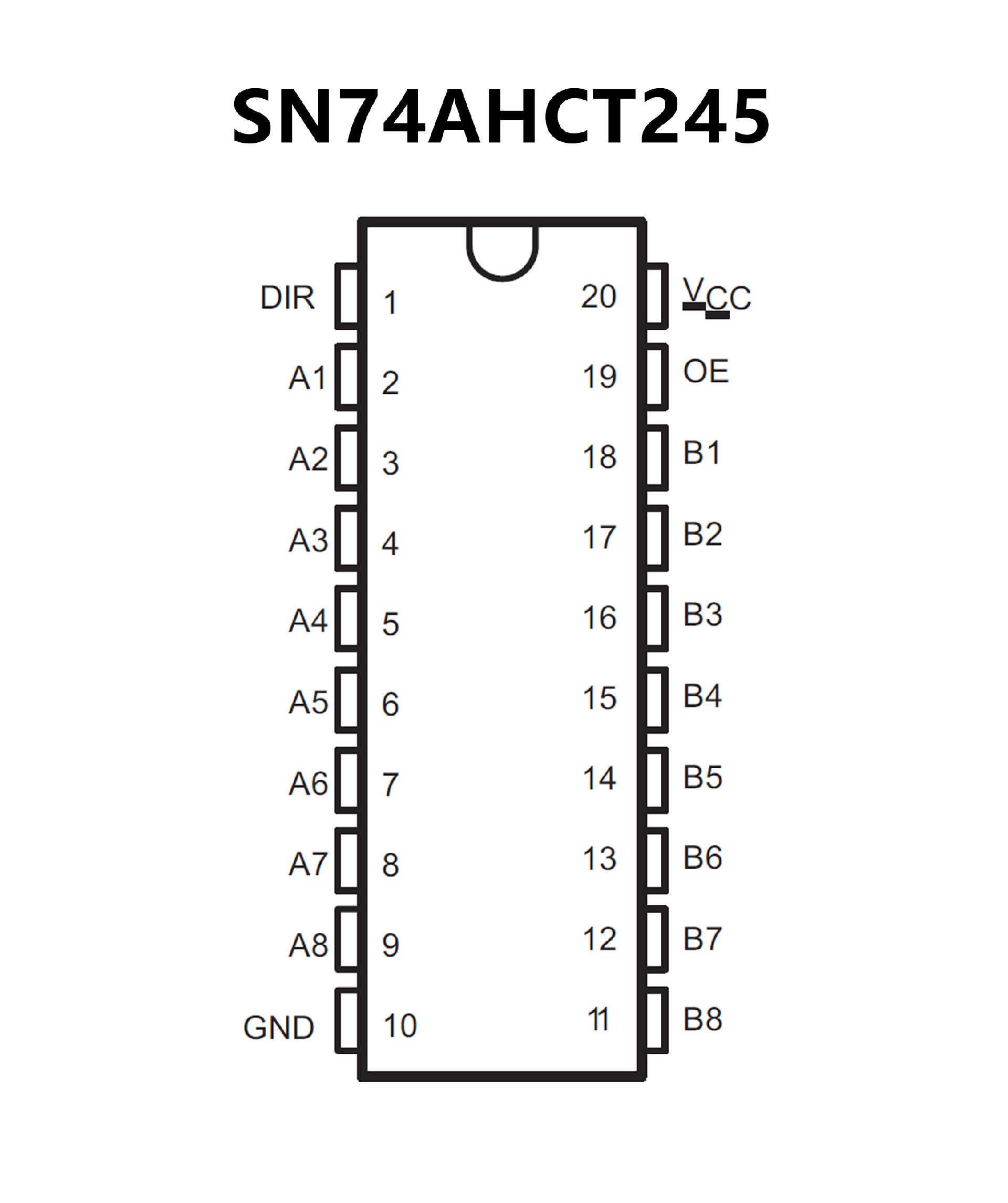

PIN CONFIGUTION
