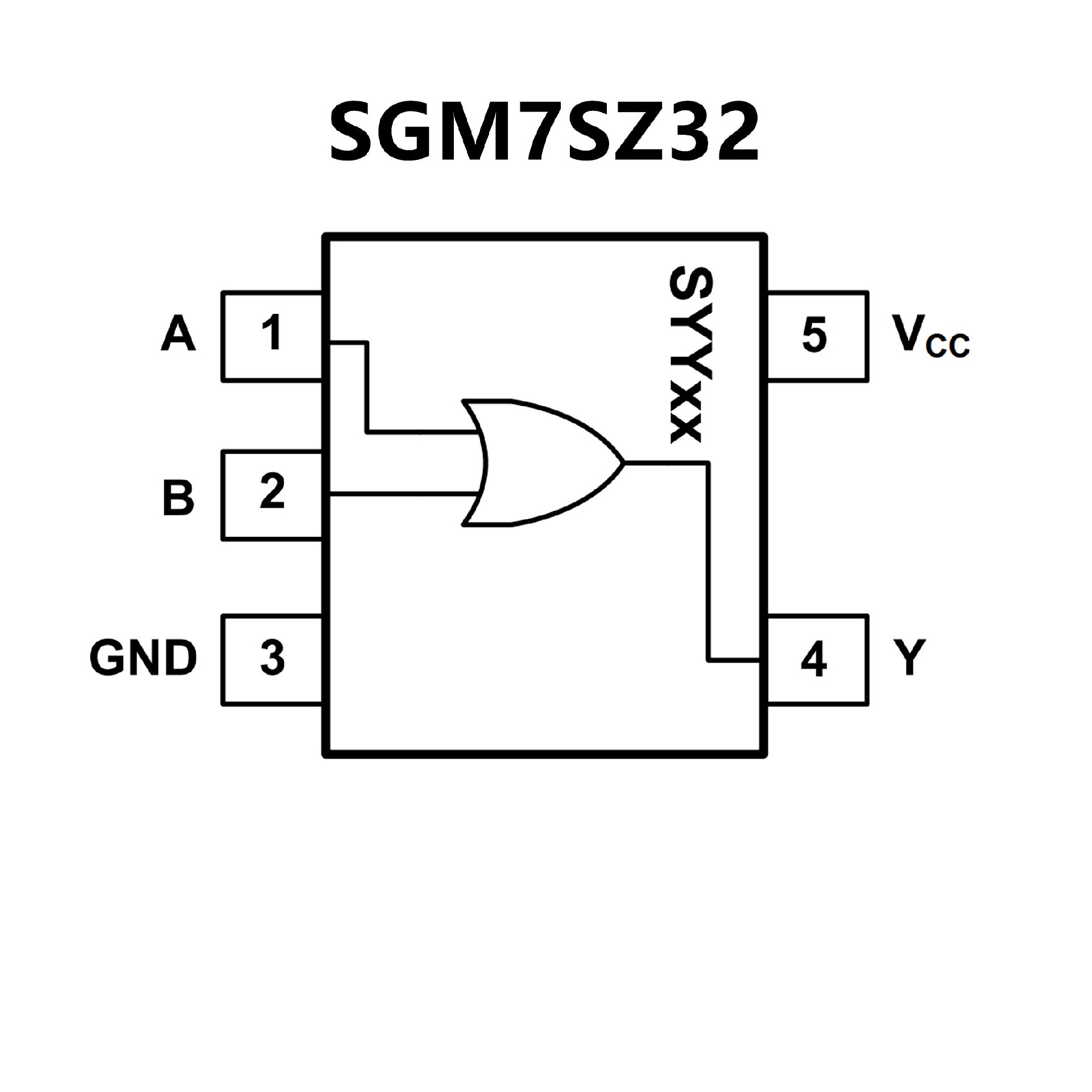

SGM7SZ32.pdf• Ultra-High Speed: tPD = 3.8ns (TYP) into 50pFat VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at VCC = 3.3V
• Power Down High-Impedance Inputs/Output
• Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
• Available in Green SOT-23-5 and SC70-5 Packages

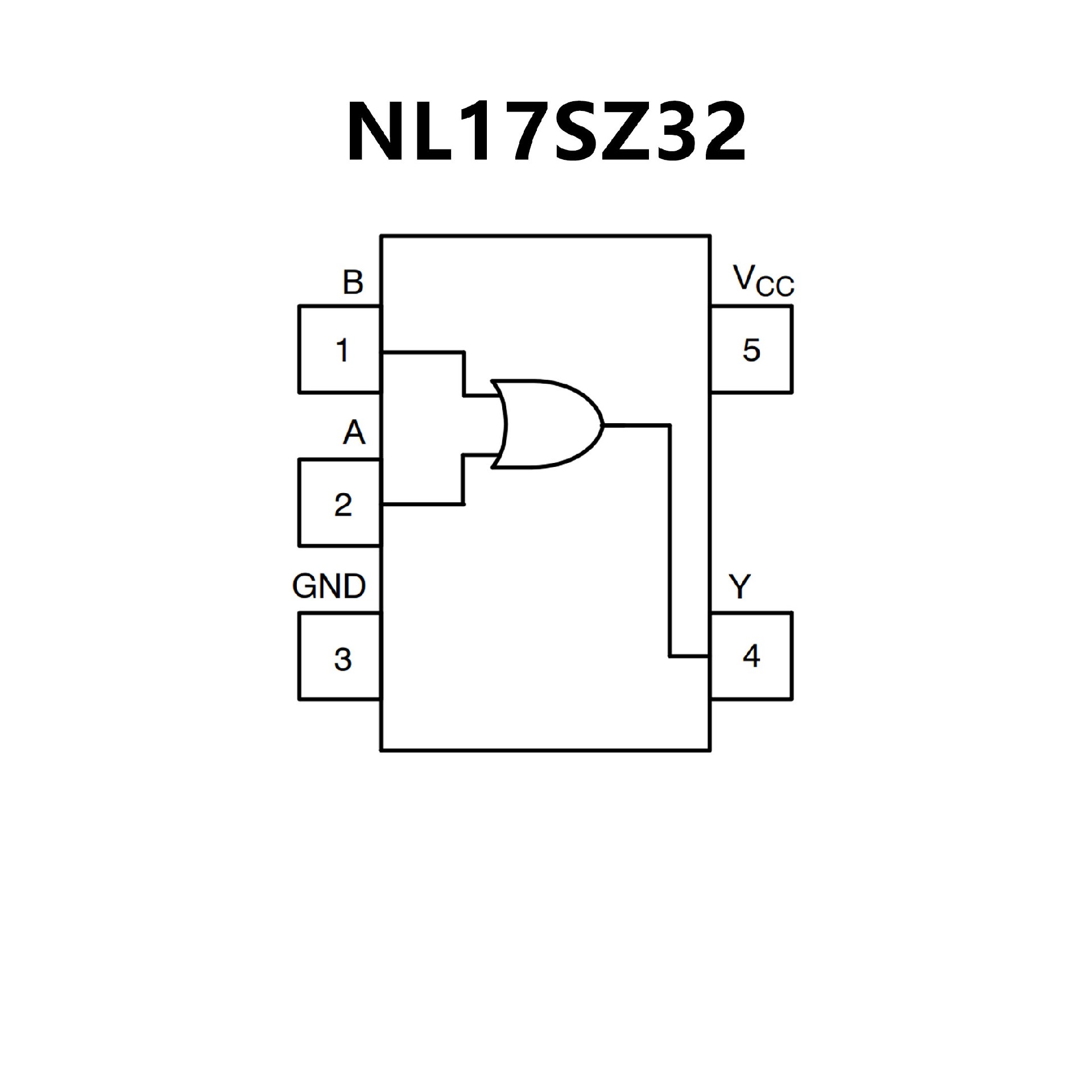

• Designed for 1.65 V to 5.5 V VCC Operation
• 2.4 ns tPD at VCC = 5 V (typ)
• Inputs/Outputs Overvoltage Tolerant up to 5.5 V
• IOFF Supports Partial Power Down Protection
• Source/Sink 24 mA at 3.0 V
• Available in SC−88A, SC−74A, SOT−553,
SOT−953 and UDFN6 Packages
• Chip Complexity < 100 FETs
• NLV Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change
Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR
Free and are RoHS Compliant
