Low-Power, SOT µP Reset Circuit with Capacitor-Adjustable Reset Timeout Delay，Replace NCP303
SGM804
SGM804.pdf
SGM804.pdfFEATURES
• Monitor System Voltages from 1.6V to 5V
• Capacitor-Adjustable Reset Timeout Period
• Low Quiescent Current (3.3μA TYP)
• Push-Pull RESET Output
• Guaranteed RESET Valid to VCC = 1V
• Immune to Short VCC Transients
• Available in Green SOT-23-5 Package
• SGM804 Pin Compatible with NCP300–NCP303,
MC33464/MC33465,S807/S808/S809, RN5VD ,
MAX6424 and MAX6425
PIN CONFIGUTION
CROSS
FEATURES
• NCV Version for Automotive
• AEC-Q100 Qualified
• Quiescent Current of 0.5 uA Typical
• High Accuracy Under Voltage Threshold of 2.0%
• Externally Programmable Time Delay Generator
• Wide Operating Voltage Range of 0.8 V to 10 V
• Complementary or Open Drain Output
• Active Low or Active High Reset
• Pb-Free Packages are Available

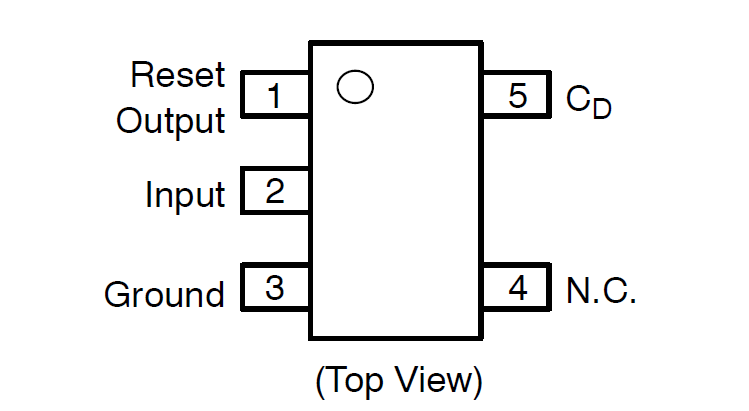

PIN CONFIGUTION
