Nano Power Operational Amplifier, Replace TLV369
SGM8041
SGM8041.pdf
SGM8041.pdfFEATURES
• Low Quiescent Current: 710nA (TYP)
• Rail-to-Rail Input and Output
• Gain-Bandwidth Product: 14.5kHz at VS = 5V (TYP)
• Wide Supply Voltage Range: 1.4V to 5.5V
• Unity Gain Stable
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5, SOIC-8 and MSOP-8
Packages
PIN CONFIGUTION
CROSS
FEATURES
• Cost-Optimized Precision Amplifier nanoPower: 800nA/Ch
• Low Offset Voltage: 400 μV (Typ)
• Rail-to-Rail Input and Output
• Zero-Crossover Distortion
• Low Offset Drift: 0.5 μV/°C (Typ)
• Gain-Bandwidth Product: 12 kHz
• Supply Voltage: 1.8 V to 5.5 V

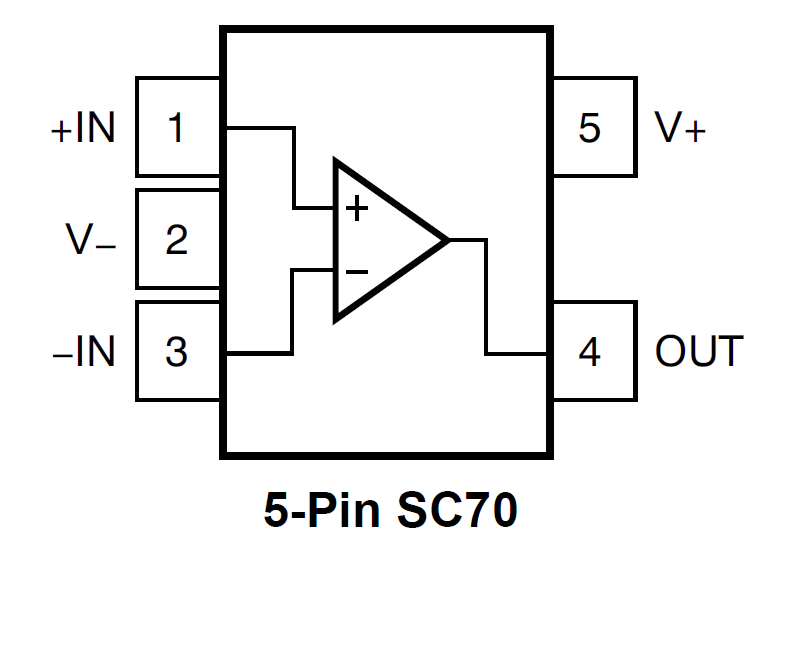

PIN CONFIGUTION
