Nano Power Operational Amplifier, Replace TSU102
SGM8042
SGM8042.pdf
SGM8042.pdfFEATURES
• Low Quiescent Current: 670nA/Amplifier (TYP)
• Rail-to-Rail Input and Output
• Gain-Bandwidth Product: 14.5kHz at VS = 5V (TYP)
• Wide Supply Voltage Range: 1.4V to 5.5V
• Unity Gain Stable
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

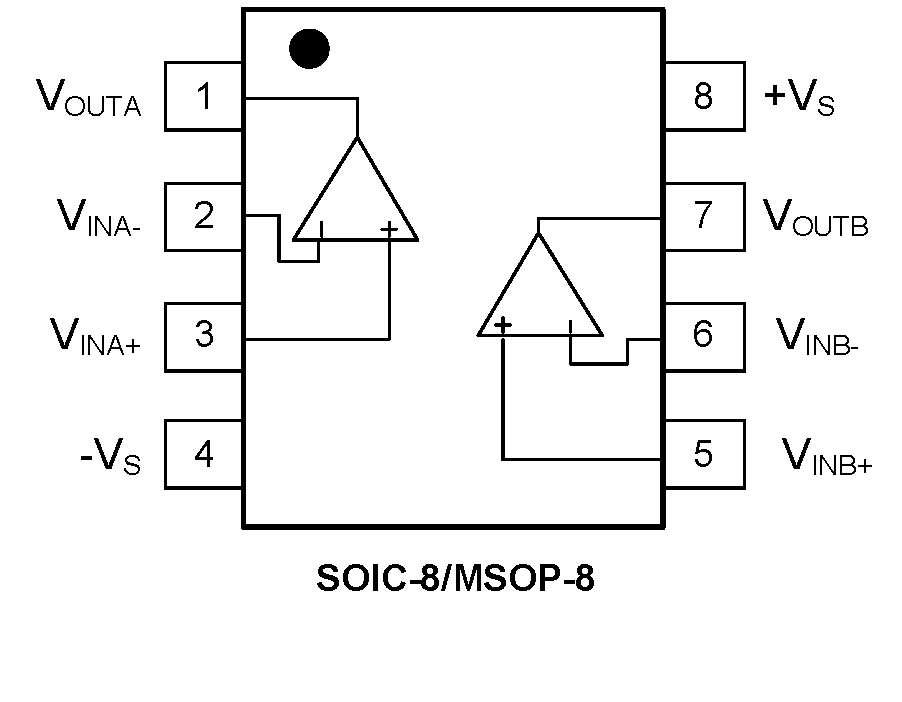

PIN CONFIGUTION
CROSS
FEATURES
• Submicro ampere current consumption:580 nA typ
per channel at 25 °C atVCC = 1.8 V
• Low supply voltage: 1.5 V - 5.5 V
• Unity gain stable
• Rail-to-rail input and output
• Gain bandwidth product: 8 kHz typ
• Low input bias current: 5 pA max at 25 °C
• High tolerance to ESD: 2 kV HBM

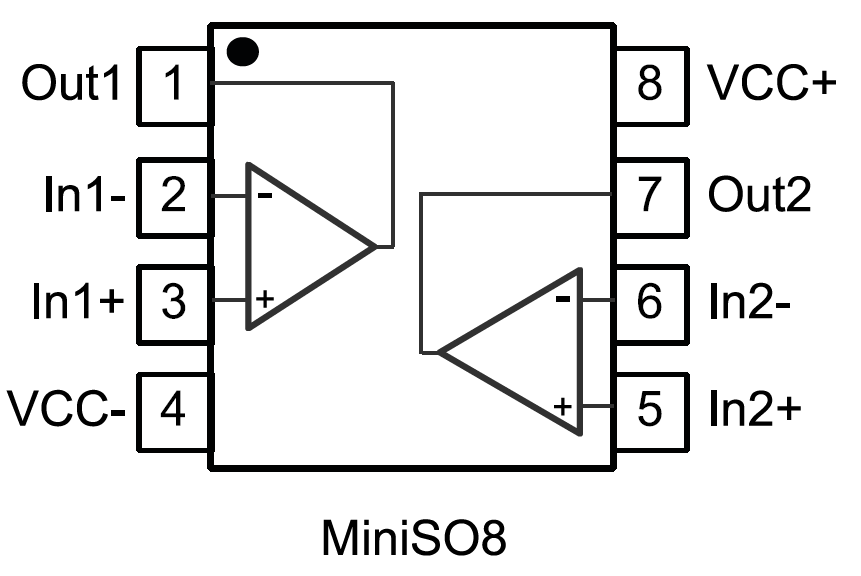

PIN CONFIGUTION
