High Speed Operational Amplifier, Replace OPA2301
SGM80582
SGM80582.pdf
SGM80582.pdfFEATURES
• Unity-Gain Bandwidth: 220MHz
• Wide Bandwidth: 100MHz GBP
• High Slew Rate: 160V/μs
• Low Noise: 7nV/Hz at 1MHz
• Rail-to-Rail Input and Output
• High Output Current: 150mA (TYP)
• Excellent Video Performance:
Diff Gain: 0.01%, Diff Phase: 0.1°
0.1dB Gain Flatness: 30MHz
• Low Input Bias Current: 2pA
• Quiescent Current: 4.5mA/Amplifier (TYP)

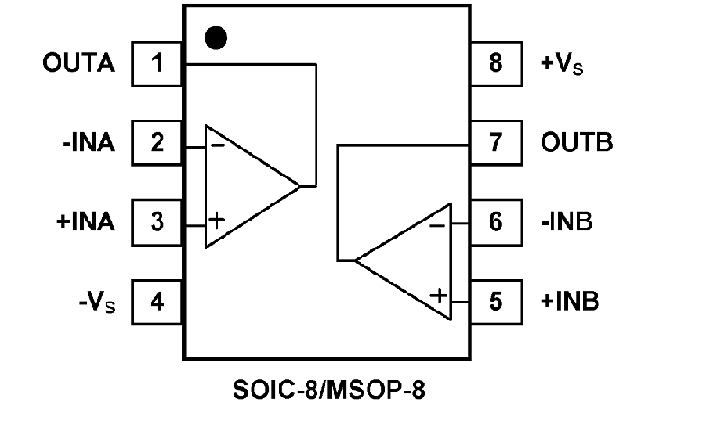

PIN CONFIGUTION
CROSS
FEATURES
• High Bandwidth: 150MHz
• 16-Bit Settling in 150ns
• Low Noise: 3nV/√Hz
• Low Distortion: 0.003%
• Low Power: 9.5mA (typ) on 5.5V
• Shutdown to 5μA
• Unity-Gain Stable
• Excellent Output Swing:
(V+) − 100mV to (V−) + 100mV
• Single Supply: +2.7V to +5.5V
PIN CONFIGUTION
