High Speed Operational Amplifier,SGM8092 Replace AD8092.
FEATURES

• Rail-to-Rail Output

 -2mV Typical VOS

• High Speed

 -350MHz, -3dB Bandwidth (G = +1)

 -265V/µs, Slew Rate

 -32ns Settling Time to 0.1% with 2V Step

• Operates on 2.5V to 5.5V Supplies

• Input Voltage Range = -0.2V to +3.8V with VS = 5V

• Excellent Video Specs (RL = 150Ω, G = +2)

 -Gain Flatness 0.1dB to 70MHz

 -Diff Gain: 0.004%, Diff Phase: 0.08 degree

• Low Power

 -4.3mA/Amplifier Typical Supply Current

• Small Packaging

 -SGM8092 Available in SOIC-8 and MSOP-8




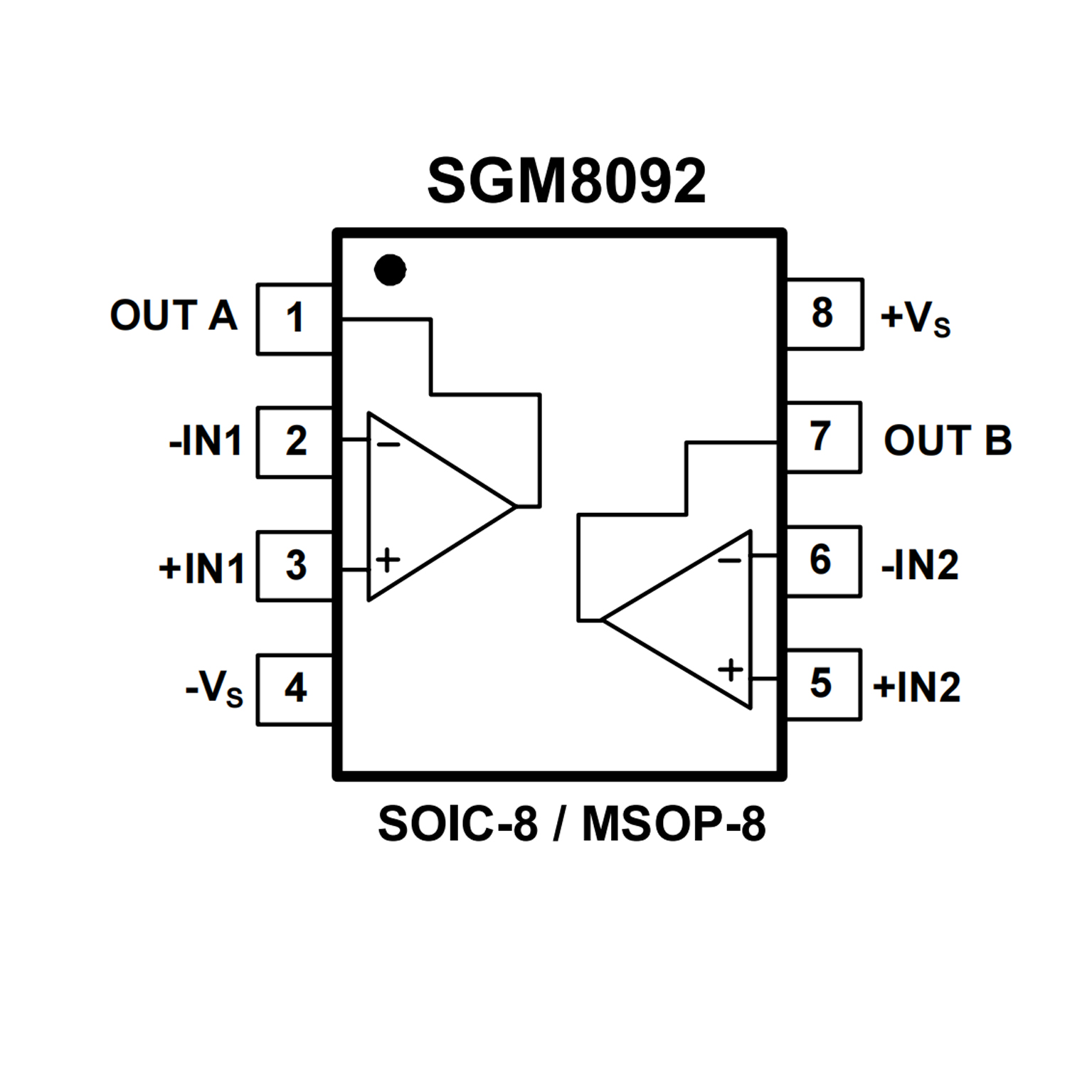

PIN CONFIGUTION
CROSS
AD8092 AD8092.pdf

No.10010

FEATURES

Low cost single (AD8091)  amplifiers

Fully specified at +3 V, +5 V, and ±5 V supplies

Single-supply operation

 -Output swings to within 25 mV of either rail

High speed and fast settling on 5 V

 -110 MHz, −3 dB bandwidth (G = +1)

 -145 V/μs slew rate

 -50 ns settling time to 0.1%

Good video specifications (G = +2)

 -Gain flatness of 0.1 dB to 20 MHz; RL = 150 Ω

 -0.03% differential gain error; RL = 1 kΩ

 -0.03%differential phase error; RL = 1 kΩ

Low distortion

 -−80 dBc total harmonic @ 1 MHz; RL = 100 Ω

Outstanding load drive capability

 -Drives 45 mA, 0.5 V from supply rails

 -Drives 50 pF capacitive load (G = +1)

Low power of 4.4 mA per amplifier

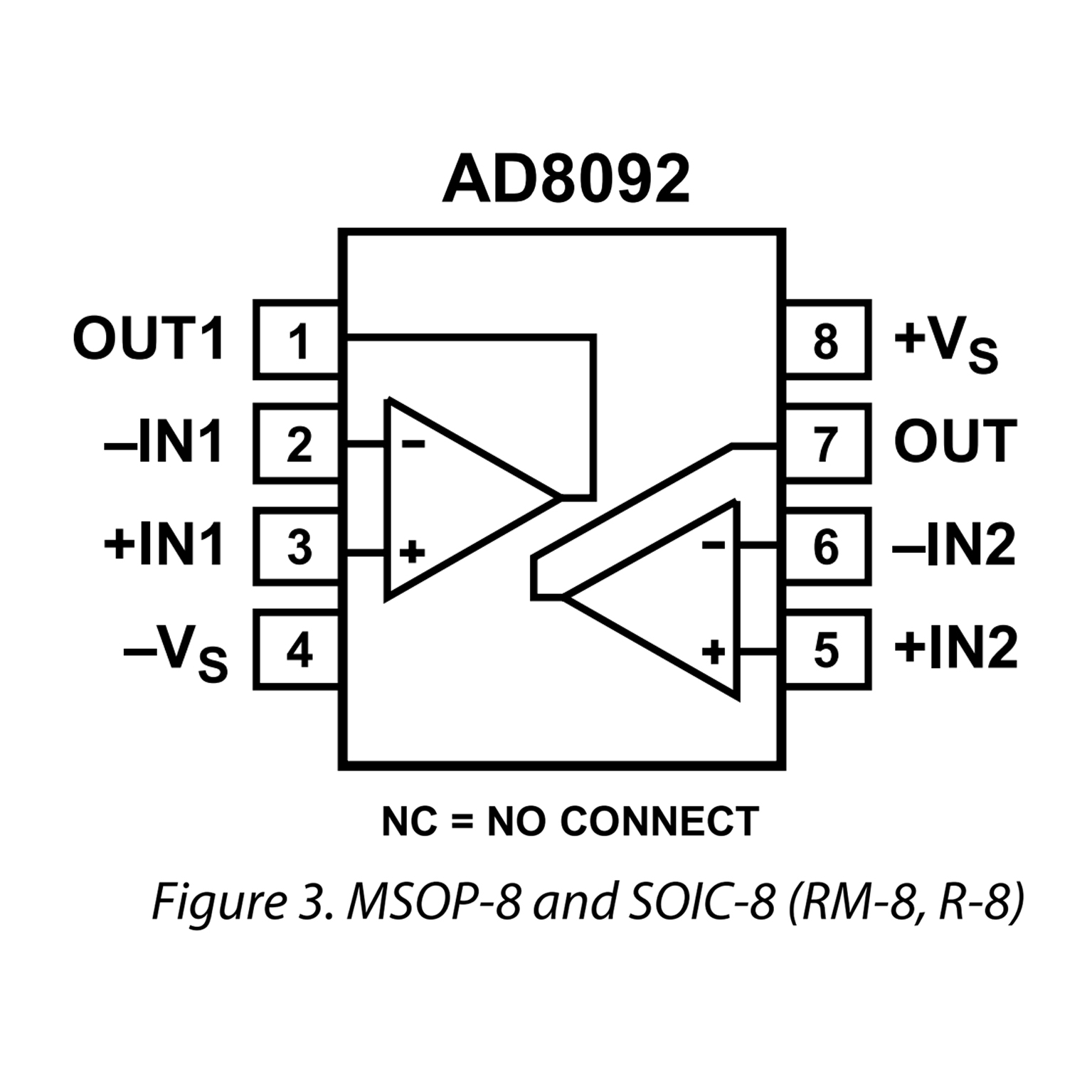

PIN CONFIGUTION
