• Superior Sound Quality

• Low Offset Voltage: ±350μV (MAX)

• Ultra Low Noise: 1.6nV/Hz at 1kHz

• Ultra Low Distortion: 0.00002% at 1kHz

• High Slew Rate: 16V/μs

• Gain-Bandwidth Product: 16MHz (G = +1)

• High Open-Loop Gain: 140dB

• Unity-Gain Stable

• Low Quiescent Current: 3.8mA/Amplifier

• Rail-to-Rail Output

• Support Single or Dual Power Supplies:

  3.6V to 36V or ±1.8V to ±18V

• -40℃ to +85℃ Operating Temperature Range

• Small Packaging:

  SGM8261-1 Available in a Green SOIC-8 Package

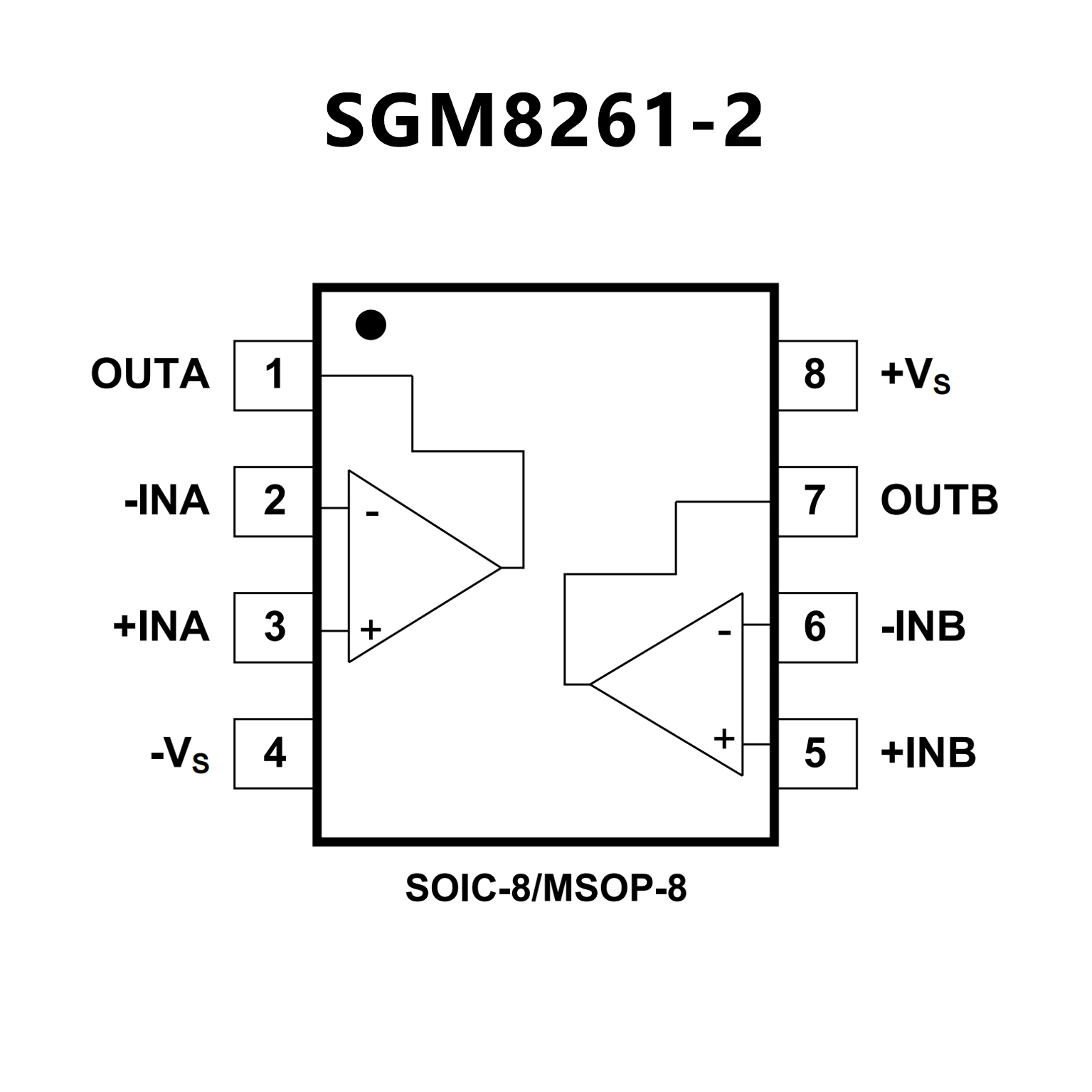

  SGM8261-2 Available in Green SOIC-8, MSOP-8

  and TDFN-3×3-8BL Packages
