High precision Operational Amplifier,SGM8294 1-Replace OPA4170.
SGM8294
SGM8294.pdf
SGM8294.pdfFEATURES
• Low Power Consumption: 150µA/Amplifier
• Low Offset Voltage: 1.5mV (MAX)
• Wide Input Common Mode Voltage Range
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Rail-to-Rail Output
• High Input Impedance
• High Slew Rate: 7V/µs
• Small Packaging:
SGM8294 Available in Green TSSOP-14 and SOIC-14

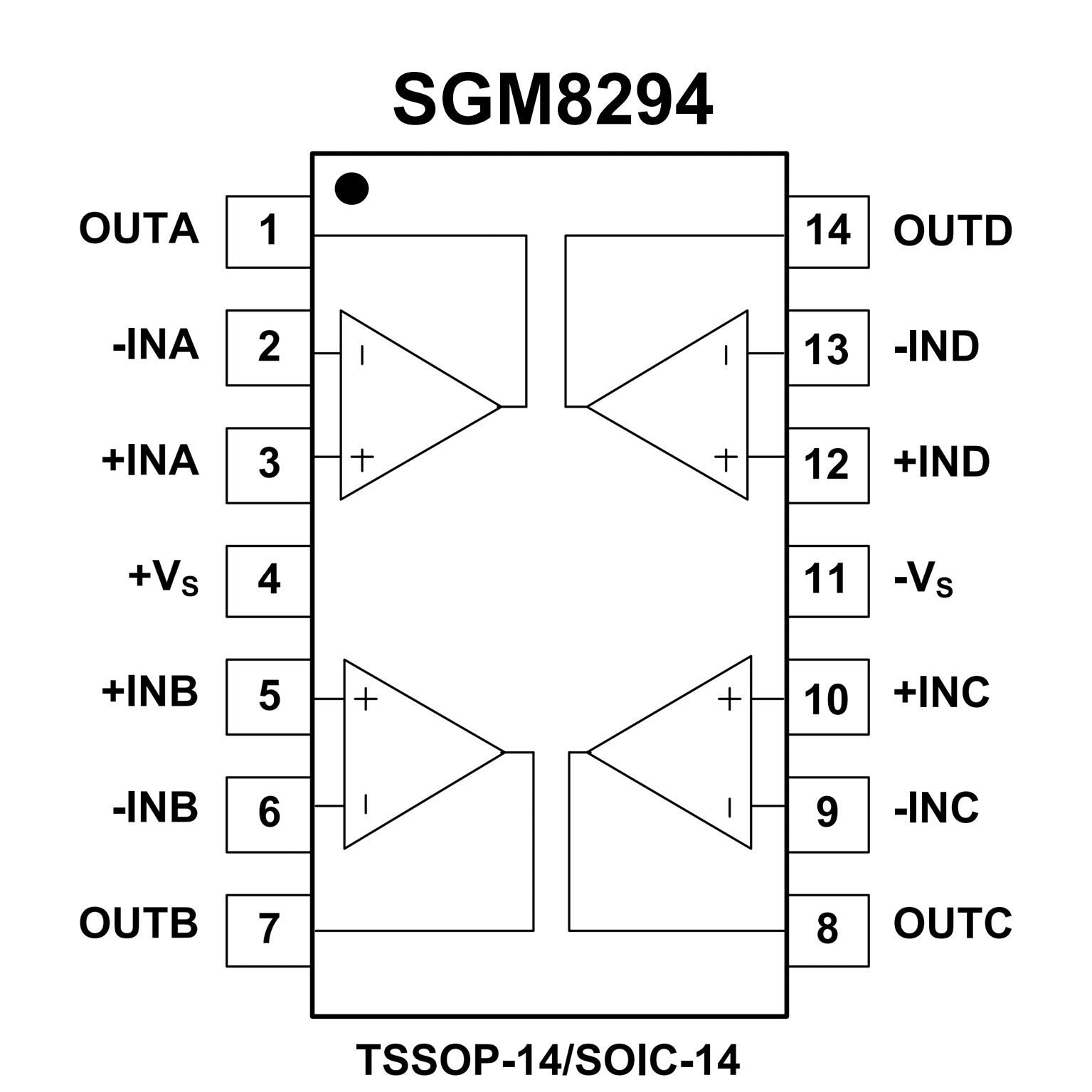

PIN CONFIGUTION
CROSS
FEATURES
• Supply Range: +2.7V to +36V, ±1.35V to ±18V
• Low Noise: 19nV/√Hz
• RFI Filtered Inputs
• Input Range Includes the Negative Supply
• Input Range Operates to Positive Supply
• Rail-to-Rail Output
• Gain Bandwidth: 1.2MHz
• Low Quiescent Current: 110µA per Amplifier
• High Common-Mode Rejection: 120dB
• Low Bias Current: 15pA (max)
• Industry-Standard Packages:
8-Pin SOIC
8-Pin MSOP
14-Pin TSSOP
• microPackages:
Single in 5-Pin SOT553
Dual in 8-Pin VSSOP

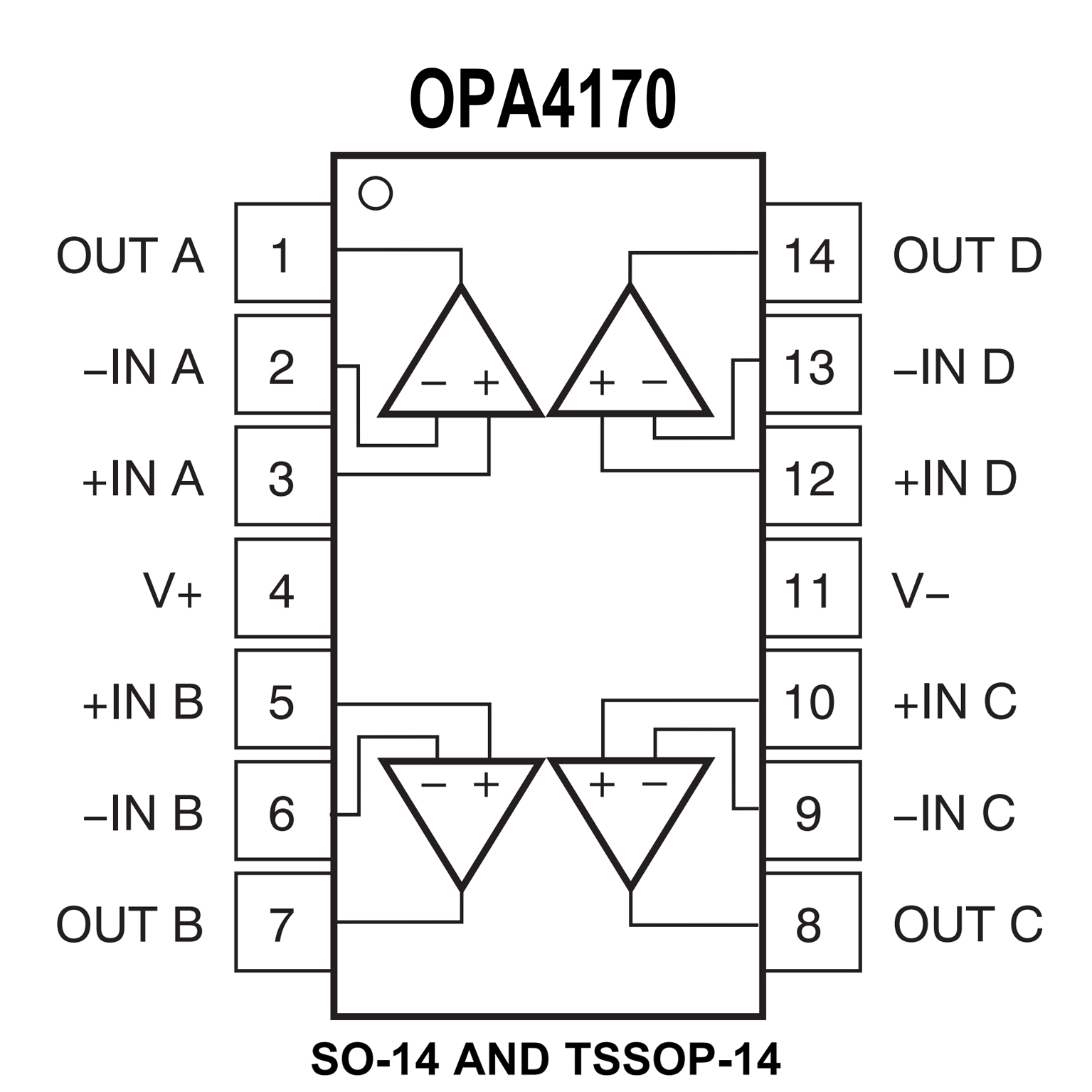

PIN CONFIGUTION
