Low Noise Operational Amplifier, SGM8295-1 Replace OPA172.
SGM8295-1
SGM8295-1.pdf
SGM8295-1.pdfFEATURES
• Low Noise: 4.5nV/Hz
• Rail-to-Rail Output
• Very Low Offset Voltage: 250μV (MAX)
• Low Bias Current: ±1nA (TYP)
• High Gain-Bandwidth Product: 9MHz
• High Slew Rate: 8V/μs
• High Open-Loop Gain: 130dB at VS = ±15V
• High PSRR: 145dB
• Settling Time to 0.1% with 1V Step: 1μs
• Operating Voltage Range: 3.6V to 36V or ±1.8V to ±18V
• Low Supply Current: 1.5mA/Amplifier (TYP)

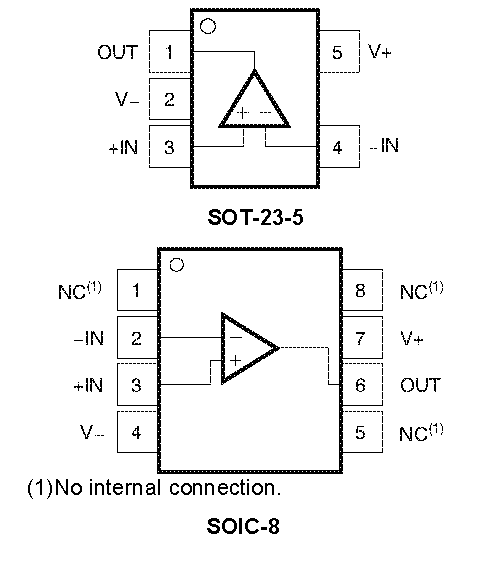

PIN CONFIGUTION
CROSS
FEATURES
• Wide Supply Range: +4.5V to +36V, ±2.25V to ±18V
• Low Offset Voltage: ±0.2mV
• Low Offset Drift: ±0.3μV/°C
• Gain Bandwidth: 10MHz
• Low Input Bias Current: ±8pA
• Low Quiescent Current: 1.6 mA per Amplifier
• Low Noise: 7 nV/√Hz
• EMI and RFI Filtered Inputs
• Input Range Includes the Negative Supply
• Input Range Operates to Positive Supply
• Rail-to-Rail Output
PIN CONFIGUTION
