High Precision Operational Amplifier, Replace LMV844
SGM8594
SGM8594.pdf
SGM8594.pdfFEATURES
• Low Offset Voltage: 150μV (TYP)
• Rail-to-Rail Input and Output Swing
• 2.5V to 5.5V Single Supply Operation
• Voltage Gain: 135dB (TYP) at +5V
• PSRR: 115dB (TYP)
• EMIRR at 1.8GHz: 118dB
• CMRR: 92dB (TYP)
• Low Input Bias Current: 60pA
• Low Supply Current: 430μA/Channel
• Overload Recovery Time: 30μs (at VS = +5V)
• No External Capacitors Required

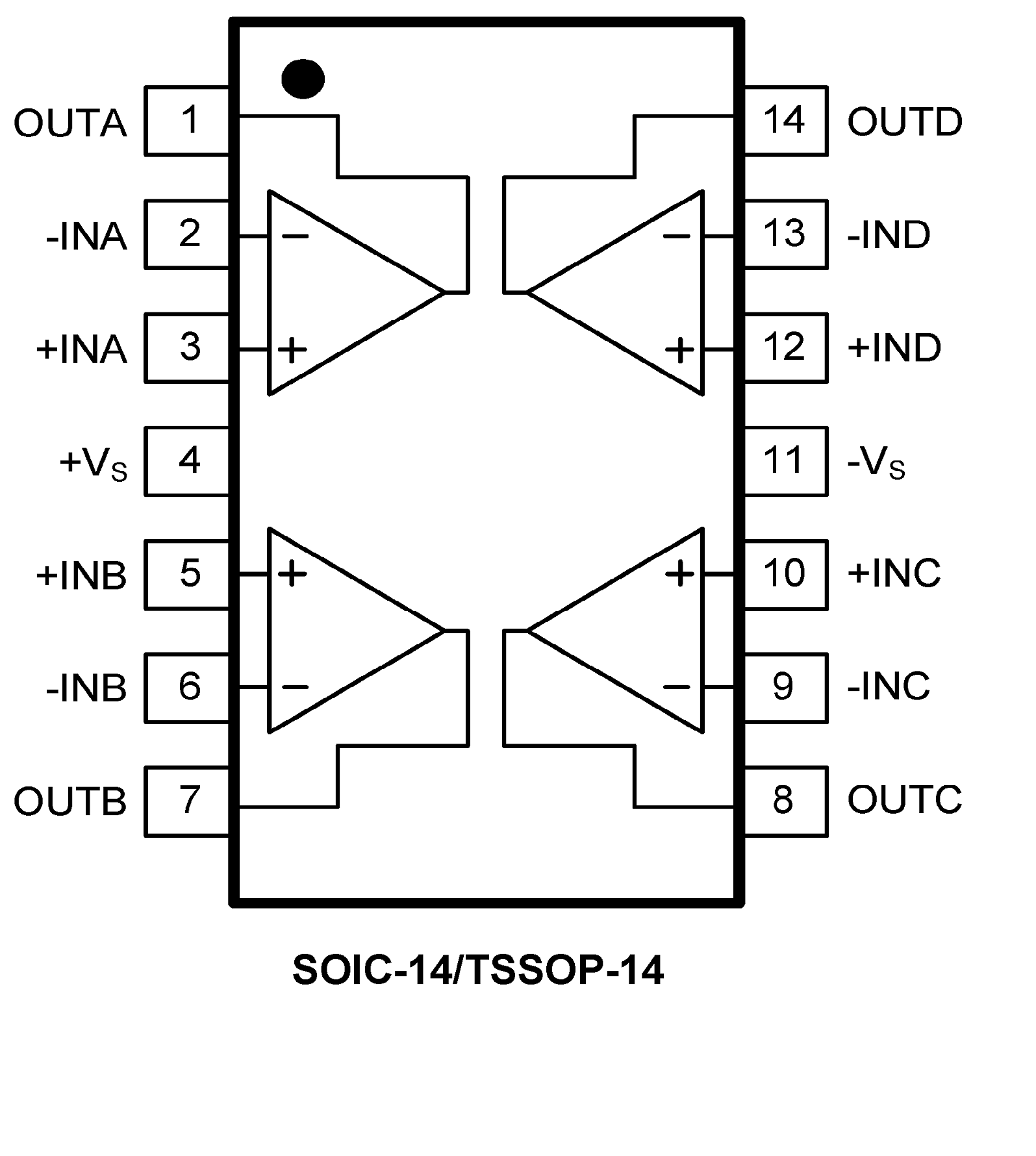

PIN CONFIGUTION
CROSS
FEATURES
• Supply voltage range 2.7V to 12V
• Guaranteed at 3.3V, 5V and ±5V
• Low supply current 1mA per channel
• Unity gain bandwidth 4.5MHz
• Open loop gain 133dB
• Input offset voltage 500μV max
• Input bias current 0.3pA
• CMRR 112dB
• Input voltage noise 20nV/√Hz voltage
• Rail-to-Rail input, Rail-to-Rail output

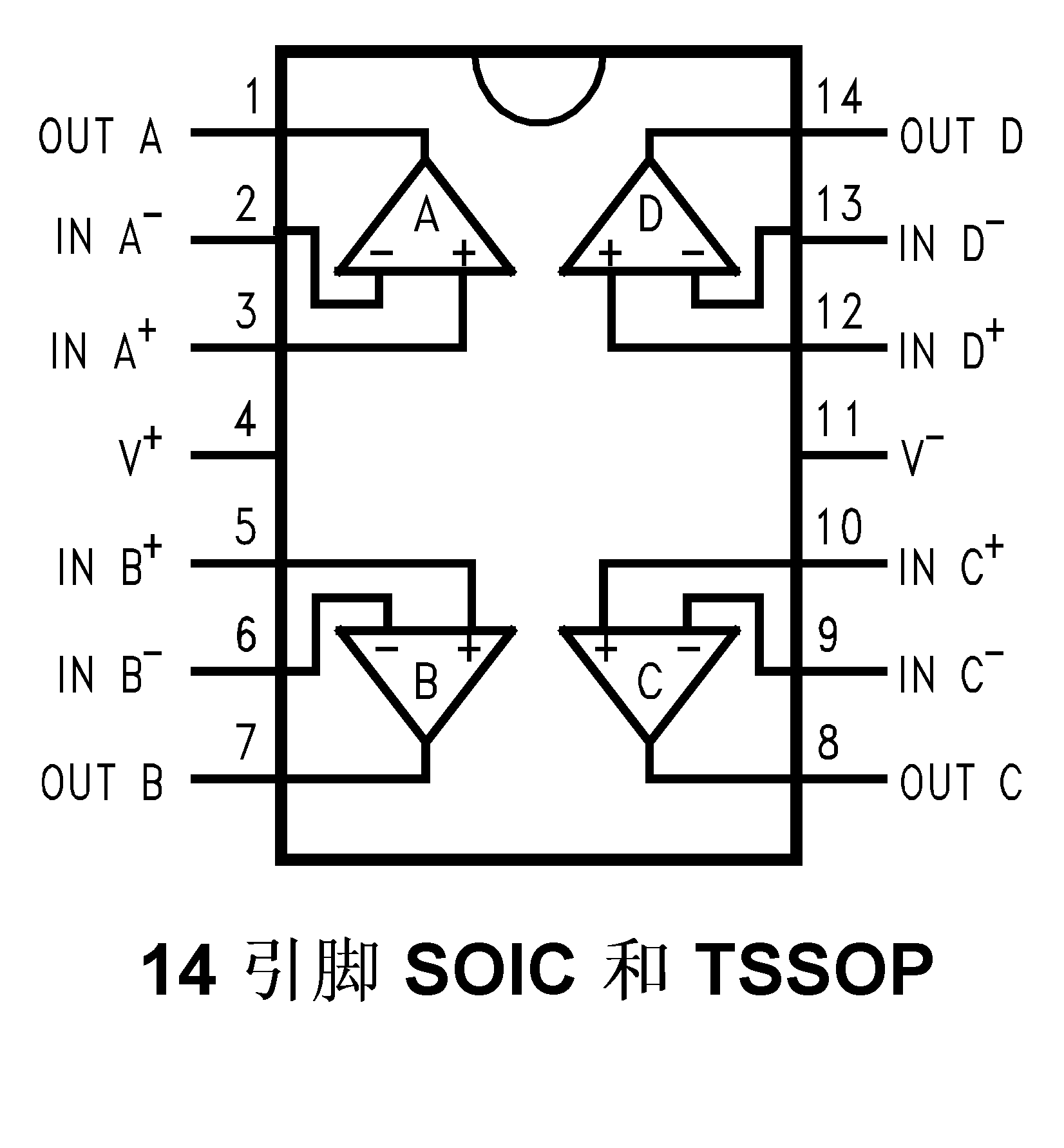

PIN CONFIGUTION
