• 232mA Output Drive Capability

• Rail-to-Rail Output

• Low Input Offset Voltage: 10μV (MAX)

• Low Input Offset Voltage Drift: 17nV/℃ (TYP)

• Low Noise: 22nV/ Hz at 1kHz

• Over-Temperature Protection

• Supply Voltage Range: 2.7V to 5.5V

• Quiescent Supply Current:

  1.2mA/Amplifier (TYP)

  0.1μA Shutdown Current for SGM8604-3/5 (TYP)

• Gain-Bandwidth Product: 15MHz

• High Slew Rate: 7V/μs

• Voltage Gain (RL = 2kΩ): 145dB

• Power Supply Rejection Ratio: 127dB

• No Phase Reversal for Overdriven Inputs

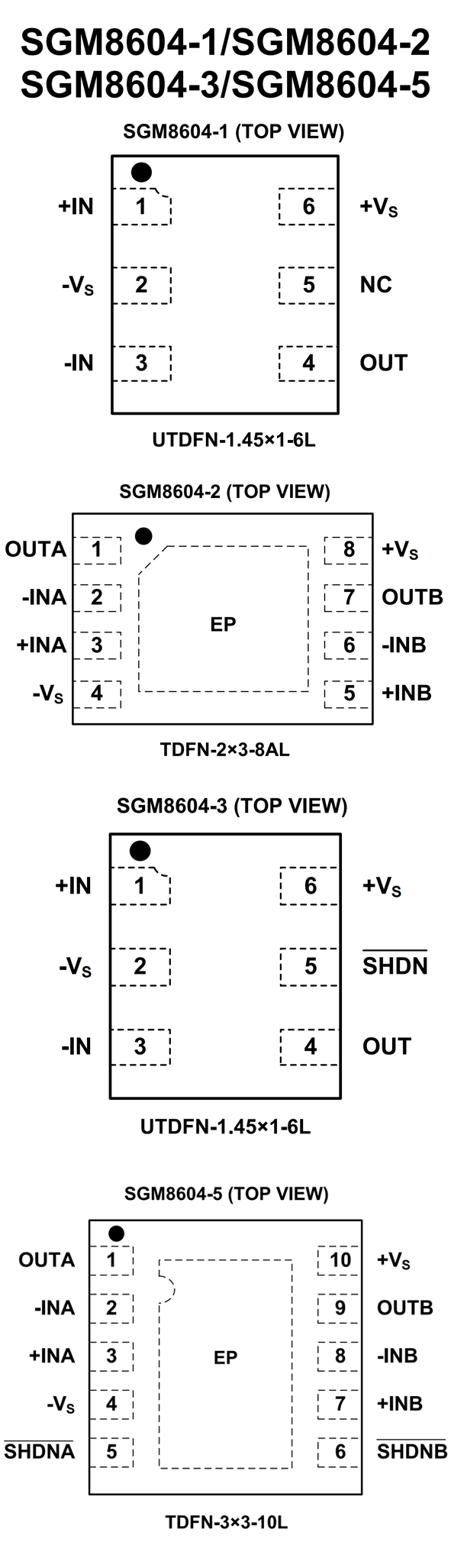

• Small Packaging:

SGM8604-1 Available in a Green UTDFN-1.45×1-6L

SGM8604-2 Available in a Green TDFN-2×3-8AL

SGM8604-3 Available in a Green UTDFN-1.45×1-6L

SGM8604-5 Available in a Green TDFN-3×3-10L
